DGET-500L
DGET
8438400000

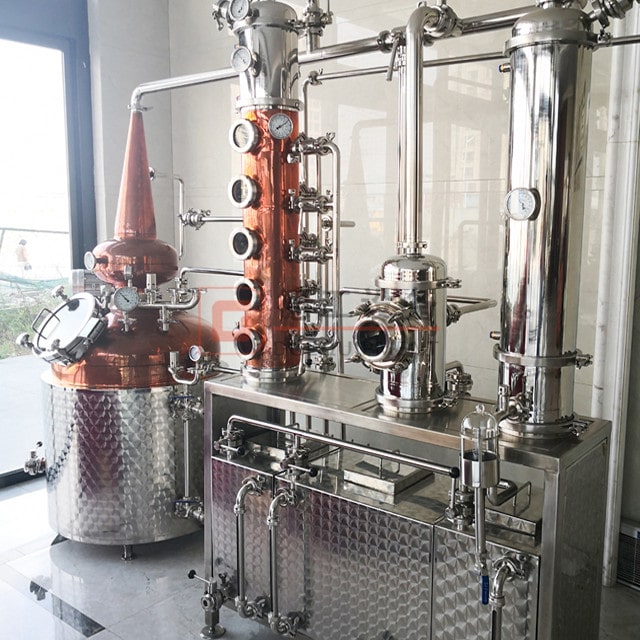

Distillation equipment is the result of continuous innovating and developing based on our experience of brewery equipment manufacturing. DEGONG distillation equipment can be used to make fruit wine, whiskey, vodka, gin, tequila, rum, brandy and other distilled spirits. All systems have the characteristics of small and medium size, automatic control, easy operation and beautiful outlook. The equipment is suitable for small and medium sized workshops, hotels etc.
Features:
Working Capacity:200L 300L 500L 1000L
Upper copper inner pot with SUS304 jacket & PU foam insulation
Steam heating without control box
Power consumption: 50kg/h 100kg/h steam heating (or electric heaters)
Agitator: 1.1kw motor, explosion proof with UL & CSA & CE approved
Copper helemt: mushroom shape (also have other shape for choice)
Glass Gin basket: inner with copper basket
SUS304 Dephlegmator : shell and tube type
SUS304 Condenser : shell and tube type
SUS304 Parrot with glass proof
SUS304 CIP system: CIP ball & no-return ball, CIP pipe, CIP pump
Bypass system: from pot to condenser / from pot to gin basket to condenser / from pot to column to condenser. etc.
1000 model double effect concentrated rectification parameters | ||||
Name | Double effect concentrated rectification |
Capacity of separator |
1000L | |
Classification of container | None | Quantity | 1 | |
Manufacturing standard | NB/150-2010《stationary type steel atmospheric container》 NB/150-2010《shell-and-tube heat exchanger》 | |||
Technical specifications | Qty | |||
Main component |
1. Still : | Working capacity:1000L; fully copper for interior shell, thickness is 5mm. Steam jacket heating method, exterior shell is 2mm fish scale plate; components on the still: fully sight glass, thermometer, safety gas discharging device, CIP ball, stirring device, lamp, feeding port etc... |
1 set
| |
2. Copper head： | Copper head: thickness 3mm, with sight glass, CIP balls, thermometer, flange connection to still; | |||
3.First fractionating tower： | The fisrt column: 7 floors of copper column (8 pieces of sight glass) thickness is 3mm. With backflow device, with copper dephlegmator and stainless steel fish scale plate base tank ( thickness 3mm) | |||
4.Second fractionating tower： | The second column: 7 floors of copper column (8 pieces of sight glass) thickness is 3mm. With backflow device, with copper dephlegmator and stainless steel fish scale plate base tank ( thickness 3mm) | |||
5. Condenser： | The third column: Stainless steel condenser, the shell is stainless steel fish scale plate and stainless steel fish scale bash tank ( thickness is 3 mm) | |||
If you have interest,welcome to contact me freely
