DGET-2000L
DGET
8438400000

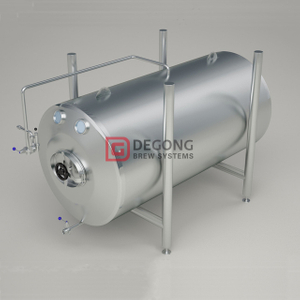

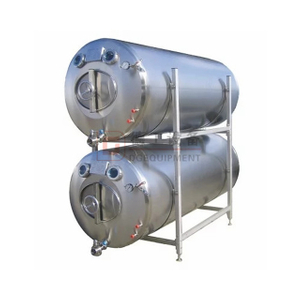

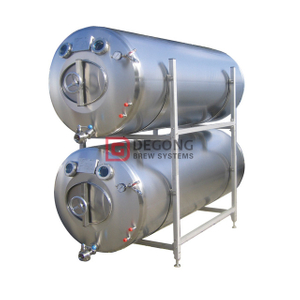

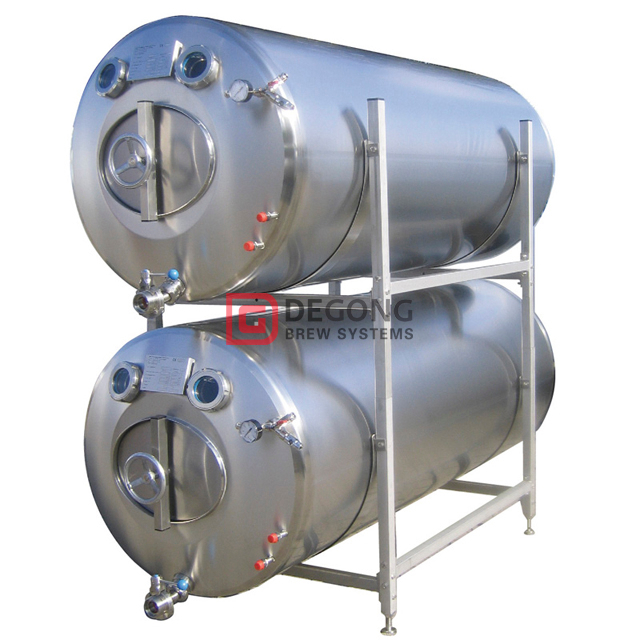

Horizontal bright tanks/brite tank is usually put in the place where the space is limited in height. For save some space the tanks can be stackable. And usually you can see it in European due to old building and height issues.
2000L insulated(non-insulated) horizontal Beer Brite Tank Beer Serving Tank for beer storage / clear
| Horizontal Brite Tank's introduction |
Brite beer tanks are often also called serving tanks, tax determination tanks or clear beer tanks (=CBTs), bright beer tanks (=BBTs), maturation or conditioning tanks. We know that bright beer tank is the last vessel that beer comes in contact with to become a beer that is perfectly matured, clarified and ready to be packaged and served.Depending on their application , the beer serving tanks can be glycol jacketed or can be located in a cold room.
Function of the bright beer tank is gaining its importance especially in breweries.The beer is left to calm down for several hours or days without further intervention . After increased pressure in the tank, it is subsequently tapped into shipping containers into the contra-pressure, to avoid the loss of the carbon dioxide from the beverage.
| Horizontal brite tank's feature |
Types of brite tank
It is necessary to note that for the brewery cellar with single-shell tanks it is needed to create a cooling box, a room with very good insulation of walls and ceiling and with a refrigerator door. The operating costs of cooling are particularly during the summer months, possibly year-round in tropical areas, significantly higher than the lager cellar with insulated tanks cooled by liquid. These increased costs to the building and operation usually outweigh the savings from buying cheaper technology brewery.
Horizontal Serving tanks advantage and disadvantage
The advantage is saving place. In the same area we can place a greater number of tanks, if they are arranged in the battery, i.e. several rows one above another. The disadvantage is the difficult cleaning and sanitation of the tanks stored too low or too high. Battery tanks are difficult to clean from outside – in inaccessible surfaces of tanks organic contaminants may accumulate and contaminate the produced beer.
Properties wider tanks with small length of cylindrical part:
Smaller heat transfer area, lower cooling effect
They are less demanding in terms of height space.
Properties slender tanks with large height of cylindrical part:
Larger heat transfer area, the greater the cooling effect
They are more demanding in terms of height space
| Main congiruation of horizontal brite tank |
- Shell: SUS304 full welded TH=3mm
-100% TIG welding with pure argon gas shield
-Interior Finish: Overall polishing to 0.2~0.4 μm without dead corner
-Glycol Jacket: Dimpled plate on side
-CIP arm with 360° coverage CIP spraying ball
-Mechanical relief valve 2 bar on CIP arm
-Shockproof pressure gauge on CIP arm
-Rotating racking arm and port on cone with butterfly valve
-Tri clamp discharge arm with butterfly valve
-Thermowell for high accuracy temperature sensor
-Level tube
-Carbonation port and stone
| Service |
Pre-Sales Service
1. Free of making offers, craft and technical guidance.
2. We can provide company's qualification certification and the drawings.
3. We can also make customized products according to customer's needs.
After-Sales Service
1. We provide long-term after-sale service.
2. Owing to the quotation of our equipment is FOB price which excluded charges of door-to-door service. Thus, if necessary, we can appoint our technician to debug the machine with air ticket, visa, accommodation and labor cost provided by your party. Or you can send your technician to our company to learn techniques.
3. Meanwhile, you can call or e-mail to consult any relevant questions since we have a special line of after-sale service. Or you can communicate online and solve the problems.
Guarantees:
1.All the materials touching with beer directly are all top quality food grade stainless steel
2.We use the first class valves and manhole for our equipments
3.All the materials I use is nonmagnetic.
4.The thickness of the material exact fit in with what shown in our quotation sheet
5.Most importantly,Our staff is always available for your needs and questions.
Advantage:
1.Different specifications meet different need of
customers,for example,several types of heating devices for your choice: dimple jacket / inner pipe heating machine(optional)
2.Advanced technology can saving energy and running cost,for example,our control panel is PLC.
3.High performance and stability with low maintenance cost
4.Custom built, meet your needs exactly,that is to say,you just need to tell us your brewery's real condition,then our team will design suitable tanks suitable to your brewery.

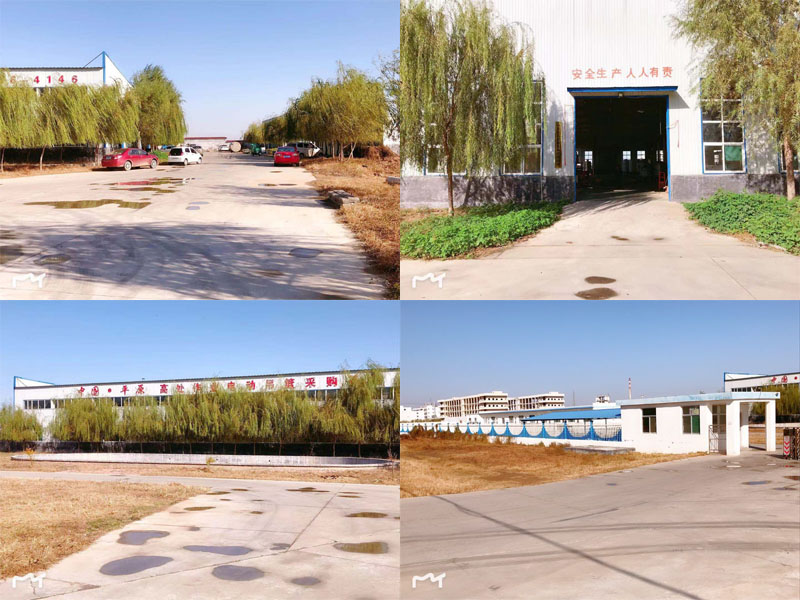

| Our Company |
| Contact us |
