DGET-10HL
DGET
8438400000
Horizontal lagering tank
Horizontal lagering tank
After an initial fermentation, beer may be conditioned in lagering tanks where it will be stored at near freezing temperatures for 1-6 months. The beer is no longer exposed to the "trub" that has settled to the bottom of the primary fermenter. The lagering process will help prevent the formation of unwanted flavors by cleaning up various chemicals, acids and compounds.
| Horizontal lagering tank /brite beer tank characteristics |
Material:SUS316 or SUS304
Interior Shell: 2B/mirror plate; TH=3mm
Exterior Shell:2B/mirror/brushed plate; TH=2mm
Dish head,cylinder
Dimple jacket or dribbling cooling ,PU insulation,TH=80-100mm
Withstand voltage of tank is 3bar;
Tank equip with lifting leg,electromagnetic valve or mechanical pressure regulating valve,manhole(top or side),
sample valve,temperature sensor, adjustable leg,beer mouth, discharging outlet,coolant inlet and outlet,
CIP inlet and outlet,360 degree cleaning ball, pressure gauge.
Option:Co2 filling device with titanium rod distributor;level gauge
Largering tank side manhole
| Features of horizontal lagering tank |
◆100% TIG welding with pure argon gas shield；
◆The pipe mouth stretch technology and automatic tank welding equipment ensure the tank with no dead angle,
no material residue and easy to clean;
◆Tank polishing precision ≤0.4um,no distortion, no scratches;
◆Tanks and cooling devices are tested for water pressure;
◆3D technology application make customers understand tank from different angles.

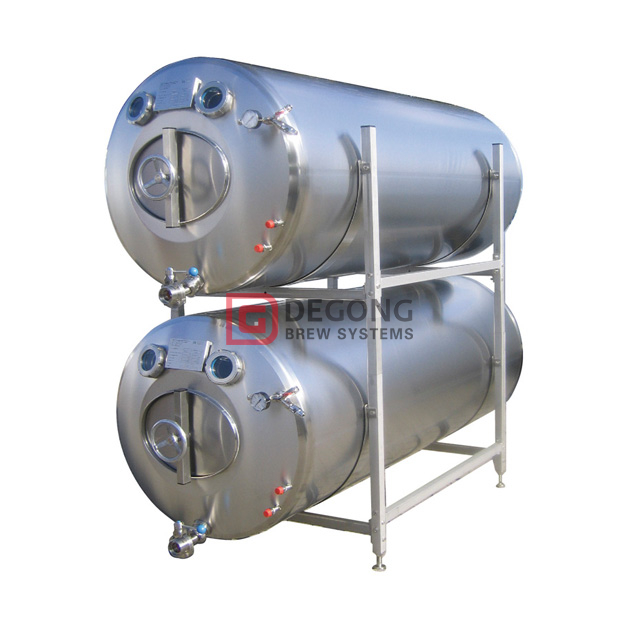

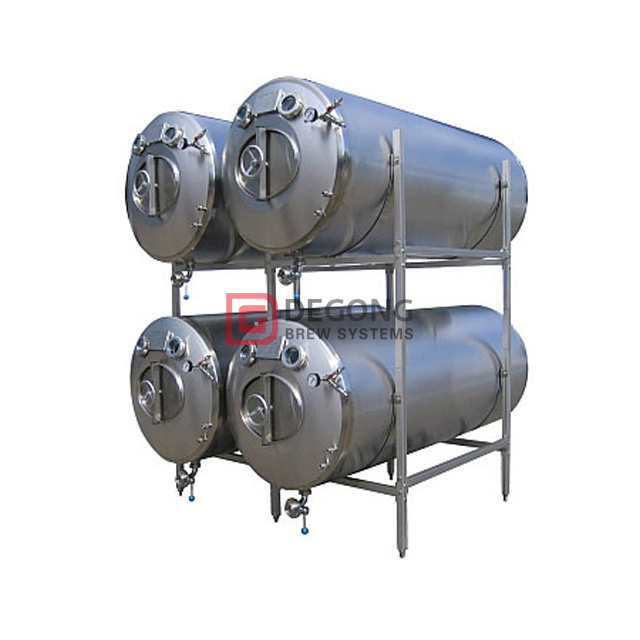

Horizontal lagering tanks with stand
| Company advantages |
Degong Equipment Technology Co., Ltd. specialize in designing, researching and manufacturing the brewery equipment, beer filling line and subsidiary equipment.
Our equipments have been CE ISO TUV UL certified. We are the only one who has got TUV certificate amongst all suppliers in north of China.
As a beer brewery equipment, craft beer brewing and brewhouse manufacturer/ supplier from China, we offering high-cost performance beer brewery equipment and craft beer brewing for hotel, restaurant, beer pub and beer plant.
Cerification
Looking to expand, or get into beer brewery equipment business? Then check out us.
Contact me
