DGET-1000L
DGET
8438400000
Horizontal Beer Tanks |
Draught beer tanks, Draft beer tanks, Beer tapping tanks,Horizontal beer tanks – these are the most common terms which involve the same class of special pressure vessels which are designed for beer storage and beer tapping straight from the tanks in restaurants. Beer is drawing out of lager tanks or fermentatioon and maturation cylindrical-conical tanks straight into the draught beer tanks. If draught beer tanks are placed out of the brewery then the draft beer tanks are filled out of tankers which deliver beer from breweries to restaurants.
The offer for draft beer tanks
1.According to volume
500L
1000L
Other volumes according to the requirements of customer
2.According to surface
Stainless steel
Copper
3.According to jacketing system
Mono-jacket (for placing in a cooled box in a cellar or in a glass box in restaurants)
Double-jacket – cooled (for placing in restaurants)
Brewery Equipment fermenting tanks maturing tanks
Standard Tank Equipment
Safety valve – It is there to protect the tank from the overpressure with higher pressure then for which pressure the tank is produced or certificated. The safety overpressure valve is often in combination with safety underpressure valve which protect the tank from the breaking down because of underpressure in the tank (for example by the drawing down the tank‘s capacity with the pump unit).
Elliptic Manway – A special lockable door on the side of the tank or on the top bottom which is used for looking over the inside of the tank, for assembling and disassembling of the inner armatures, for adding some ingredients, etc. The door opens inside the tank, after tilting the tank in the horizontal position, it is possible to open the door outsider. A part of the manway is elastic or silicon sealing, closing screws and a special hinge with dumper arm. The producer guarantees a pressure resistance of the manway and the door at least at the same or higher resistance which the draught beer tank has.
Supporting frame – We supply supporting frames for horizontal draught beer tanks in different variations. The horizontal draught beer tanks could be ordered in blocks, for example 2 rows above each other. According to the required set and to disposintional space, the supporting frame is designed individually.

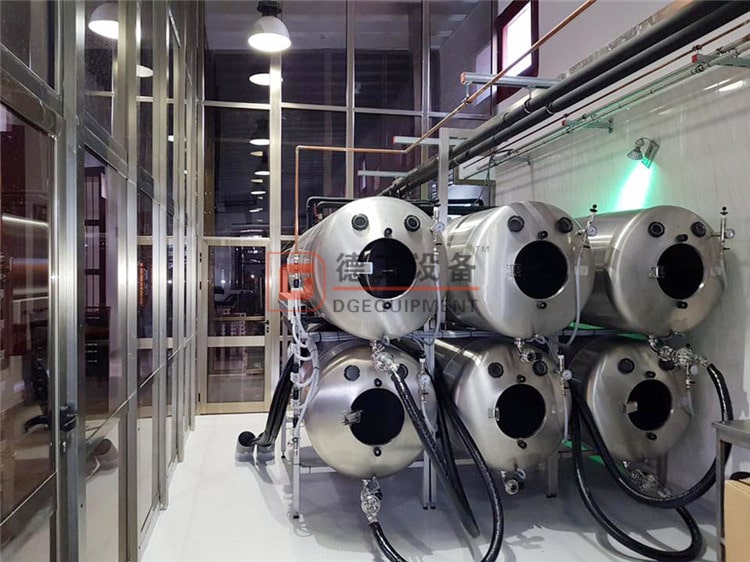

Horizontal beer tanks with supporting frame
| Contact Alice today |
Microbrewing, craft brewing or commercial large brewhouses, we have the equipment, supplies & install engineers. Looking to find bottling lines and tanks for sale we have that covered.
