| Thickness of material (mm): | |
|---|---|
| Material: | |
| Quantity: | |
DGET-10HL
DGET
8438400000
| Fermenting vessels features |
Our fermentation tanks primarily act as a holding tank while the wort ferments. These tanks are made to your specifications.
Customized beer brewery fermenters by DEGONG manufacturer
| Dimensions | to be determined by standard and customers |
| Capacity | Nominal capacity plus 25% |
| Top Head | ASME dished head (gauge varies based on tank diameter |
| Lifting Lugs | (2) lifting lugs – minimum |
| CIP | Removable CIP & fixed spray ball on TC with line down to working height |
| Vent Line | Only on tanks larger than 60HL TC vent line from top head to working height |
| Sidewall | thickness & size varies based on tank size |
| Bottom Cone | 60° cone angle, thickness varies based on tank size |
| Cooling Jacket | On sidewall and bottom cone – number of zones determined by tank size Maximum “20” psi working pressure, 1” to 1½” FNPT inlet / outlet |
| Thermowell | (2) Thermowells |
| PRV | (1) Vacuum Pressure relief valve on top head or vent line tee. |
| Legs | 4 legs depending on tank size including bracing and adjustable feet |
| Insulation | 100mm insulation on sidewall and bottom cone |
| Cladding | All welded cladding on sidewall & bottom cone |
| Manway | 375mm side oval in/out manway |
| Sample Valve | (1)Sample valve |
| Drain | (1) TC butterfly valve pipe |
| Racking arm | (1) TC butterfly valve |
| Tank Material | All quality inspected 304 stainless steel |
| Exterior Finish | 2B with all welds ribbon polished |
| Interior Finish | 2B with all welds TIG welded with heat stain removed |
| Tank Pressure | Design pressure:0.3Mpa; working pressure:0.12-0.15Mpa |
Options for an Extra Charge: Copper banding;Rotating spray heads
All tanks are fabricated using standard material sizes and normal beer tank dimensions.
DEGONG is a custom tank fabricator and can design and fabricate tanks to suit your specific requirements. Shop drawings must be approved prior to fabrication.

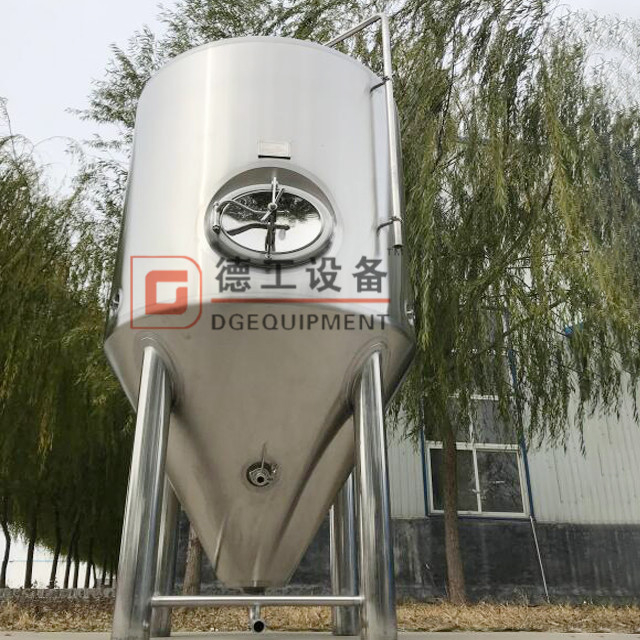

Cylindrical-conical tank components
Fermentation tanks, or more commonly fermenters, are key components in beer brewing. Fermenters are specialized tanks designed to precisely control temperature and maintain the optimal conditions for fermentation, which occurs once the wort has been transferred from the brewhouse to the fermenter; a conical-bottom design is highly recommended for fermenters allowing for easier yeast harvesting (60-degree).
| Contact me for a quote |
If you'd like to get in touch, please drop us a line at dgequipment@degonget.com
