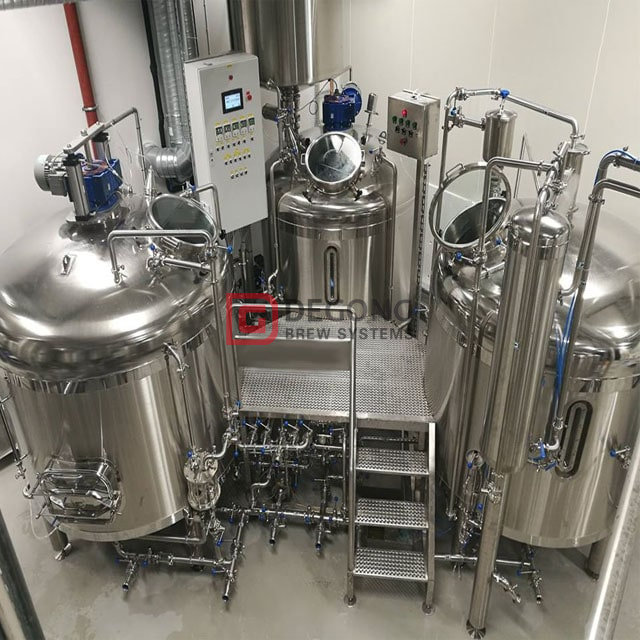

Standard Brewhouse 1BBL-15 BBL quality brewing system with insulation,jacket,double layer
Home » Brewery Equipment » Brewhouse System » Standard Brewhouse 1BBL-15 BBL quality brewing system with insulation,jacket,double layer

Product Detail

Share to:

Standard Brewhouse 1BBL-15 BBL quality brewing system with insulation,jacket,double layer

The ease and budget-friendliness of a plug and play system, backed with the outstanding support with 12 years processing equipment experience. Our small brewhouse comes in 2, 3, or 4 vessel configurations to fit your production needs.
Thickness of material (mm):
Heating method:
Material:
Quantity:
  • DGET-15BBL
  • DGET
  • 8438400000

The ease and budget-friendliness of a plug and play system, backed with the outstanding support with 12 years processing equipment experience. Our small brewhouse comes in 2, 3, or 4 vessel configurations to fit your production needs.



Design Your Own Small Brewery

If you are just starting out with a micro-brewery or brewpub, our brewhouse offers a phased scale-up approach to get your taproom up now and your process setup for future distribution. You are in control of your design and our experts can help you refine it for the best outcomes.

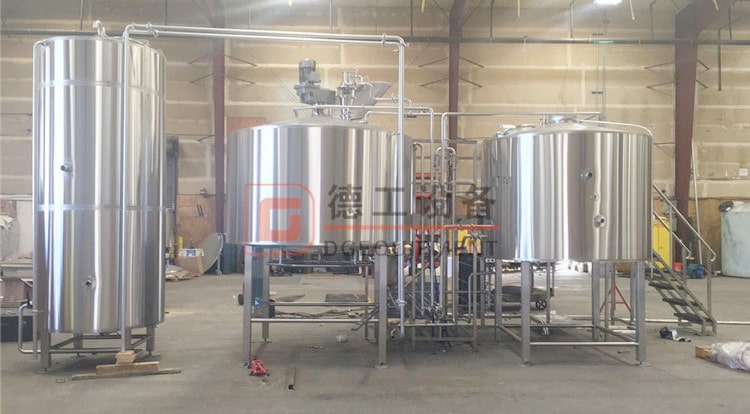

糖详-2


Ready to grow to the next phase or looking for a pilot system to test some new recipes? Our brewhouse can ship quickly and integrates with your current heating source, whether it is Direct Fire, Steam or Electric.

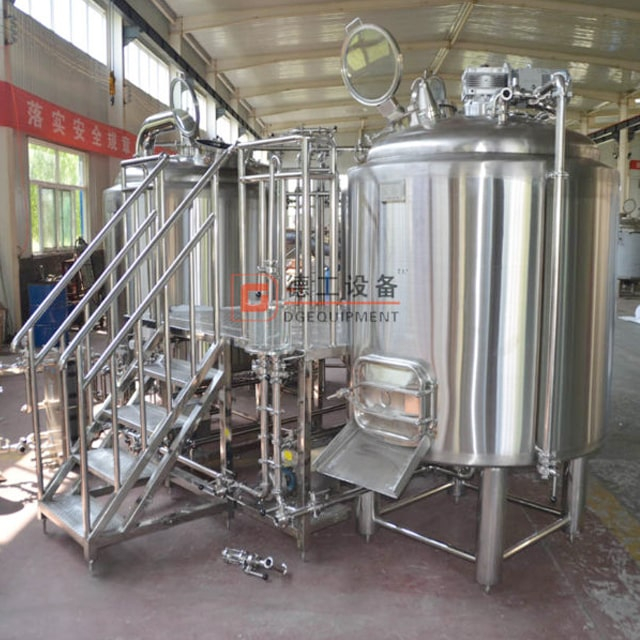

Quality stadard 1-15bbl brewhouse systems



With a brew deck, control panel and plate heat exchanger included in the brewhouse package, you will be brewing quickly

Ideal for single infusion mashing, this mash and lauter tun combines two essential pieces of brewhouse equipment to create a vessel that operates in half the space of two unique machines.



Features

  • Stainless steel construction

  • Sourcing, Service and Support from quality manufacturer

  • Vessels sized and integrated according to your range of brews

  • Top-quality process components and controls



Mash and Lauter

100% 304 stainless steel construction, including all non-product contact and structural steel

2B product contact material finish, with internal welds polished #4

Sized to meet your gravity requirements

Glass cover manway with brewery logo

Polyurethane insulation 100mm

Fully welded 304 stainless steel outer sheathing

Rotary spray balls to clean vessel

Easy spent grain removal

Evenly distributed wort collection

Removable milled screens designed to reach your desired clarity quickly to reduce total time in the lauter tun

Grist hydrator



Brew kettle and Whirlpool

100% 304 stainless steel construction, including all non-product contact and structural steel

2B product contact material finish, with buffed internal welds

Glass cover manway

Tangential inlet designed to achieve tight trub piles

Polyurethane insulation 100mm

Fully welded 304 stainless steel outer sheathing

Rotary spray balls to clean vessel

Static spray ball in concentrator to clean shroud and wort spreader

Trub removal system for easy disposal and efficient water usage

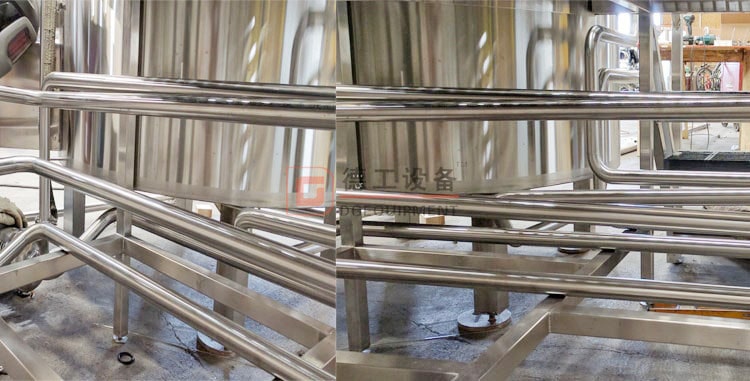

PIPELINE

Brewhouse pipelines

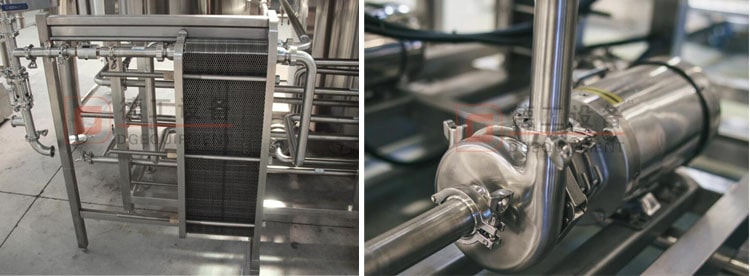

 phe and wort pump-min

Plate heat exchanger for wort cooling

Wort pumps and hot water pumps are used to transfer wort



  • Provides high efficiency heat transfer performance

  • Reduces fouling and the need for frequent cleaning

  • High thermal efficiency and high surface density allows for compact size

  • Significantly more economical than other types of heat exchangers due to higher thermal efficiency and lower manufacturing cost

  • Allows for easy disassembly, cleaning, and inspection

  • True counterflow allows for greater effective temperature differences
