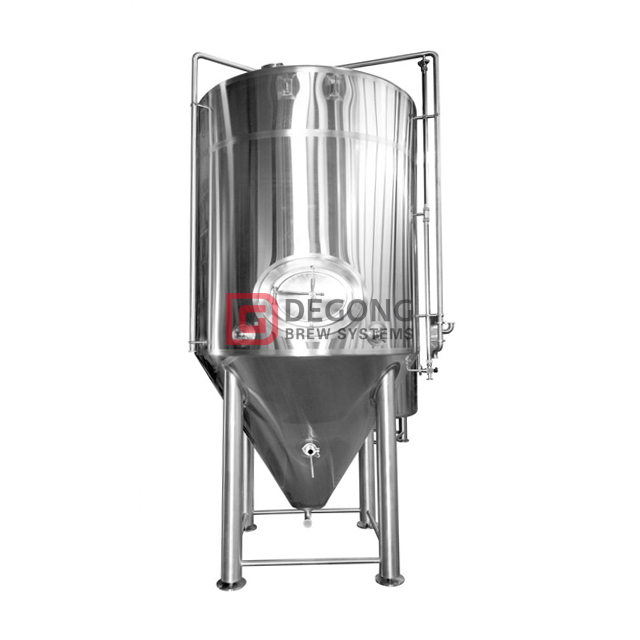

10bbl Uni-tank Fermentation Tanks stainless steel fermenting vessel manufacturer popular in Canada
Home » Brewery Equipment » Fermentation Vessels » 10bbl Uni-tank Fermentation Tanks stainless steel fermenting vessel manufacturer popular in Canada

Product Detail

Share to:

10bbl Uni-tank Fermentation Tanks stainless steel fermenting vessel manufacturer popular in Canada

We manufacture and supply brewhouse sizes from 100L to 20000L based on customer’s demand. Our brewery equipment is turn-key and consist of mill system, mash system, fermentation system, cooling system, cleaning system (CIP), control system and accessories. With brewery equipment you are able to produce outstanding full-bodied beers. Beginners will find it easy to brew with this fairly automated equipment.

Material:
Manhole:
Thickness of material (mm):
Quantity:
  • DGET-10BBL
  • DGET
  • 8438400000

fermentation 1_副本

10BBL fermenting vessel in factory

The fermentation area consists of a specific (at the customer’s choice) number of CCT (cylindrical-conical tanks) of a corresponding capacity and a control panel containing the automation for maintaining the desired beer temperature inside each CCT.


10BBL UNI-TANK FERMENTATION TANKS

We supply Fermenting Vessels at very competitive prices. They can be used for fermenting, conditioning, or carbonation.They are fully loaded, including....full chilling panel on main body, and cone. Pressure release valve, Full CIP, Temperature gauge good for ale or lager.


Features and Inclusions:

60 degree cone

DIN racking arm

High flow glycol jackets

Top mounted dry hopping port

All butterfly valves and fittings including pressure gauge included

Digital glycol control unit, solenoid and tank fittings included

Contact for viewing info or to make an offer.



发酵罐_副本

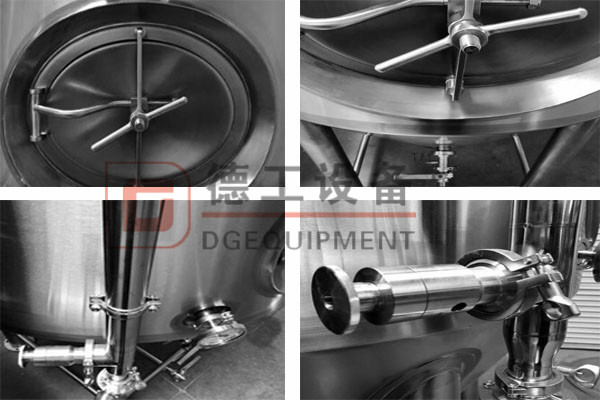

Manhole and fermenter welding details


发酵罐组件细节_副本

Components of fermentation tank


TANK1-min

Fermentation tanks in cellar


Fermentation tank

 Technology&Design

 1. It is made of double jackets with dimple jacket and insulation layer filled with polyurethane.

 2. Dish top, conical bottom for good fermenting, improving the quality of beer as well as  breeding yeast, cylinder body.

 3. As to polish, interior layer and dish top will adopts 3A mirror polish while exterior layer and conical bottom adopts 2B satin polish.

 4. As to transition of interior, we will adopt arc to make sure that there is no dead corner of sanitation.

 5. 20-30% head space, 60 degree cone, rotating racking arm is designed according to your demands

 6. All clamps valve and fittings except for cold water inlet and outlet which is Triclamp.

 7. As to the thickness, we can make it according to your requirement.

Volume

 500L-100,000L

Advantage

 1.Configuration details can be designed as your requirements

 2.Competitive price and also higher quality tank.

Minimum order

 One unit

Payment term

 T/T or L/C

Package

 Export standard package


Our company:

公司简介


工作间_副本


Packaging & Delivery

Packaging Details: standard wooden package

Package Type : As usual, we adopt wooden case as package type. It's suitable for long-distance transport. According to customers' special demand, we could adopt sheet iron case and so on.


自家发货

Ready for shipment


Contact information:

If you are interested in our craft beer equipment, need a quotation or you simply want to discuss your project with us, get in touch and we will be happy to assist you.
