DGET-10BBL
DGET
8438400000
Our DEGONG want to thank you for your interest in Steam Fired Brew Systems. All of our equipment is proudly designed and built at our factory. From concept to completion you can count on our exceptional services to make your dream brewery reality!
| 10BBL Brewery Specifications: |
2 vessel brewhouse equipment for sale
10 BBL Steam heating Brewery Includes:
Mash Tun / Lauter Tank
Brew Kettle / Whirlpool
Stainless Steel Work Platform with Handrails
20 Barrel Automated HLT
Fully Welded Sanitary Process Piping System
Complete Electrical Package

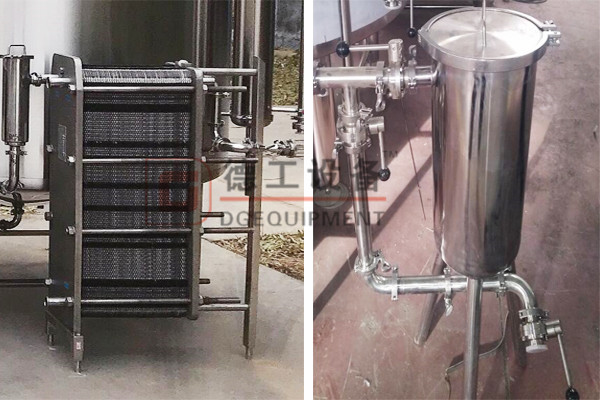

Heat exchanger and hops filter
Mash Tun/Lauter Tank Assembly:
All stainless steel 304 construction, dished top.
Fully TIG welded assembly. Internal welds are smoothed with external welds acid cleaned and re-grained. External welds are stripe buffed.
Internal mash grid assembly with wedge wire removable screens for ease of cleaning.
(1)sealed access door.
(2)sealed top man door access.
(3) Thermo-well installed with RTD for measuring temperature in Mash / Lauter Tun (Please note that we recommend a Digital wand to measure multiple places in Mash / Lauter Tun to gauge an accurate temperature).
(4) Fully welded steam jacket with rear exit protruding steam/condensate nipples on main body.
leg assembly with standard anchor pads.
Polyurethane insulation with polished stainless steel outer shell.
Brew Kettle/ Whirlpool Assembly:
All stainless steel 304 construction, dished top.
(1) sealed top man door access.
leg assembly with standard anchor pads.
Polyurethane insulation with polished stainless steel outer shell.
(2)steam flue slip flange with condensation gutter and drain port.
Fully TIG welded assembly. Internal welds are smoothed with external welds acid cleaned and re-grained. External welds are stripe buffed.
Internally mounted/removable tube dam.
Internally mounted ladder assembly for easy cleaning access.
(3) Fully welded steam jackets with rear exit protruding steam/condensate nipples. Two jackets are installed on the side circumference of the tank and one is installed on the bottom dish.
(4) Thermowell installed with RTD for measuring temperature in Brew Kettle.
20 BBL Hot Liquor Tank Assembly
Dished top and bottom jacket
(1) Fully welded steam jackets with rear protruding steam/condensate nipples.
Fully TIG welded assembly. Internal welds are smoothed with external welds acid cleaned and re-grained. External welds are stripe buffed.
(1) sealed top man door access.
(1) Thermo-well installed for your supplied temperature probe.
leg assembly with standard anchor pads.
Polyurethane insulation with polished stainless steel outer shell.
The HLT includes an electrically actuated steam valve that is pre-wired into our control panel for temperature control.

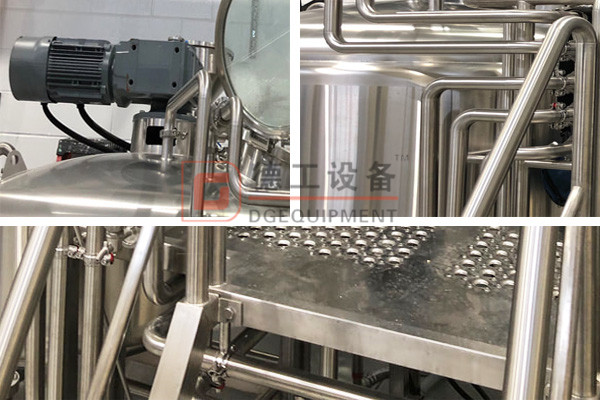

Mortor,working platform and pipline
Sanitary Piping System:
(1) Stainless steel work platform with handrails
(2) Fully welded sanitary process piping package including:
All Sanitary Gaskets
Butterfly Valves
Sight Glasses
Tri Clamps
(3) Transfer pump（wort pump and hot water pump）.
380V 50hz 3 phase motor.(Can be designed according to customer's local conditions)
Pump mounted to the bottom of the access platform and complete with all piping connections.
(4) Dual stage all stainless-steel heat exchanger assembly mounted to the underside of the access platform. We do offer a single stage heat exchanger with our systems dependent of your specific needs.
(5) Grant/ Hop Back kettle

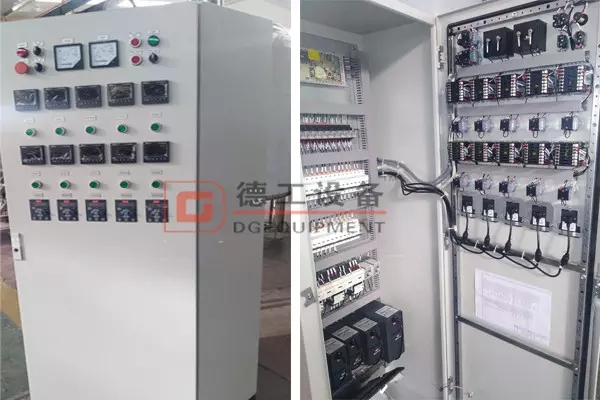

Control panel(control mashing and fermenting)
Standard Control/Electrical package will include:
Stainless steel wash down electrical box to include:
Touch screen HMI display(optional).
Temperature readout for the Mash Tun, Brew Kettle & HLT.
Automated temperature control for the HLT.
VFD for main transfer pump.
Float switch controllers for the Grant/Hop back kettle.
VFD for the Hot Liquor Tank pump.
Our main system power requirements are standard 380V 3 phase power. Alternate supply power options are available upon request. Some cost increases may apply.

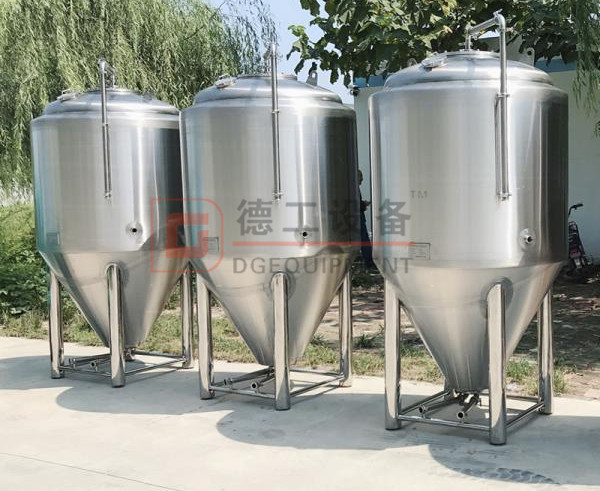

Cylinder-conical fermenters
Fermenters
The standard fermentation vessel includes sight tube, carbonation stone port and front access manway. Stainless steel dimple jackets are utilized on the fermenters to maximize glycol cooling performance, allowing the brewer to crash cool beers and maintain lagering temperatures. A dedicated temperature controller and glycol solenoid valve are included with each fermenter. Other standard accessories include pressure relief valve, pressure gauge, CIP ball and dry hop port. Our jacketed fermenters are unitanks, doubling as a brite tank if needed.

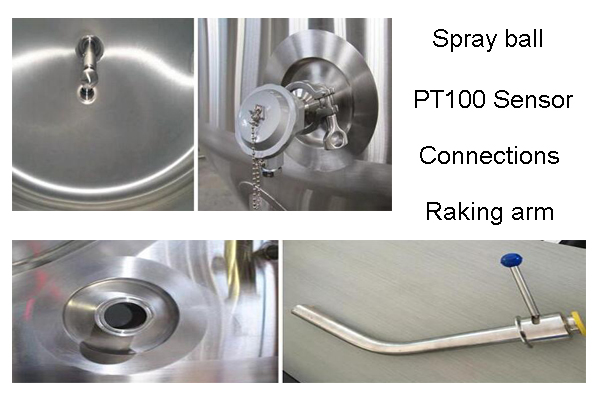

Fermentation tank components
Carbonation stone port
Brite tanks
The standard brite tank includes sight tube, carbonation stone port and front access manway. Stainless steel dimple jackets are utilized on the brite tanks to maximize glycol cooling performance, allowing the brewer to maintain low lagering temperatures. The dedicated temperature controller and glycol solenoid valve are included with each brite tank.
Brite tank model
| Our company brief introduction: |
| Packaging & Delivery |
Packaging Details: standard wooden package
Package Type : As usual, we adopt wooden case as package type. It's suitable for long-distance transport. According to customers' special demand, we could adopt sheet iron case and so on.
Ready for shipment
| Contact information: |
If you are interested in our craft beer equipment, need a quotation or you simply want to discuss your project with us, get in touch and we will be happy to assist you.
