DGET-500L
DGET
8438400000
We manufacture and supply brewhouses that vary in size from 50 to 50000 litres beer per brew. All our brewery equipment is suitable for brewpubs, restaurants, craft breweries and beer production. DGET brewery systems are turn-key and consist of malt mill, heating, controls,installation and training.
500L Brewhouse system
System | Name | Specifications | Quantity |
Crushing system | malt mill | 200kg/h | 1 |
Steam heating | Steam boiler | Electric boiler, gas boiler oil boiler | |
Brewhouse | Mash tun/lauter tank | 500L capacity Total capacity 750L | 1 |
Kettle/whirlpool tank | 1 | ||
Hot water tank | 1 | ||
Fermenting system | Fermentation tank | 5BBL or 10BBL can be choose | 4,6,etc. |
beer bright tank | 5BBL | 2 | |
Chiller system | Ice water tank | 1000L capacity | 1 |
Refrigerating unit | 7P | 1 | |
CIP cleaning system | Sterilizing vehicle | 100L capacity | 1 |
Disinfection tank | 1 | ||
Alkali tank | 1 | ||
Control system | Control cabinet | mashing control,fermenting control,cleaning control,cooling control | 1 |
Accessories | Valves:safety valve,sample valve,butterfly valve.pumps and the pipelines | ||
If you need,we also can supply the European standard and American beer kegs,manual bottle filling line include bottle filling machine,washing machine,rinser machine,capping machine and label machine.Also have the semi automatic beer keg filling machine,keg washing machine and so on.
| Brewhouse system details： |
2 vessel brewery equipment
Combination：mash lauter tun 、 kettle whirlpool tun、hot water tank
Available Capacity：100L-5000L or Customized
Heating Type： electric heating 、steam heating or direct fire heating
Control System：manual or semi-automatic
Standard configuration:
Pipeline system/VFD Wort pump/Two stage heater exchanger/Yeast adding tank/Oxygenate system/Cleaning device/Spent grain door/whirlpool tank side manway/glass sight/Steam condensate device/electric heater/work platform/temperature sensor
Optional high-class configuration:
wort Grant/Hop back tank/Grist hydrator/ auger system
Filter board;side manhole;
Rectangle grains spent access;pipelines
| Fermenting system： |

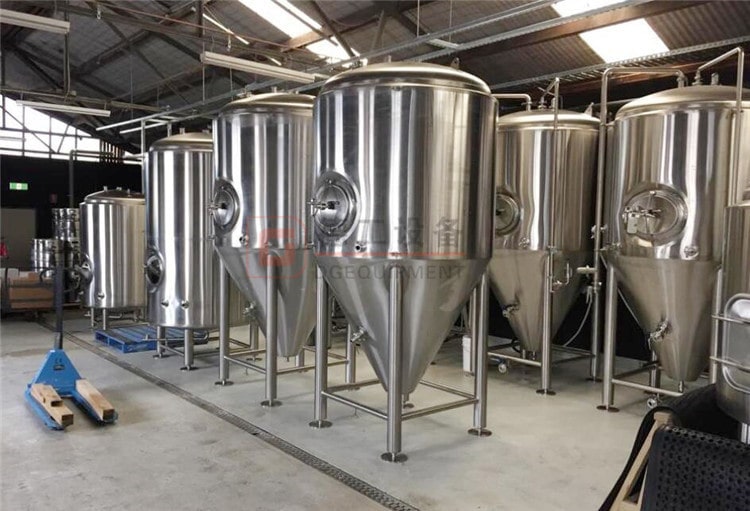

Fermentation tank with side manhole
Item: conical jacketed fermentation tank
Application: fermentation and preservation. This equipment is widely used in such industries as brewing
Feature and advantage:
Capacity: 500~20, 000L.
Material: SUS 304 or 316L.
With dimple jacketed and PU insulation on the side and bottom.
Conical top and dish bottom. Beautiful design, no dead corner for cleaning.
Equipped thermometer, pressure gauge, carbonation hole, cleaningn system, etc, form a perfect and complete set with other beer equipments.
Finishing: 2B or mirror polishing High quality material. The quality of stainless steel is very important in beer production. We manufacture with high quality stainless steel from famous steel company

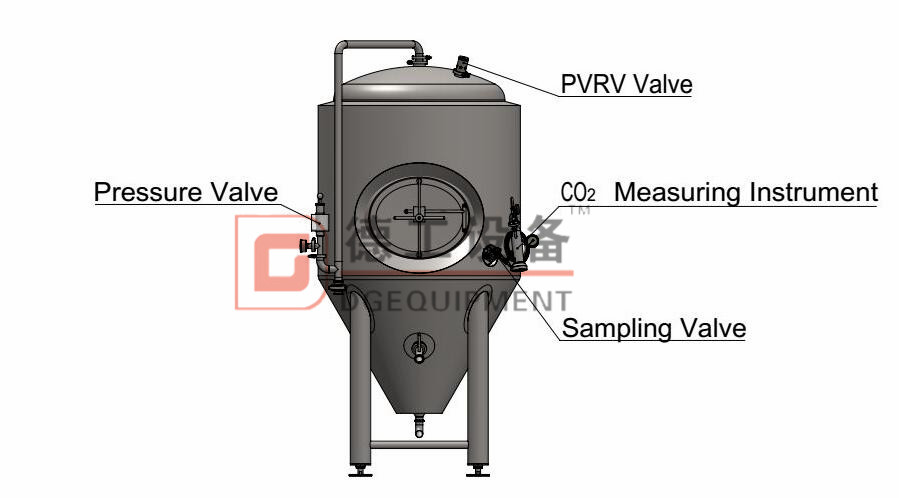

Fermentation tank details
We are instrumental in providing to our valuable customers excellent quality Fermentation Tank which is available with following Key specification
* The sterile breathing pores or fermentation system in positive pressure
* Volume type : 500~20,000L
* Additional devices: mixer,
Sterile breathing pores (or sterile positive pressure)
Inlet and discharging mouth
Sterile sampling mouth
Side manhole
Cold, the inlet and outlet of the hot water
Thermometer
CIP cleaning spray head
Fermentation tank model
| DGET brief introduction： |
| Cooperator： |
| Packaging & Delivery： |
Packaging Details: standard wooden package
Package Type : As usual, we adopt wooden case as package type. It's suitable for long-distance transport. According to customers' special demand, we could adopt sheet iron case and so on.
Ready for shipment
| Contact information: |
If you are interested in our craft beer brewery equipment, need a quotation or you simply want to discuss your project with us, get in touch and we will be happy to assist you.
