Thickness of material (mm): | |
---|---|
Insulation: | |
Material: | |
Manhole: | |
Availability: | |
Quantity: | |
DGET-10HL
DGET
8438400000
By learning each brewers individual needs, we will work with you on first stage layout design, on just right lauter tun size, on piping design, on planning your expansion project in very first start to make your own micro brewhouse.

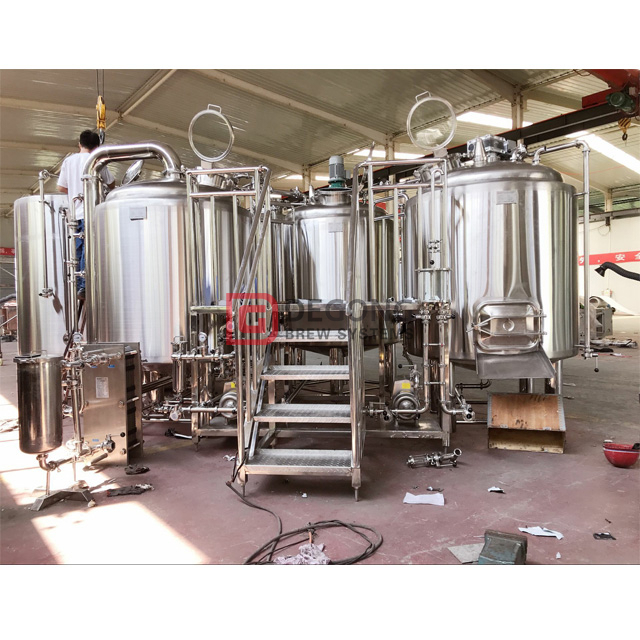

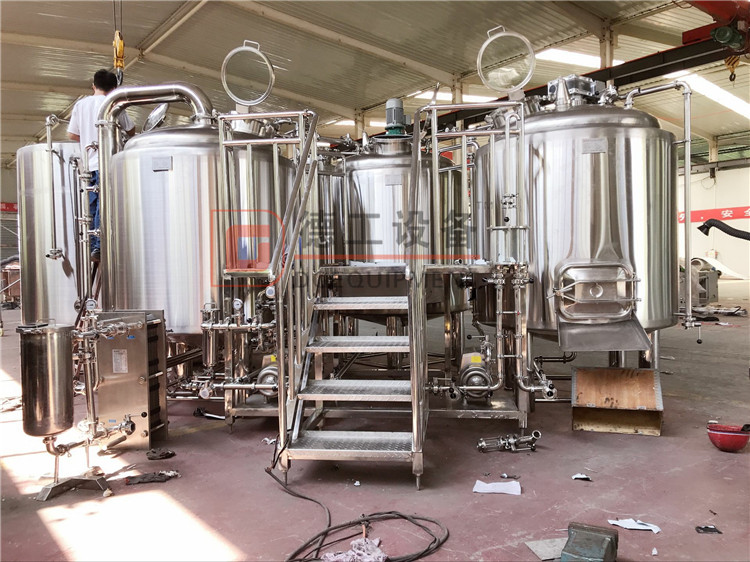

A set of brewhouse system with plate heat exchanger
We design and produce a line of complete microbreweries to your specifications. Alternative brewhouse configurations are of 2-vessel, 3-vessel styles and customized. To guarantee breweries’ reliable performance, we use quality stainless steel, fittings, and various parts, depending on our good craftsmanship, deep experience and technology in brewing industry. Especially, we focus on your convenient running breweries, by learning your special specifications and realizing them on the brewing systems.
Technical parameters of brewhouse system: |
- All tanks are made of food grade stainless steel 304.
- Adopting advanced world famous brand components in electric parts and operation parts.
- ABB motor for wort pump
- ABB/Siemens motor for raker and blender
- PLC automatic control method
- The structure of brewhouse: 2-vessel, 3-vessel or 4-vessel (Optional)
- Thickness: inner 3.0mm; out 2.0mm; jacket: 1.5mm
- Insulation: Polyurethane thickness: 100mm
- Working pressure: 1.5-2.0 bar Design pressure: 3.0 bar
- Inner surface treatment: welds grinded to Ra0.4µm without dead corner
- Outsourcing surface: weld polishing processing
- Heating method: steam; electric; direct fire (Optional)
- All welding are used argon gas protection welding. It will help to reduce the oxygenation and protect the joint. Our welders has many years experience in welding and they adopt the most popular welding way--TIG welding.
- TC connected CIP arm with 360° coverage spraying ball
- Filter board gap is less than 0.6mm
- Dished top and conical bottom
- Stainless steel top mounted manhole and door
- 4pcs completely SUS304 heavy duty legs with leveling
- Two stage plate heat exchanger
Infiltration(mashing tank);large sight glass with spray ball
Spray ball for cleaning residues in the tank
The clearness of the wort was measured through a sight glass.

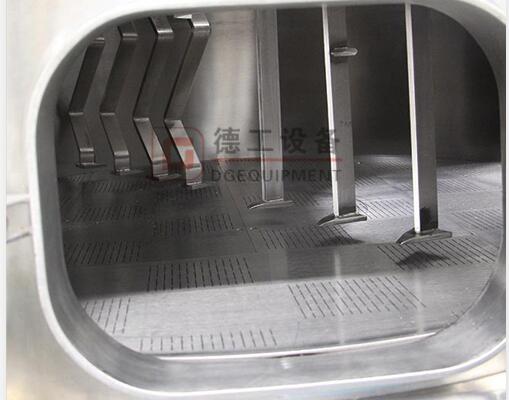

Removes spent grains from the mash tank through the access port, can be used as animal feed.
Features:
- Mash & Lauter tun: Brewing & sparging water blending port, VFD rake, with wort grant, mash hydrator, etc
- Kettle & Whirlpool: Dimpled steam jackets or direct burning heating, as well as electric immersion heating
- Hot water tank: Steam heating, direct burning or immersion electric heating.
- Heat exchanger: 2-step or 1 step, with fittings such as thermometers, venturi aeration unit, etc

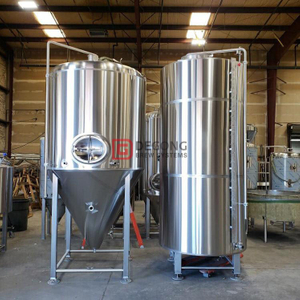

- Cellars: Singe, double or multi-time brew size fermenters and BBT
- Cellar Control: Automatic Temp. control with solenoid valves
- Portable CIP cart: with an electric immersion Heating alkali tank and a sterilization tank, automatic Temp. control and a washing pump, etc
- Customized design of tanks, production flow, etc as per customers’ brewing process and beer features.
- Customized arrangement of brewhouses’ vessels, in rows, angle or square to fit the customers’ existing buildings.
- Dismountable basic frames with operators’ platform and pre-built piping for convenient site installation.
Our company: |

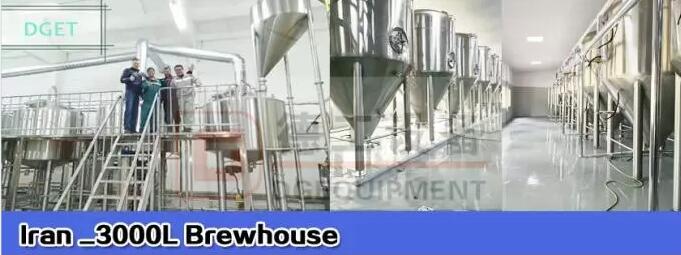

Iran customer beer brewing equipment display
Packaging & Delivery |
Packaging Details: standard wooden package
Package Type : As usual, we adopt wooden case as package type. It's suitable for long-distance transport. According to customers' special demand, we could adopt sheet iron case and so on.
Ready for shipment
Contact information: |
If you are interested in our craft beer brewery equipment, need a quotation or you simply want to discuss your project with us, get in touch and we will be happy to assist you.
