1000L Automatic Craft Stainless Steel Conical Beer Brewing Equipment Fermenting Brewery

1000L Steam Fired Brewery Includes:
Mash Tun / Lauter Tank
Brew Kettle / Whirlpool
Stainless Steel Work Platform with Handrails
2000L Automated HLT
Fully Welded Sanitary Process Piping System
Complete Electrical Package

Quantity:
  • DGET-1000L
  • DGET
  • 8438400000


DEGONG Equipment Technology Co.,Ltd is a professional beer brewing manufacturer,which is proudly designed and built at our facility. From concept to completion you can count on our exceptional services to make your dream brewery reality!


RiverOutpostBrewery-31_副本_副本

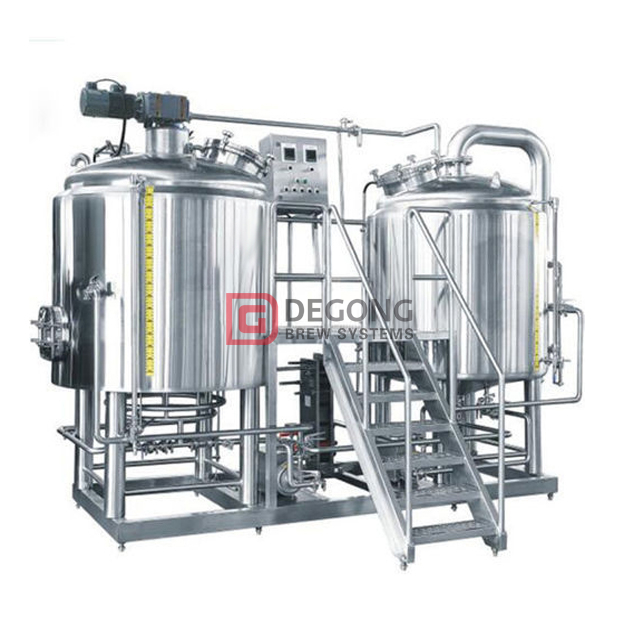

Introduction of beer mashing system/brewhouse


1000L Steam Fired Brewery Includes:

Mash Tun / Lauter Tank

Brew Kettle / Whirlpool

Stainless Steel Work Platform with Handrails

2000l Automated HLT

Fully Welded Sanitary Process Piping System

Complete Electrical Package



1000L Steam Fired Brewery Specifications:

Mash Tun/Lauter Tank Assembly

32” inner diameter all stainless steel T-304 construction, dished top and bottom.

Fully TIG welded assembly. Internal welds are smoothed with external welds acid cleaned and re-grained. External welds are stripe buffed.

Internal mash grid assembly with (4) wedge wire removable screens for ease of cleaning.

sealed access door.

sealed top man door access.

Thermo-well installed with RTD for measuring temperature in Mash / Lauter Tun

Fully welded steam jacket with rear exit protruding steam/condensate nipples on main body.

2” mineral wool insulation with 14 gauge polished stainless steel outer shell.



Brew Kettle/ Whirlpool Assembly:

32” inner diameter all stainless steel T-304 construction, dished top and bottom.

sealed top man door access.

2” mineral wool insulation with 14 gauge polished stainless steel outer shell.

8” diameter steam flue slip flange with condensation gutter and drain port.

Fully TIG welded assembly. Internal welds are smoothed with external welds acid cleaned and re-grained. External welds are stripe buffed.

Internally mounted ladder assembly for easy cleaning access.

Fully welded steam jackets with rear exit protruding steam/condensate nipples.

Thermowell installed with RTD for measuring temperature in Brew Kettle.



2000L Hot Liquor Tank Assembly

Dished top and bottom jacket.

Fully welded steam jackets with rear protruding steam/condensate nipples.

sealed top man door access.

Thermo-well installed for your supplied temperature probe.

4” diameter leg assembly with standard anchor pads.

2” mineral wool insulation with 14 gauge polished stainless steel outer shell.

The HLT includes an electrically actuated steam valve that is pre-wired into our control panel for temperature control.

Sanitary Piping System

Stainless steel work platform with handrails provided

Fully welded sanitary process piping

Pump mounted to the bottom of the access platform and complete with all piping connections.

Dual stage all stainless-steel Mueller heat exchanger assembly mounted to the underside of the access platform.



t3d_副本


xijie1

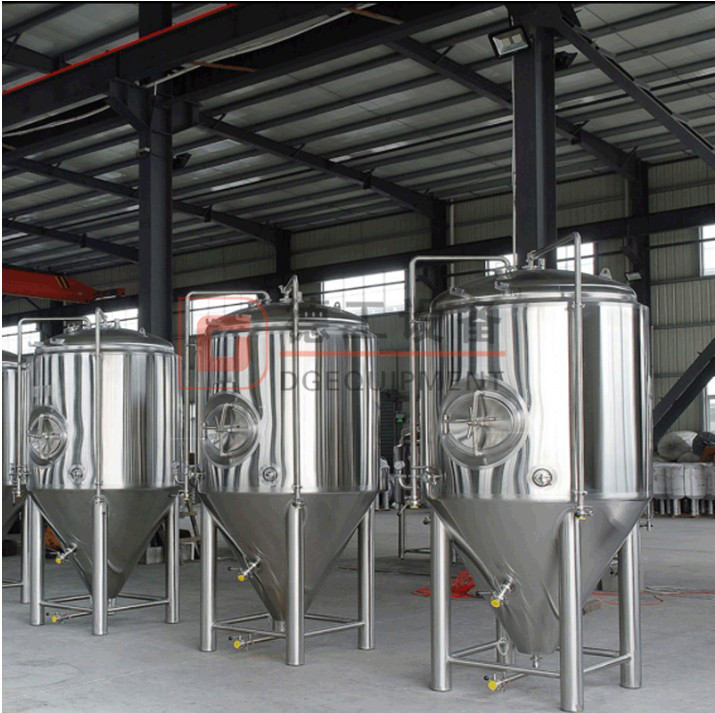

Introduction of beer fermentation tank


Fermentation tanks, or more commonly fermenters, are key components in beer brewing. Fermenters are specialized tanks designed to precisely control temperature and maintain the optimal conditions for fermentation, which occurs once the wort has been transferred from the brewhouse to the fermenter; a conical-bottom design is highly recommended for fermenters allowing for easier yeast harvesting.


Main Features of 1000L beer fermentation tank/vessel:

Inner Shell: 4mm,  304 Stainless Steel

Outer Shell: 2mm,  304 Stainless Steel

Inner shell design pressure 29PSI(2bar), testing pressure 29PSI(2bar), designed to suit all types of craft breweries.

Inner cooling jacket design pressure 29psi (2 bar).

25% headspace for fermenting process.

Tank inner side is polished within 0.6µm sanitary finish.

Tank outside is 2B stainless steel plate(optional brushed stainless, #4 finish).

Shell and bottom cone cooling jacket for better temperature control.

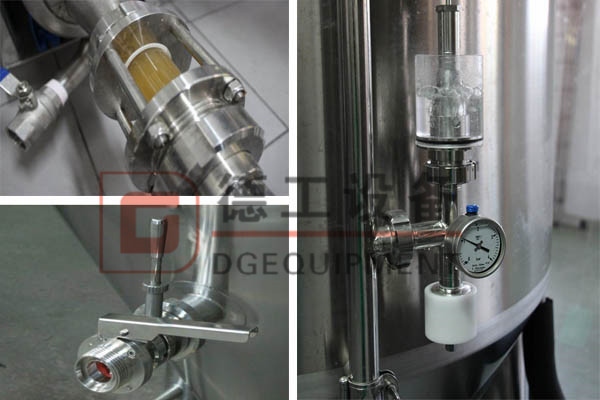

Main Components of 1000L beer fermentation tank/vessel:

Manhole on the top head (standard).

Level Indicator (standard) for inner tank.

Vacuum/Pressure combined valve. Tank top fittings, pressure gauge.

Pressure keeping valve with sight glass for controlling and monitoring fermenting process.

Built in rotary spray ball within the inner tank for cleaning.

Sanitary sampling valve, with the shortest connection on the tank, easily CIP cleanable.

Manual ball valve for easy glycol changing over thus temperature control.

Other customization possible upon request.



  beer-fermentition-tank


xijie2


pintu1_fuben



Certifications

renzheng

CE&TUV&ISO



Equipment shows


图片1eee

Why choose us


HEAT CONTROL: Our commercial grade stainless steel brewing systems for sale provide the ability to control heat from 0 to 100% (either in 1% increments on our Advanced panel, or infinitely adjustable with the dial on our basic panels.

SAFETY: We provide GFCI breakers that meet the NEC requirements for protection of human life on each element circuit for safety and better reliability in a wet brewery environment.

EASY TO CLEAN: Our systems have sanitary construction with food grade valves, sanitary welds and tri clamp fittings. Spend less time cleaning, and more time brewing delicious brew.

DURABILITY: Our brewing systems are engineered to commercial standards and are built to last.

WORT PROTECTION: Our Ultra-Low watt density elements, plus our ability to lower the element's power (which makes the watt density proportionally lower with our 0-100% adjustment), there is no scorching or off flavors.

LOW COST TO VENT THE STEAM:With our stainless steel commercial grade brew kettles, you use a low cost condensate stack or steam condenser to vent the steam. Steam MUST be properly ventilated to avoid serious mold and potential health safety issues in your building.
