Overview
Degong's fermentation tank is certified with ISO,CE and TUV,featuring high quality and being applied in beer bar,restaurant, beverage factory in more than 50 countries all over the world. The capacity is from 10BBL to 20 BBL according to your demand. It will be the best choice for the buyer who want establish the commercial and industrial brewery for fermenting the unique taste of beer. Technically speaking, the fermentation system is consisted of fermenter,bright beer tank, yeast tank and other accessories.

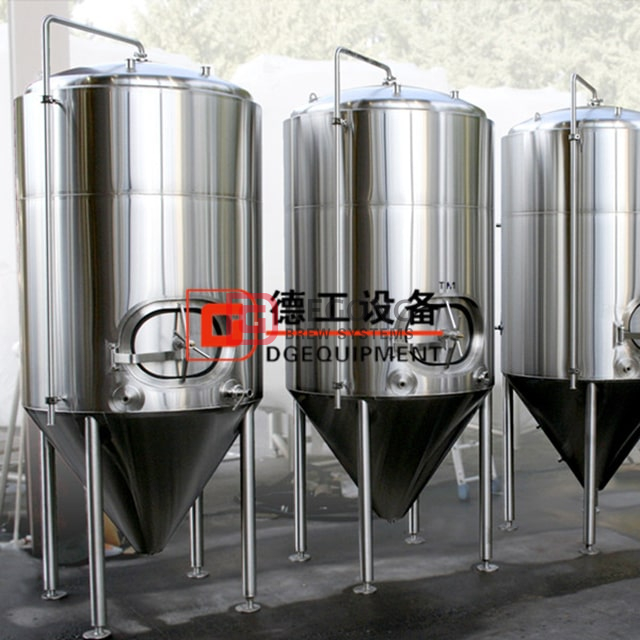

10BBL fermenter of DGET
Fermentation tank
Depending on the type of yeast, the beer will be top or bottom fermented. The beers are given these names because after fermentation the yeast will settle either at the top or the bottom of the fermentation tank. When the fermentation process has been completed, the yeast is removed. Now, the green beer already contains all the elements of the final product.

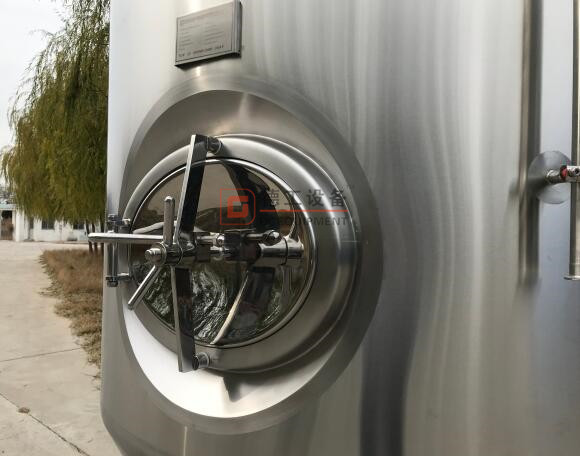

fermentation tank with side man hole
| Material (SUS304) thickness | Inner thickness: 3.0mm; Outer thickness: 2.0mm;External-Jacket thickness: 1.5mm |
| Interior Finish | Sanitary 2B finish, Pickled and Passivity; |
| Exterior Finish | Oil brushed finish |
| Inner treatment | Interior full polished to 0.2~0.4 μm without dead corner |
| Insulation | Insulated with high density Polyurethane foam 100mm |
| Cooling method | Glycol Jacket |
Vessel Pressure | practical pressure:1.5 bar;design pressure:3.0 bar |
| Equipment with | cone 60°resist compression design,dripping |
pressure gauge & carbonation stone
100% TIG welding with pure argon gas shield
Glycol Jacket: Dimpled plate on cone and side
Sanitary side mounted manway with pressured door
TC connected CIP arm with 360° coverage spraying ball
CO2 blow-off arm with butterfly valve
Full sanitary metallic sealed sampling valve
Mechanical safe valve PVRV 2 bar on top
Hydraulic shock pressure gauge on CIP arm
Rotating racking arm and port on cone with butterfly valve
Tri-clamp discharge arm with butterfly valve
Thermowell for high accuracy temperature sensor
Dry hopping port 4'' TC with solid end cap
Cold water tank
The cold water tank is mainly to provide the cold water tank to cool down the temperature of hot water during the first phase of wort cooling process. In this way, the wort can be cooled to desire temperature much easier at second phase by glycol water tank. In other perspective, it can lengthen the using life of chiller, which is a also a necessary part of a whole brewery system.
Bright beer tank
Bright beer tanks is a piece of brewing equipment as they serve to mature, clarify, and carbonate the beer after fermentation. In some cases, they also double as serving vessels in brewpubs, eliminating the need for kegs.The bright beer tank made by Degonget use top class stainless steel (SUS304), surface treatment can be 2B or precise polish or mirror polished. All fittings installed with tanks using top brands like ABB, Siemens, Omron, etc.

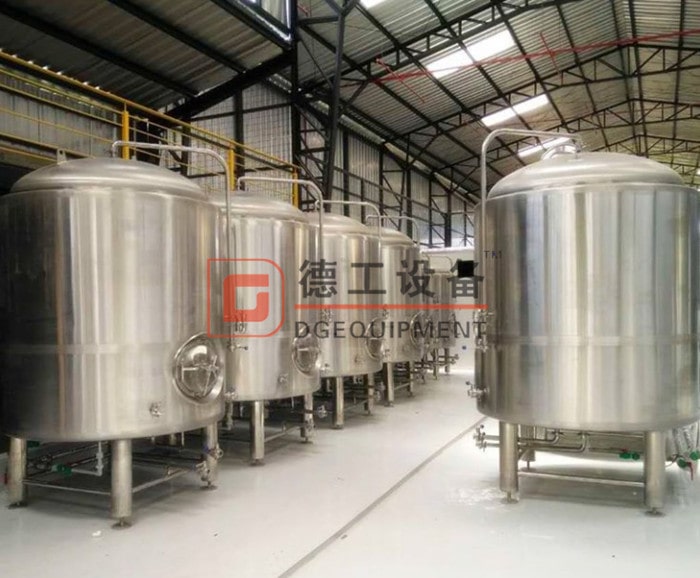

20BBL brite beer tank

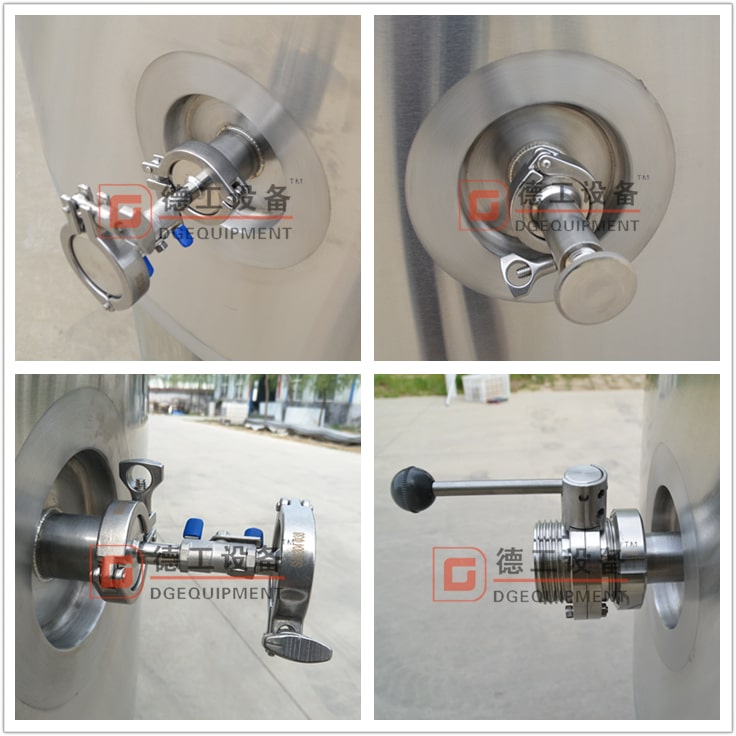

CIP arm and spray ball 360 degree coverage.
Pressure gauge
Thermometer gauge
Lifting lugs
Side man way door
Carbonation stone assembly
accessories of the BBT
Packing&delivery
Packaging type : standard wooden package
Package details : As usual, we adopt wooden case as package type. It's suitable for long-distance transport. According to customers' special demand, we could adopt sheet iron case and so on.
Delivery: by sea
Our certificate
With the high standard of brewery equipment both in row materials and manufactures, DEGONG have passed 4 international certification: ISO9001,ISO14001,SGS ,TUV and CE
Contact us
Every fermentation tank is unique and requires different specifications. Please shoot us an email or give us a call for a quote.
