| Thickness of material (mm): | |
|---|---|
| Insulation: | |
| Configuration: | |
| Heating method: | |
| Certificate: | |
| Quantity: | |
DGET-2000L
DGET
8438400000
Applications:
This beer brewery equipment which is not only suitable for the small scale beer factory and also suitable for the beer brewing of tourist resorts, hotels, pubs
The beer equipment includes milling system, brewhouse system, fermentation system, cooling system, control system, CIP system and so on.
Brewhouse system:
Brewhouse includes mash, boiling, lauter and whirlpool four function.
Includes mash/boiling tun, lauter/whirlpool tun, wort pump, plate heat exchanger, wort oxygenator, control system, SUS platform, pipes and fittings. It can be two vessel, three vessel, four vessel or five vessel which is customized according to process.
Heating method: electric heating, steam heating, gas heating
Capacities: 100L, 300L, 500L, 1,000L, 2,000L
Fermentation system:
Dimple jacket conical fermentation tank
The conical bottom cylinder fermentation tank is the major equipment of brewery fermentation system which is suitable for the small scale beer manufacturer, especially for draft beer brewing of tourist resorts, hotels, pubs
The cold wort is delivered to the fermentation tank via the inlet of the tank after filtration and inoculated with yeast for fermentation.
Mash tun:
Equipped with suitable jacket and mixer to ensure temperature rise rate, avoid coking
large volume, as well as wort boiling, improve the overall system’s efficiency.
Lauter tun:
Combined plow knife structure increase lautering efficiency,increasing the diameter of the center circular construction has improved lautering efficiency and spend grains discharge speed greatly. Because of the center circular construction basic design, the mash will be filled into the lauter tun steadily and speedily, the wort will be circulated with low oxygen uptake.Set more suitable wort outlets accord with hydrodynamics principle, assure wort flows through piping etc. long wort collection ring, make wort collection steadily and speedily.
Use specially designed raking arm to raise main shaft seal, avoid leaking to improve sanitation.Can be used as mash tun, meet a variety of process demands of craft beer.
Boiling tun:
With inner heater, jacket, mixer. This design makes the kettle tun can be used as adjunct cooker or mash tun, meet the special demands of craft beer process; benefit for heating low-temperature wort more.Inner heater functions to wort forced circulation
Whirlpool tun
Specially designed whirlpool tun bottom accord with hot trub sedimentation characteristics, combined with specially designed hot trub collection zone, can make the hot trub more closely and be discharged directly no need for washing, avoid remixing hot trub into wort when we pump the wort to PHE.
2000L 3-vessel brewhouse combination
Mash/lauter tun+boiling/whirlpool tun+hot water tank
Mash tun+lauter tun+boiling/whirlpool tun(optional:hot water tank)
Mash/lauter tun+boiling tun+whirlpool tun(optional:hot water tank)
About heating method: for 2000L(3-vessel),steam heating is the most popular,but you can choose electric heating or direct fire heating.

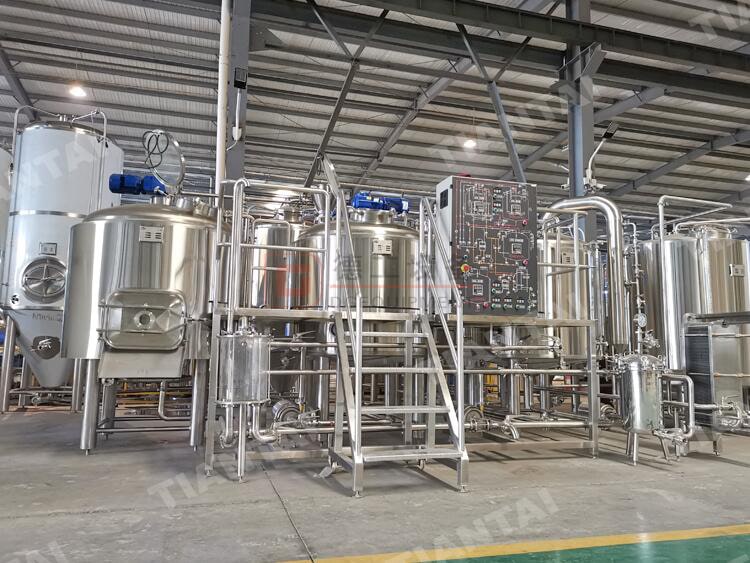

3-vessel brewhouse system

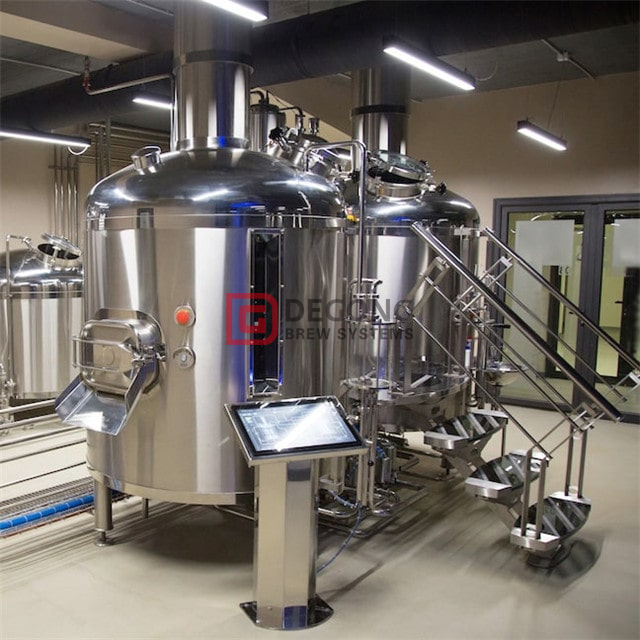

part of the brewhouse system
fermenter in pub
