Certificate: | |
---|---|
Insulation: | |
Manhole: | |
Fermentation tank coolinig: | |
Configuration: | |
Availability: | |
Quantity: | |
DGET-1500L
DGET
8438400000
The whole set equipment is made of SUS304 stainless steel.The cooling jacket adopts dimple jacket. The jackets are provided at tank body and conical bottom to effectively increase the cooling speed. Heat exchanging area of jacket of different proportions can be allocated according to customers' technological requirements. Widly used in brewery,bar, hotel etc.
(mill machine) Malt and grain raw materials can be well dissolved after being crushed, and the crushing quality plays an important role in the composition of wort, wort filtration and raw material utilization in the mash process.
stainless steel mill machine

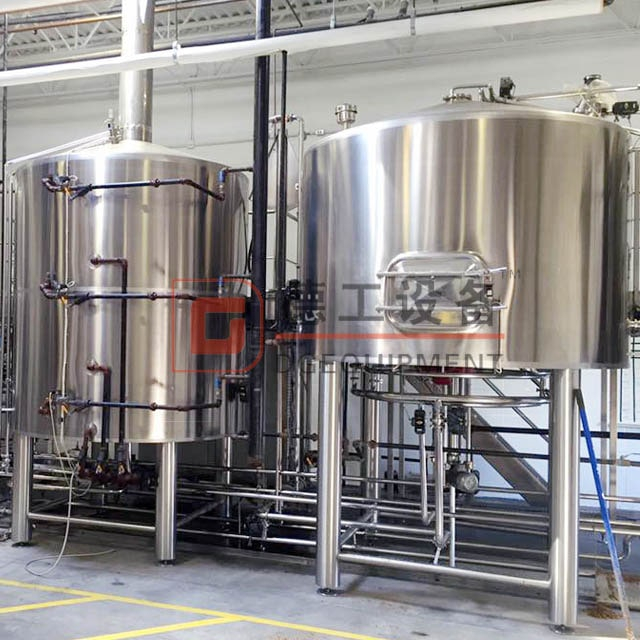

Mash tun, Lauter tun, Boiling Kettle, Whirlpool tun in various combination
Hot water tank and cold water tank for optional in special combinations
For 1500L brewhouse, we recommend mash/lauter tun+boiling/whirlpool tun+hot water tank
Infusion or decoction brewing methods are designed exactly
Stainless steel cladding is even the unique because of easy maintenance and clean
Two stages or single stage heat exchanger for wort cooling
Completely stainless steel integrated work platform
Sanitary and efficiency wort pump
All pipings and fittings
brewhouse system pipe connection details
Material:stainless304/316
Racking Arm and discharge port with butterfly valve and fittings;
dimple plate cooling jacket.
Insulation thickness: 100mm;
Inner tank thickness: 3.0mm; outer thickness:2.0mm
CIP arm and rotary spray ball
Release and breath valves
sample valve, mechanical pressure regulation valve
Pressure gauge & Thermometer & Sample valve
Dimple plate cooling jacket with glycol inlet and outlet
Four legs with brace and adjustable bolt
Interior of tank is mechanical polished, inner body polishing ratio 0.4μm. Out plate surface protection welding line Belt Sander Polished,welding: 100% Argon Arc welding.
fermentation tank details
Function: Used for cooling wort in heat exchanger when it finished the mashing in brewhouse, and cooling wort in fermentation tank in the fermenting period.
Component: Ice water tank, solenoid valve, glycol water ump, stainless pipeline and etc.
Cooling method: Two stage cooling (Glycol water and tap water work cooling).
Control method: Automatically by PLC controller cabinet.
In addition to glycol water, the cooling system also includes refrigeration units, circulating pumps, etc.
glycol water tank & chiller
