| Thickness of material (mm): | |
|---|---|
| Material: | |
| Heating method: | |
| Quantity: | |
DGET-3bbl
DEGONG
8438400000
| 1bbl-100bbl Beer Brewing Equipment |
To make the best beer possible, the brew house is the key. On the basis of absorbing European advanced and experienced beer machinery technology, our Brew house can fulfill various brewing technologies, variable tastes or specific capacities.
Steam: Dimple plate jacket with inlet/outlet fittings for Steam heat transfer.
Electric: Use electric heaters in jacket to heat the medium in the jacket.
Gas fired: Use gas burner at bottom to heat tank directly.
1. Custom 2, 3, 4 vessels brewhouse system
2. Material: Food grade stainless steel SUS304 or SUS316 according to your request.
3. Insulation: 80-100mm polyurethane
4. Available production capacity from 100L-10,000L or 1-100BBL
5. Round glass manways for malt feeding and observation.
6. Dimple plate steam jacket on the inner shell for heating.

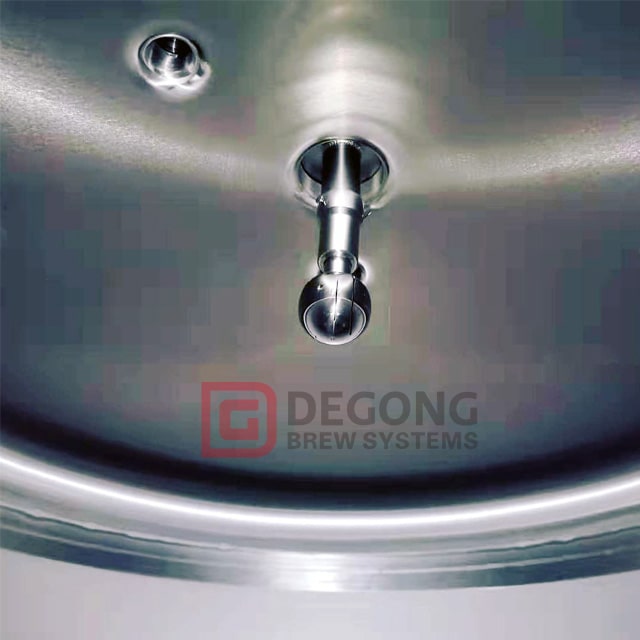

7. Sanitary spray ball for cleaning
8. PT100 sensor for temperature measurement
9. PU liquid level indicator

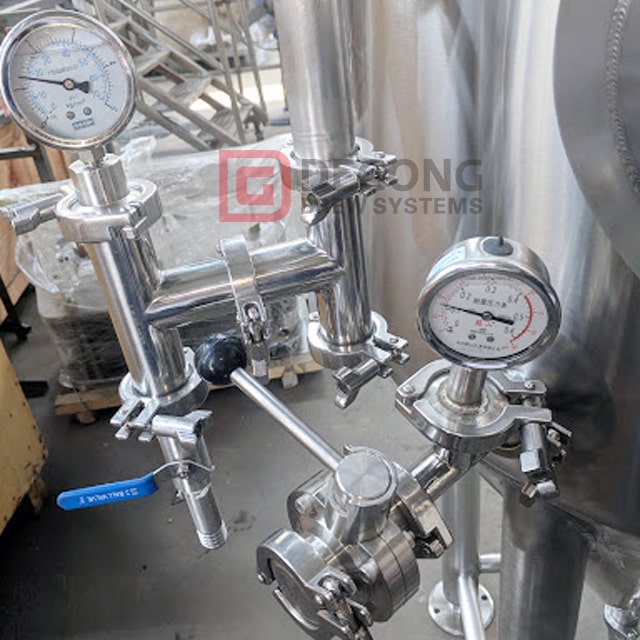

10. Sanitary butterfly valves for pipeline connecting
11. False bottom gap width≤0.7mm
12. High speed round washing pipe for spent grain washing

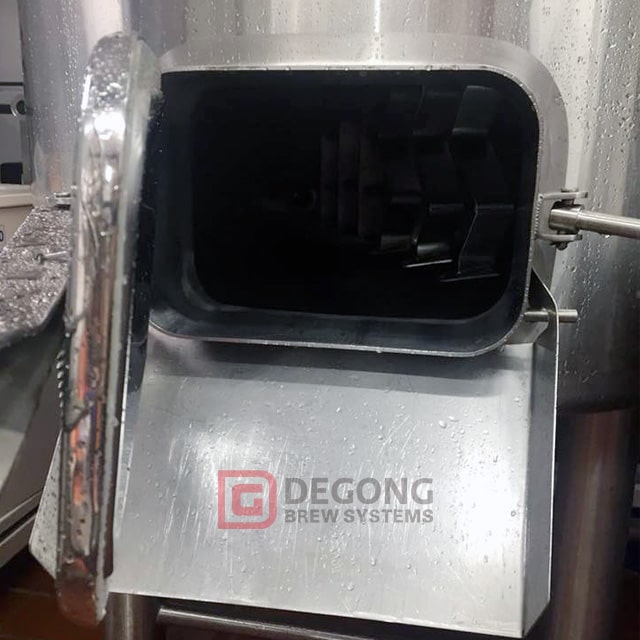

13. Side grist exhaust port and dismountable grist slope
14. 4 heavy stainless-steel legs with leveling foot pads
15. Horizontal worm gear reducer mounted on the top seal cap
16. Custom layout for your brewery and area restriction.
17. Sanitary high temperature tolerance centrifugal pump
18. Semi-automatic controlling cabinet
19. Working platform with skid proof stainless steel plate and handrail
20. Steam exhaust pipe
If you have interest, please feel free to contact me.
