DGET
Degong
8438400000
Overview |
Degong provided the 1BBL-20BBL beer brewing equipment with high standard for customers.Our Industrial stainless steel brewery equipment is turnkey and automated ,consisting of mill system, mash system, fermentation system, cooling system, cleaning system (CIP), control system and accessories.The brewery equipment can be used for commercial used or industrial brewery. With this high-quality brewery equipment, you are able to produce outstanding full-bodied beers.

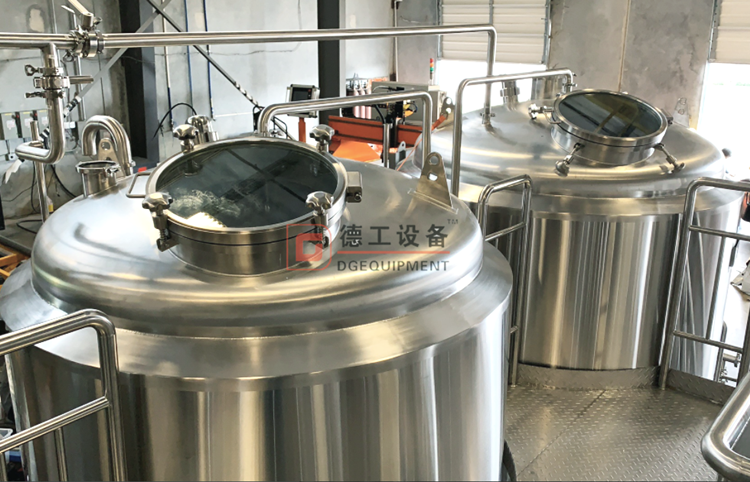

Mash system |
Mash/Lauter tun
Kettle/whirlpool tun
Steam heating method
hot water tank
Tubular glass level indicator
Tangential wort inlet
Side mounted grain outdoor with grain chute
Laser cutting V-wire False Bottom
Heating exchanger: 10 square meters
Wort pump: ABB motor, VFD control
Wort aeration device
Yeast adding tank: 30L
Seamless food grade stainless steel 304 pipes
Working platform
Technical parameters:
Design Volume : | 1bbl-10bbl | Voltage: | 380V/220V or customized |
Power(W): | 15-70Kw depends on capacity | Temperature way: | Double metal thermometer |
Jacket Pressure: | Design pressure 0.3 M Pa, working pressure <0.2 M Pa |
Certification:
| CE ,ISO,TUV
|
Inner surface treatment: | welds grind to Ra 0.6µm. | Outsourcing surface |
Weld polishing processing
|
Equipment Material: | SUS304 or Red Copper M2 for outer shell | Thickness of Tanks: | 3mm for inner container/2mm for outer shell |
Insulation | Polyurethane Insulation | Insulation thickness: | 100 mm |
Color Available: | Mirror SUS, Luxury red copper | Heating: | Electric/steam/direct fire heating |
Fermentation system |

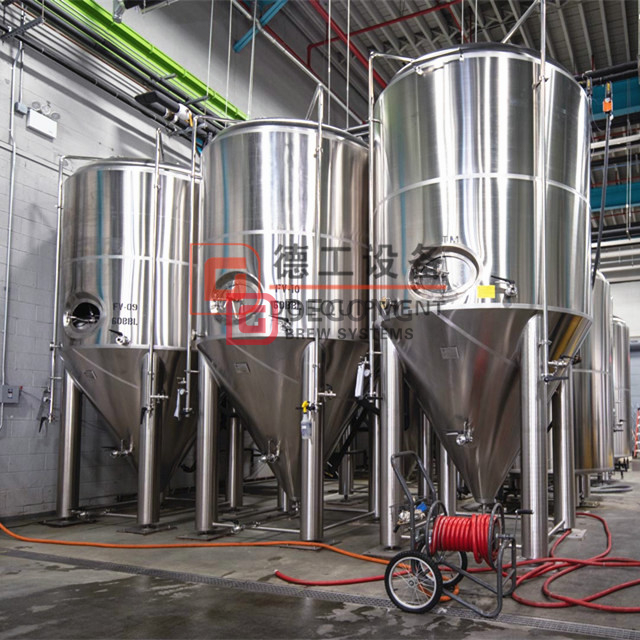

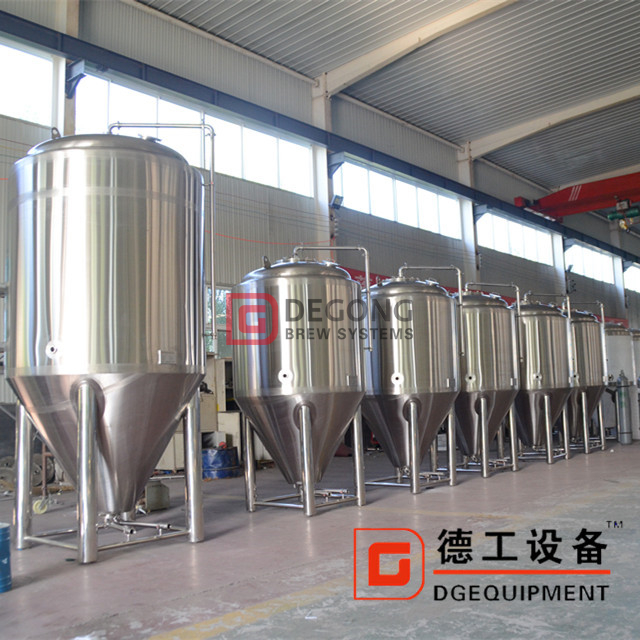

Degong's fermentation tank is certified with ISO,CE and TUV,featuring high quality and being applied in beer bar,restaurant, beverage factory in more than 50 countries all over the world. It will be the best choice for the buyer who want establish the commercial and industrial brewery. The fermentation system is consisted of fermenter, bright beer tank, yeast tank and other accessories under the technical view.
Technical parameters:
Material (SUS304) thickness | Inner thickness: 3.0mm; Outer thickness: 2.0mm;External-Jacket thickness: 1.5mm |
Interior Finish | Sanitary 2B finish, Pickled and Passivity; (8K Mirror finish optional) |
Exterior Finish | Oil brushed finish (2B, 8K Mirror finish optional) |
Inner treatment | Interior full polished to 0.2~0.4 μm without dead corner |
Insulation | Insulated with high density Polyurethane foam 100mm |
Cooling method | Glycol Jacket |
Vessel Pressure | practical pressure:1.5 bar;design pressure:3.0 bar |
Equipment with | cone 60°resist compression design,dripping |
Cooling system |
Cooling system is always consisted of circulation pump, glycol water tank and chiller. How to equip a suitable cooling system depends on the quantity and capacity of fermenters. The glycol water tank is for filling the glycol water. And the chiller is for generating the cooling capacity to reduce the temperature of the glycol water heated by fermentation process.
chiller
Refrigerant: Freon R404A, Copeland compressor

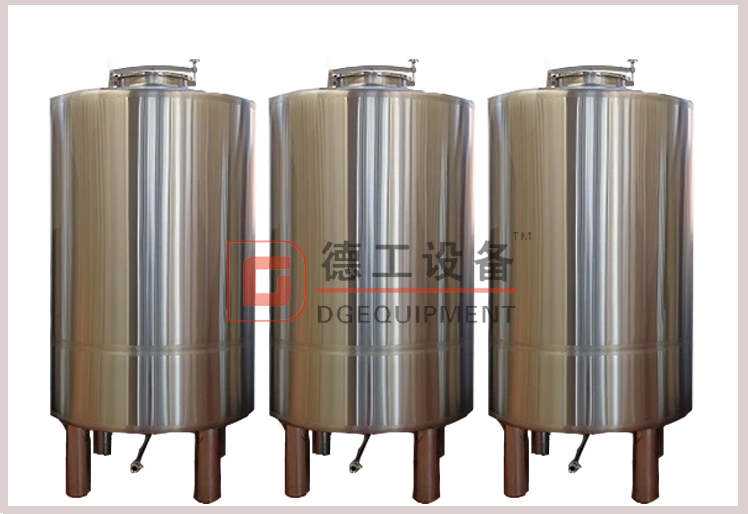

glycol water tank
Glycol water circulation pump, VFD control
PPR pipe

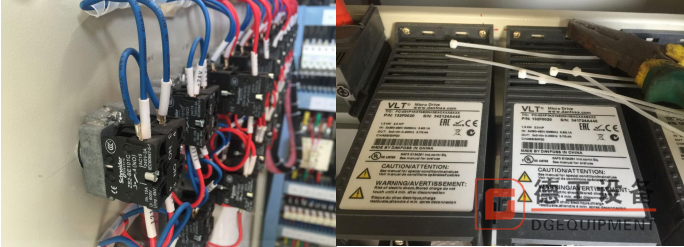

Control system |
Control system is the soul of a whole set of brewery equipment. It controls the running of each components such as pump, motor and whole brewery system. Degong’s control system is a integrated box which houses the terminals of all components.
Semi automatic control system or PLC fully automatic control system if requested
Siemens/Schneider/Omron components
PC or mobile remote control if requested
Individual control system for brewhouse system and fermentation system
Our Advantage |
DEGONGET,established in 2009,is a large Chinese manufacturer of beer brewing equipment. Dedicate to beer equipment, beer fermentation equipment, beer bottling machine, beer keg filling machine, beer filter machine, wine production equipment, wine fermentation tank, pasteurizing equipment, water treatment equipment, steam boiler and so on. Provide the total solution to customer from designing, consulting, product to project implementation to fit each brewer’s individual needs.
Quality
Quality is the soil of an enterprise. We can offer you competitive advantage products.With us,your money in safe and your business in safe.
Delivery
Time is gold for you and for us,so we have professional team work and production line and can make nice quality in short time.
Certificate
Our equipment is coming with certifications of PED and our company is TUV approved. We use CE approved components for customers. The quality, specification and function all meet the treaty of contract.

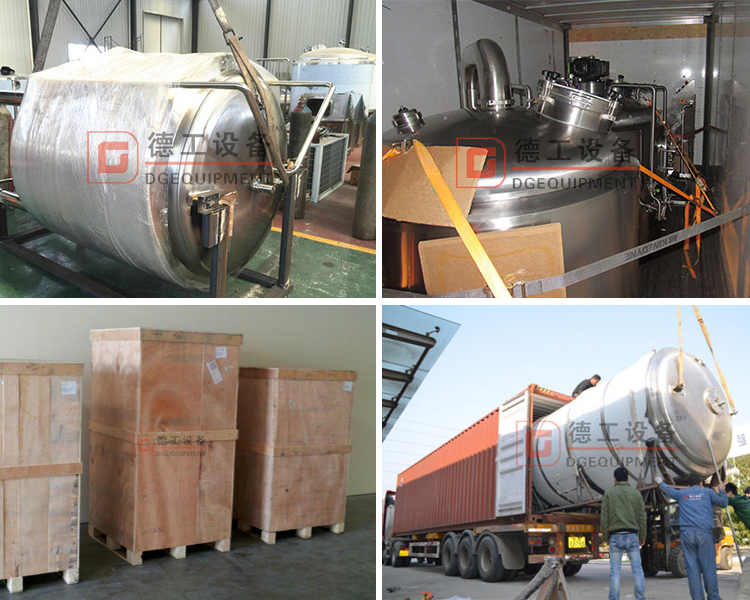

Packing&delivery |
Standard packing:
Cord ,film membrane
Firm membrane, wood box for free fumigation
Delivery :
- We put your order into our tight production schedule to ensure the punctual delivery time.
- Production or inspection report before your order packed.
- Shipping notice/ insurance to you as soon as your order is shipped.
Contact us |
Every Brewhouse is unique and requires different specifications. Please shoot us an email or give us a call for a quote.
