Overview
DEGONG is specialized in manufacturing different types of industrial breweries and microbreweries to different clients in the world. The full line products including milling, mashing, fermentation, cooling,controling, filling and other related processes. Working with all relevant partners, Degong can manage the design, engineering, build and installation of a brewhouse that helps you achieve your unique brewing process and replicate it. In the end you will have a long-term, sustainable commercial beer brewing system that maximizes efficiency and space.
Mash system
Mush/brewhouse heated via steam,electric or direct fired
Flexible brewhouse designs to accommodate your available square footage and ceiling heights
Custom can design brew houses for sour beer production

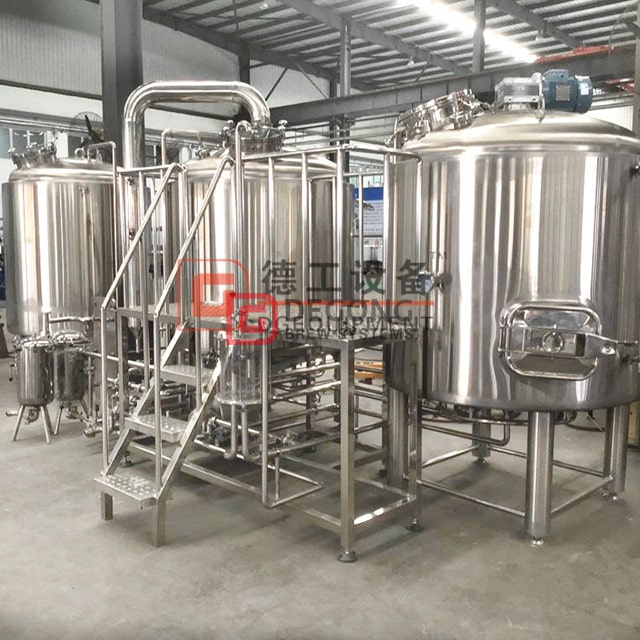

Brewhouse configurations from 2-vessel to multi-vessel designs

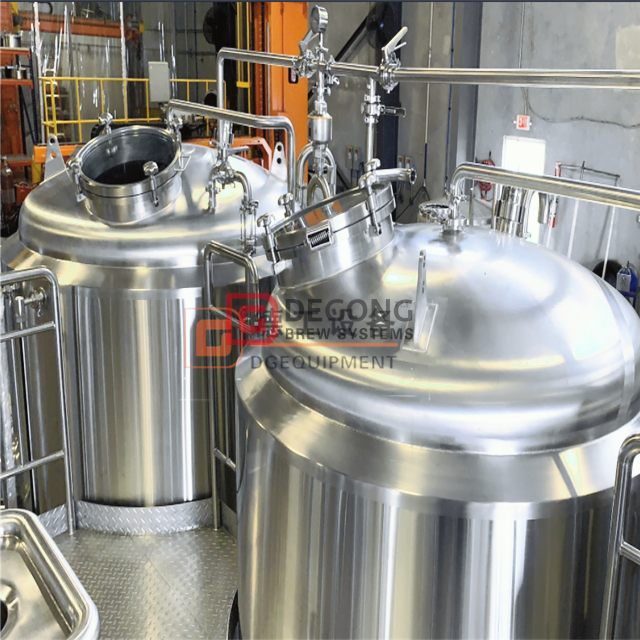

3-vessel brewhouse euqipment with side man hole
configuration details:
Material: Inner(SUS304),thickness: 3.0mm;
External-Jacket(SUS 304), thickness: 2.0mm;
Cylinder (sharp type, SUS304), thickness: 2.0mm.
Inner surface treatment: welds grinded to Ra 0.6µm.
Insulation: Polyurethane-thickness 100 mm.
Temperature way:Double metal thermometer

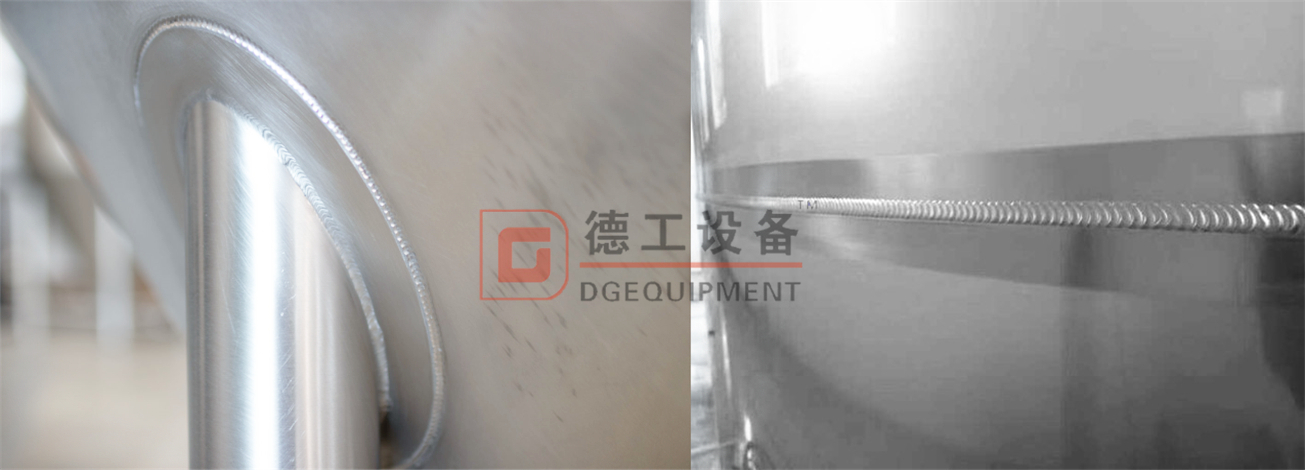

Outsourcing surface: Weld polishing processing
Jacket Pressure: design pressure 0.3 MPa, working pressure <0.2 MPa.
CIP 360 degrees Omni bearing cleaning
Integrated CIP System
Hot Liquor Tank –Designed and Sized for Double Brew efficiency
Cold Liquor Tank –Fully insulated and integrated
Stainless steel 304 pump with ABB or Siemens motors
Mash / Lauter Tun with grain raker
Boiling/whirlpool tank with whirlpool port and stir blades
304 stainless steel operate platform and stairs
Plate heat exchenger design pressure :1.0Mpa
Weld polishing processing

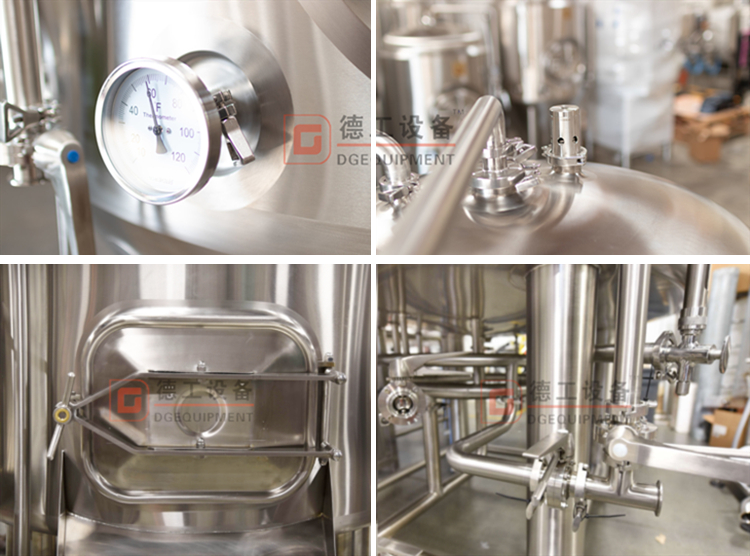

components and accessories of the brewhouse equipmet

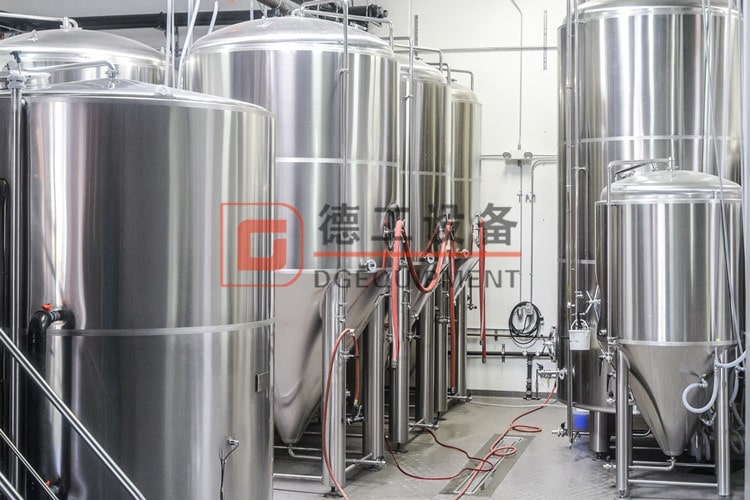

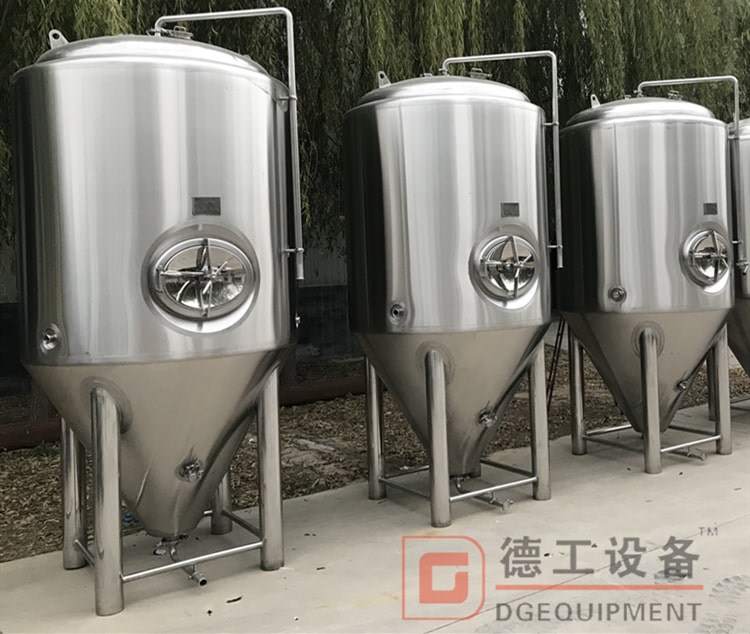

Fermentation system

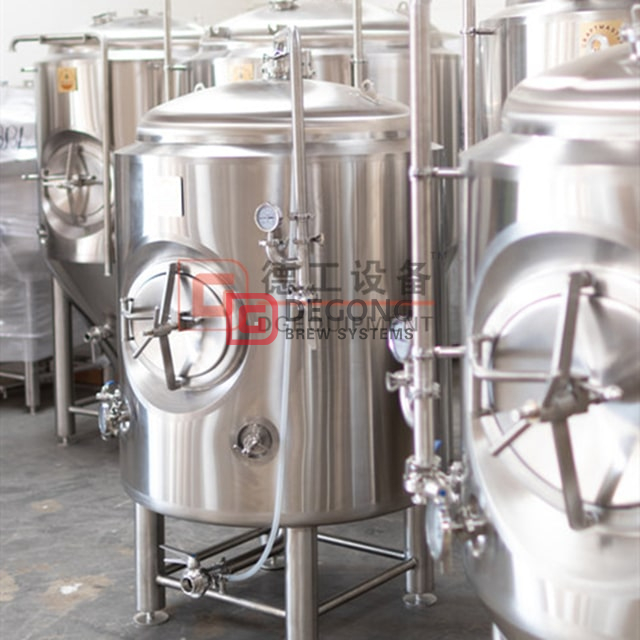

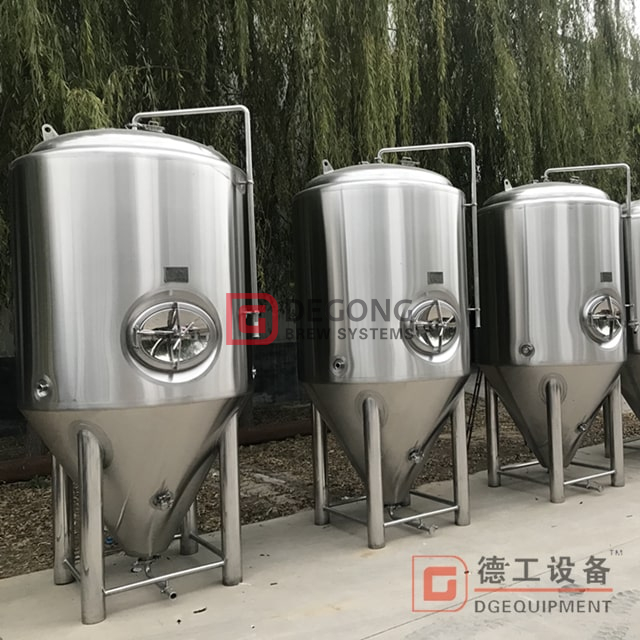

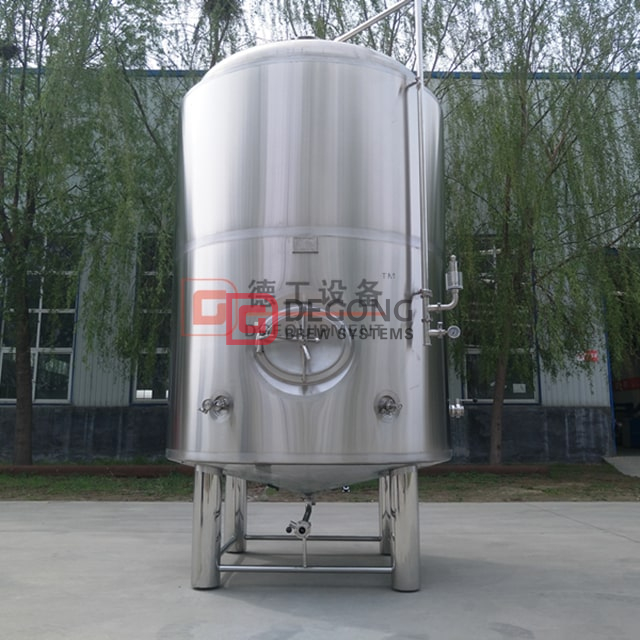

Fermentation systems is made up of Fermentation Tank ,Bright Beer Tank, yeast adding tank and other accessories and quantities are based on customer's request. Technically speaking Fermentation Tank structure is dished head and cone bottom,with Polyurethane installation and dimple cooling jackets .

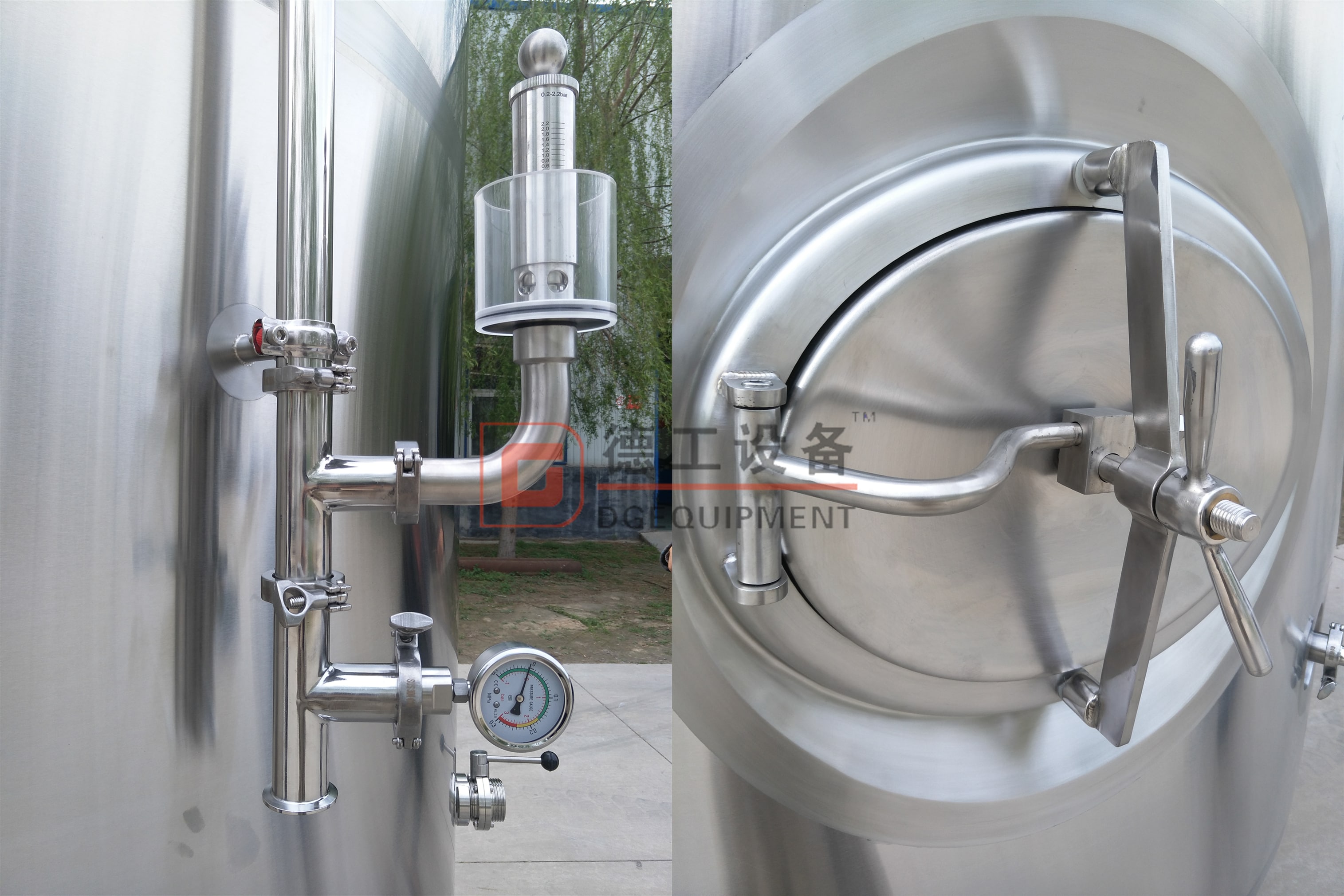

pressure aguge anf side manhole of the fermenter
Configuration details:
Material Inner (SUS304)thickness: 3.0mm; Outer(SUS304)thickness:2.0mm
External-Jacket(SUS304) thickness: 1.5mm;
Oval head cone bottom, thickness: 3.0mm.
Surface: Finish2B – cold-rolled, annealed, pickled
Inner surface treatment: welds grind to Ra 0.6μm (attached 360 degree Omni cleaning ball).
Mirror surface finish inside.
100% TIG welding with pure argon gas shield
Insulation: Polyurethane-thickness 100 mm.
Equipment with : cone 60°resist compression design,dripping 10.Temperature drop.
Cleaning System: All-round cleaning
Vessel Pressure: test pressure 3 bar, working pressure 1.5 bar
Cooing system
2000L cold water tank
Control system
Control system is the soul of a whole set of brewery equipment. It controls the running of each components such as pump, motor and whole brewery system. Degong’s control system is a integrated box which houses the terminals of all components.
Semi automatic control system or PLC fully automatic control system if requested
Siemens/Schneider/Omron components
PC or mobile remote control if requested
Individual control system for brewhouse system and fermentation system

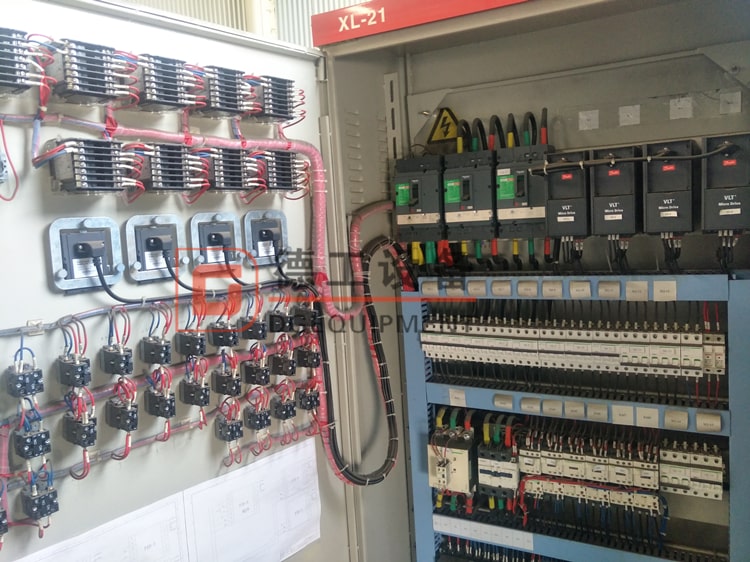

control cabinet

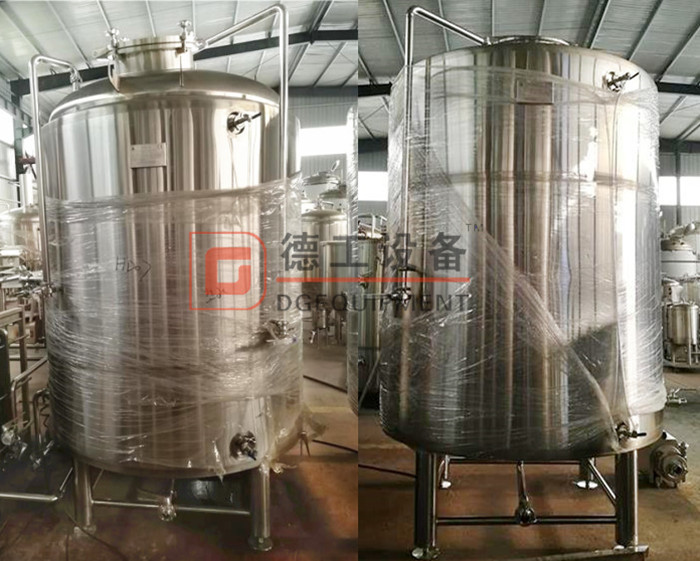

Packing&delivery
Standard packing:
Cord ,film membrane
Firm membrane, wood box for free fumigation
Delivery :
We put your order into our tight production schedule to ensure the punctual delivery time.
Production or inspection report before your order packed.
Shipping notice/ insurance to you as soon as your order is shipped.
Why choose us
Quality
Quality is the soil of an enterprise. We can offer you competitive advantage products.With us,your money in safe and your business in safe.
Delivery
Time is gold for you and for us,so we have professional team work and production line and can make nice quality in short time.
Certificate
Our equipment is coming with certifications of PED and our company is TUV approved. We use CE approved components for customers. The quality, specification and function all meet the treaty of contract.
Contact us
Every Brewhouse is unique and requires different specifications. Please shoot us an email or give us a call for a quote.
