10BBL craft commercial stainless steel brewery equpment for sale

DEGONGET brewhouse system are built entirely of 304 stainless steel and can be customized entirely to your needs. Whether you are looking for smaller, single tanks for nano/pilot systems or large, full rake agitation systems with combination vessels or separate mash mixer and lauter tuns, we can create the tanks you need for your brewing procedure.

Thickness of material (mm):
Material:
capacity:
fermentation tank Manhole:
Certificate:
Quantity:
  • DGET-10BBL
  • Degonget
  • 8438400000
Overview

DEGONGET brewhouse system are built entirely of 304 stainless steel and can be customized entirely to your needs. Whether you are looking for smaller, single tanks for nano/pilot systems or large, full rake agitation systems with combination vessels or separate mash mixer and lauter tuns, we can create the tanks you need for your brewing procedure.


quick view

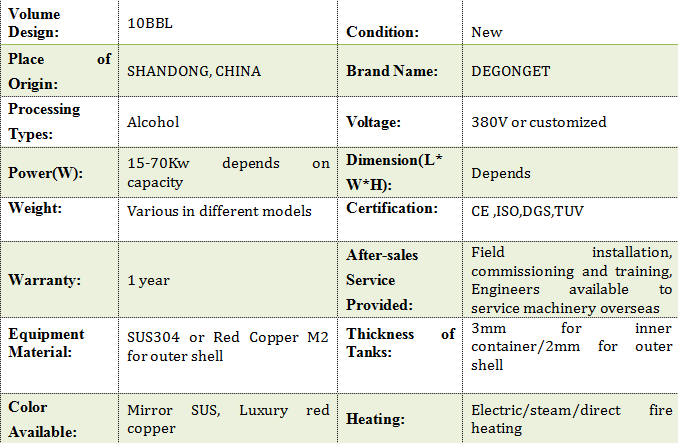

10bbl


Working with all relevant partners, Degonget can manage the design, engineering, build and installation of a brewhouse that helps you achieve your unique brewing process and replicate it. In the end you will have a long-term, sustainable  craft commercial stainless steel brewery equpment that maximizes efficiency and space.

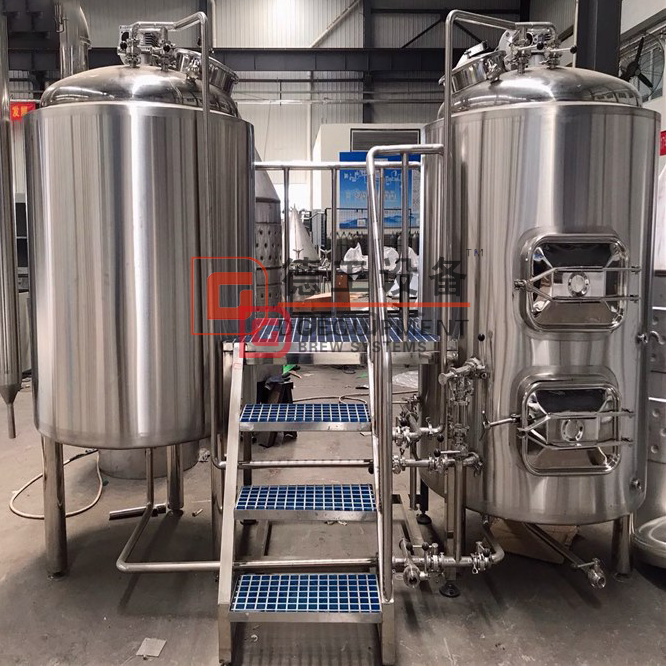

Brewhouse system

The 10BBL brewhouse is consisted of mush/lauter tank,kettle/whirlpool tank and hot water tank. In addition,10BBL brewing equipment’s production range is wide and the output is according to the number of fermentation tanks. It  can be used for commercial or industrial brewery. Heating method can be chose from steam,electric or direct fired.With this high-quality brewery equipment, you are able to produce outstanding full-bodied beers.

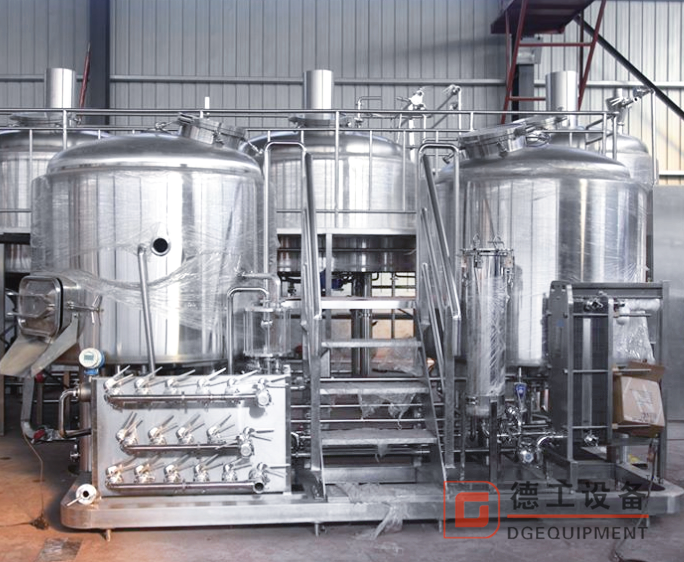

QQ图片20200416141023_副本

3-vessel brewhouse system

Technical Parameter:

  •  Material Inner (SUS304) thickness: 3.0mm; Outer (SUS304) thickness: 2.0mm; External-Jacket(SUS304) thickness: 1.5mm;

  •  Equipment with : cone 60°resist compression designdripping

  • 100% TIG welding with pure argon gas shield

  •  Interior Finish: Sanitary 2B finish, Pickled and Passivity

  •  Exterior Finish: Oil brushed finish (2B, 8K Mirror finish optional)

  •  Interior full polished to 0.2~0.4 μm without dead corner

  •  Insulated with high density Polyurethane foam 100mm

  •  Glycol Jacket: Dimpled plate on cone and side

  •  Stringent tank leakage test by water and pressured gas

  •  Stringent Jacket leakage test by water and pressured gas

  •  Sanitary side mounted manway with pressured door

  • TC connected CIP arm with 360° coverage spraying ball

  • CO2 blow-off arm with butterfly valve

  •  Full sanitary metallic sealed sampling valve

  •  Mechanical safe valve PVRV 2 bar on top

  • Hydraulic shock pressure gauge on CIP arm

  • Hot Liquor Tank –Designed and Sized for Double Brew efficiency

  • Cold Liquor Tank –Fully insulated and integrated

  • Stainless steel 304 pump with ABB or Siemens motors

  • Mash / Lauter Tun with grain raker

  • Boiling/whirlpool tank with whirlpool port and stir blades

  • 304 stainless steel operate platform and stairs

  • Plate heat exchenger design pressure :1.0Mpa

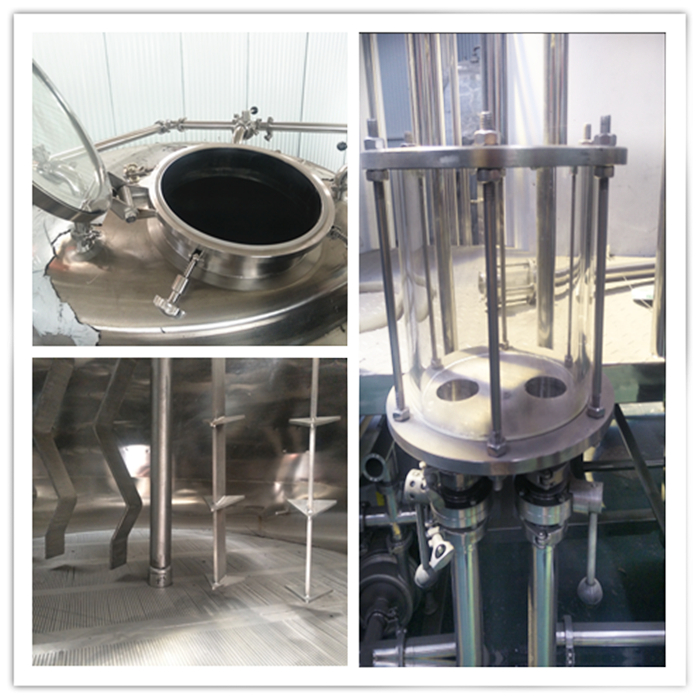

QQ图片20200416160633_副本

sieve plate and grain saker

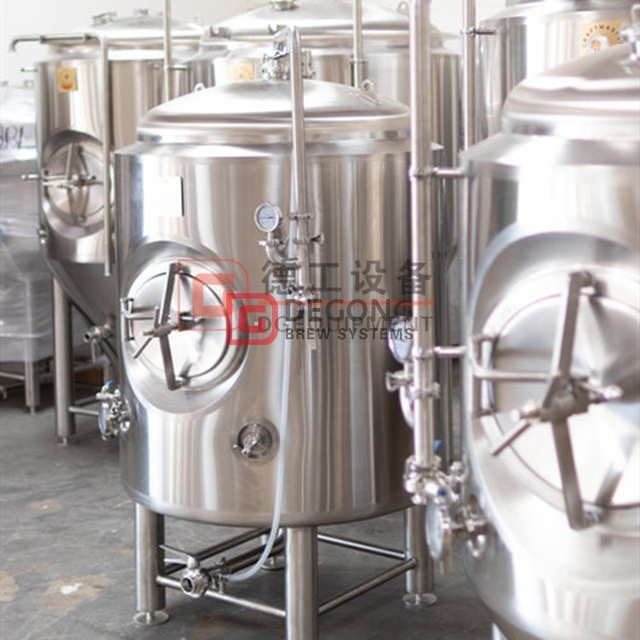

Fermentation system


Fermentation systems is made up of Fermentation Tank ,Bright Beer Tank,yeast adding tank and other accessories and quantities are based on customer's request.According to different fermenting request, structure of fermentation tank be be designed accordingly.


Technical Parameter:

  • Material Inner (SUS304)thickness: 3.0mm; Outer(SUS304)thickness:2.0mm

  • External-Jacket(SUS304) thickness: 1.5mm;

  • Oval head cone bottom, thickness: 3.0mm.

  • Surface: Finish2B – cold-rolled, annealed, pickled

  • Inner surface treatment: welds grinded to Ra 0.6μm (attached 360 degree Omni cleaning ball).

  • Mirror surface finish inside.

  • 100% TIG welding with pure argon gas shield

  • Insulation: Polyurethane-thickness 100 mm.

  • Equipment with : cone 60°resist compression designdripping 10.Temperature drop.

  • Cleaning System: All-round cleaning

  • Vessel Pressure: test pressure 3 bar, working pressure 1.5 bar

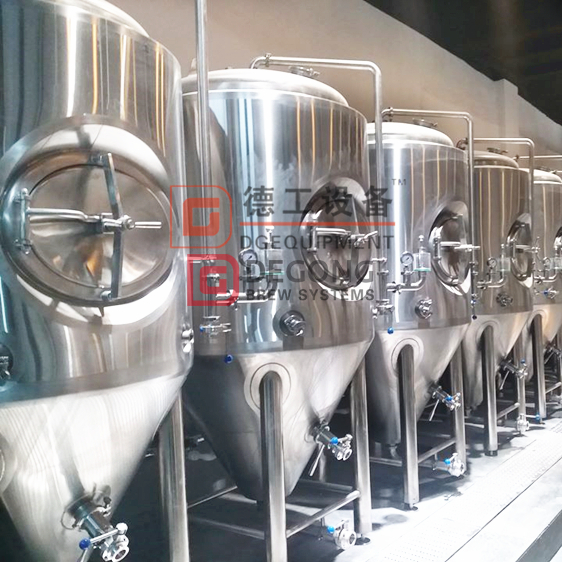

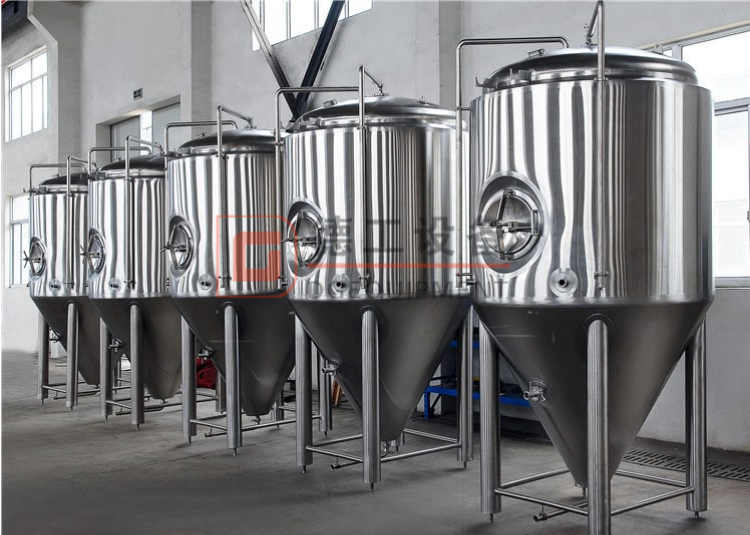

fermention tank

fermentation tank line


Cooling  system


  • 7HP chiller, Power: 5.25KW, Cooling capacity: 16268Kcal,

  • Refrigerant: Freon R404A, Copeland compressor

  • 1500L glycol water tank

  • Glycol water circulation pump, VFD control

  • PPR pipe

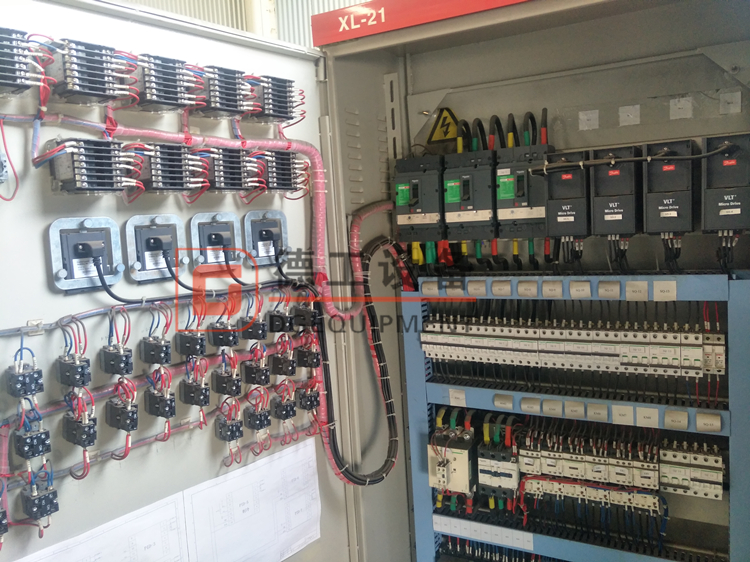

Control  system


  • Semi automatic control system or PLC fully automatic control system if requested

  • Siemens/Schneider/Omron components

  • PC or mobile remote control if requested

  • Individual control system for brewhouse system and fermentation system

QQ图片20200415090137


Why choose us


Quality:

Quality is the soil of an enterprise. We can offer you competitive advantage products.With us,your money in safe and your business in safe. With the high standard of brewery equipment both in row materials and manufactures, Degong have passed 4 international certification: ISO9001,ISO14001,SGS ,TUV and CE


01


Delivery:By sea

Time is gold for you and for us,so we have professional team work and production line and can make nice quality in short time.


QQ图片20200415135525_副本



With customers


with customer_副本


FAQ


Q1:What’s the payment you prefer?

A:Our standard payment terms are T/T with 30% deposits and balanced before shipment.


Q2:Do you have technical support after we purchased equipment?

A:We will arrange the professional technician to go to your factory and give the support to help you learn how to install and maintenance the machine or help you to fix the machine when it has problems.


Q3:Where is your factory?

A:Our factory is located in Dezhou City, Shandong province,China. We can pick you up at the airport whenever you want to visit the factory.


Q4:Where is the port of loading

A:The port of loading is Qingdao.


Q5:How long time for installation?

A:It’s according to your equipment order, it about 10days to 25 days.


Contact us


Every Brewhouse is unique and requires different specifications. Please shoot us an email or give us a call for a quote.
