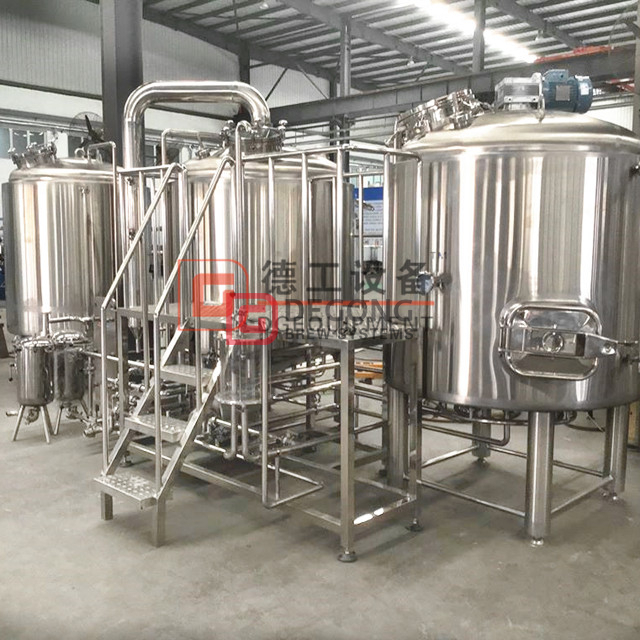

1000L craft turnkey commercial industrial beer brewing equipment

1000L turnkey industrial beer brewing equipment of DGET is customer-oriented ,consisting of mill system, mash system, fermentation system, cooling system, cleaning system (CIP), control system and accessories.The 1000L brewery equipment can be used for commercial used or industrial brewery. With this high-quality brewery equipment, you are able to produce outstanding full-bodied beers.

Thickness of material (mm):
capacity:
Material:
Function::
Quantity:
  • DGET-1000l
  • DEGONGET
  • 8438400000
OVERVIEW


1000L turnkey industrial beer brewing equipment of DGET is customer-oriented ,consisting of mill system, mash system, fermentation system, cooling system, cleaning system (CIP), control system and accessories.The 1000L brewery equipment can be used for commercial used or industrial brewery. With this high-quality brewery equipment, you are able to produce outstanding full-bodied beers.

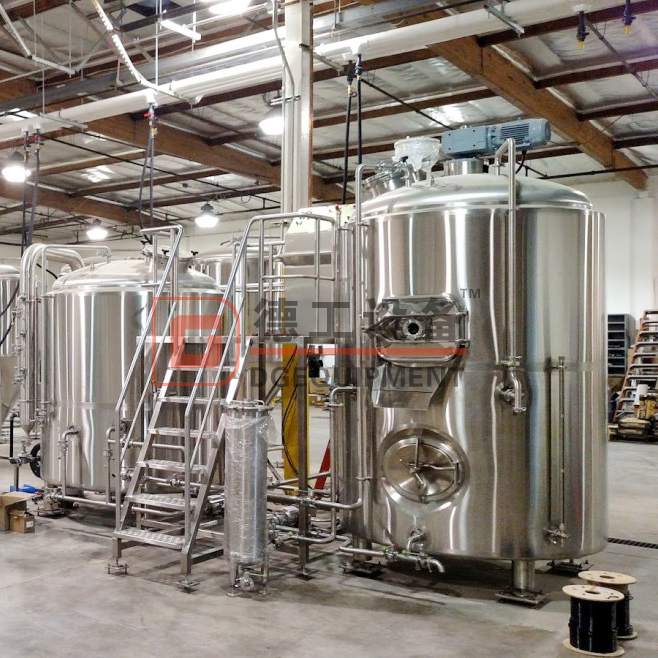

013

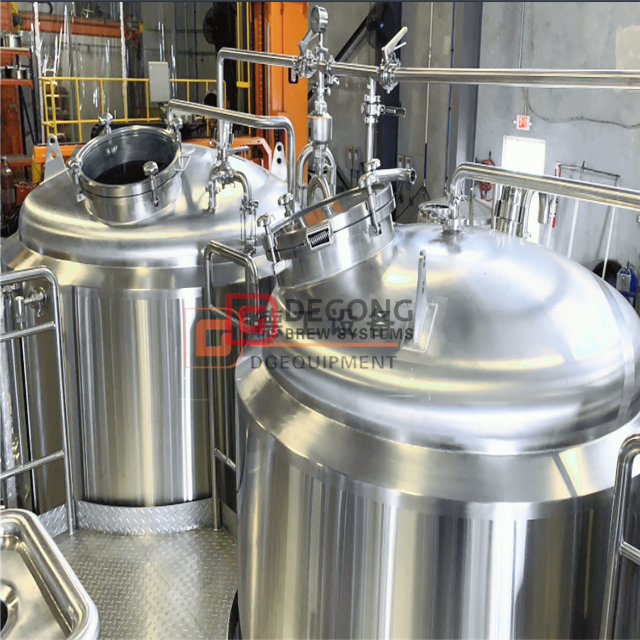

MASH SYSTEM
  • Material: Inner(SUS304),thickness: 3.0mm;

  • External-Jacket(SUS 304), thickness: 2.0mm;

  • Cylinder (sharp type, SUS304), thickness: 2.0mm.

  • Inner surface treatment: welds grinded to Ra 0.6µm.

  • Insulation: Polyurethane-thickness 100 mm.

  • Temperature way:Double metal thermometer

  • Outsourcing surface: Weld polishing processing

  • Jacket Pressure: design pressure 0.3 MPa, working pressure <0.2 MPa.

  • CIP 360 degrees Omni bearing cleaning

  • Integrated CIP System

  • Hot Liquor Tank –Designed and Sized for Double Brew efficiency

  • Cold Liquor Tank –Fully insulated and integrated

  • Stainless steel 304 pump with ABB or Siemens motors

  • Mash / Lauter Tun with grain raker

  • Boiling/whirlpool tank with whirlpool port and stir blades

  • 304 stainless steel operate platform and stairs

  • Plate heat exchenger design pressure :1.0Mpa

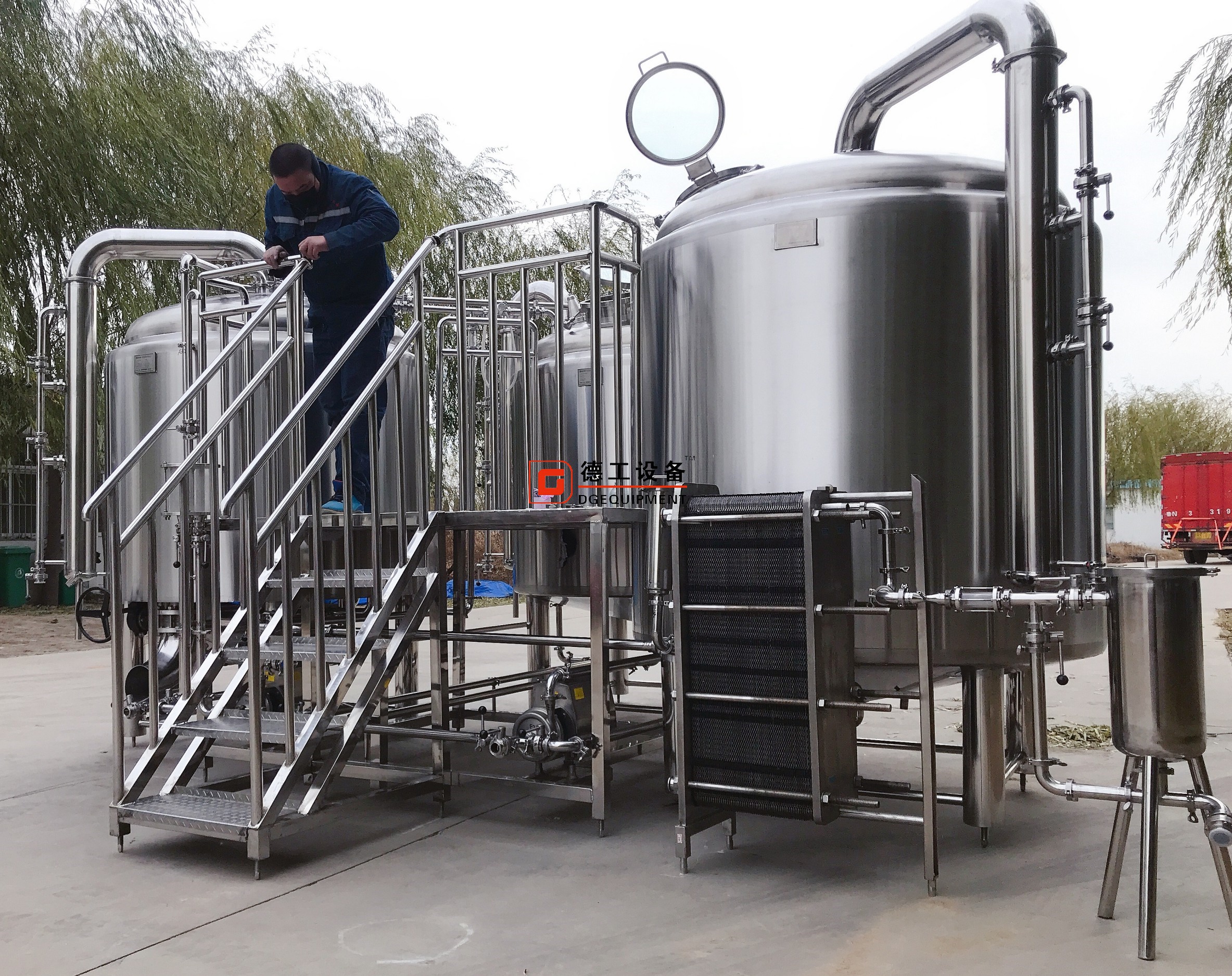

brewhouse111

3-vessel brewhouse system

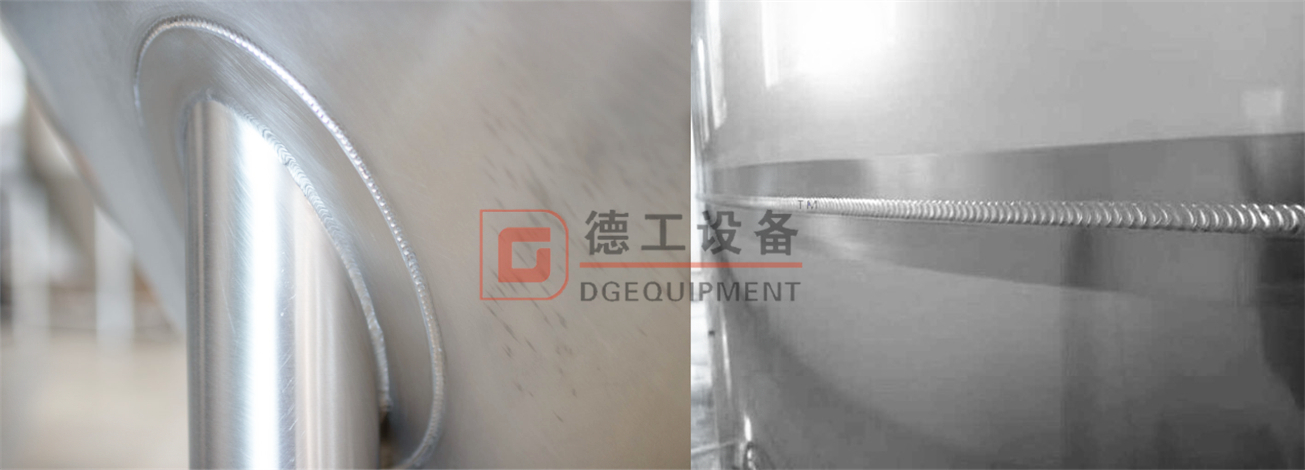

IMG_8633_副本

out surface treating of the tank


FERMENTATION SYSTEM

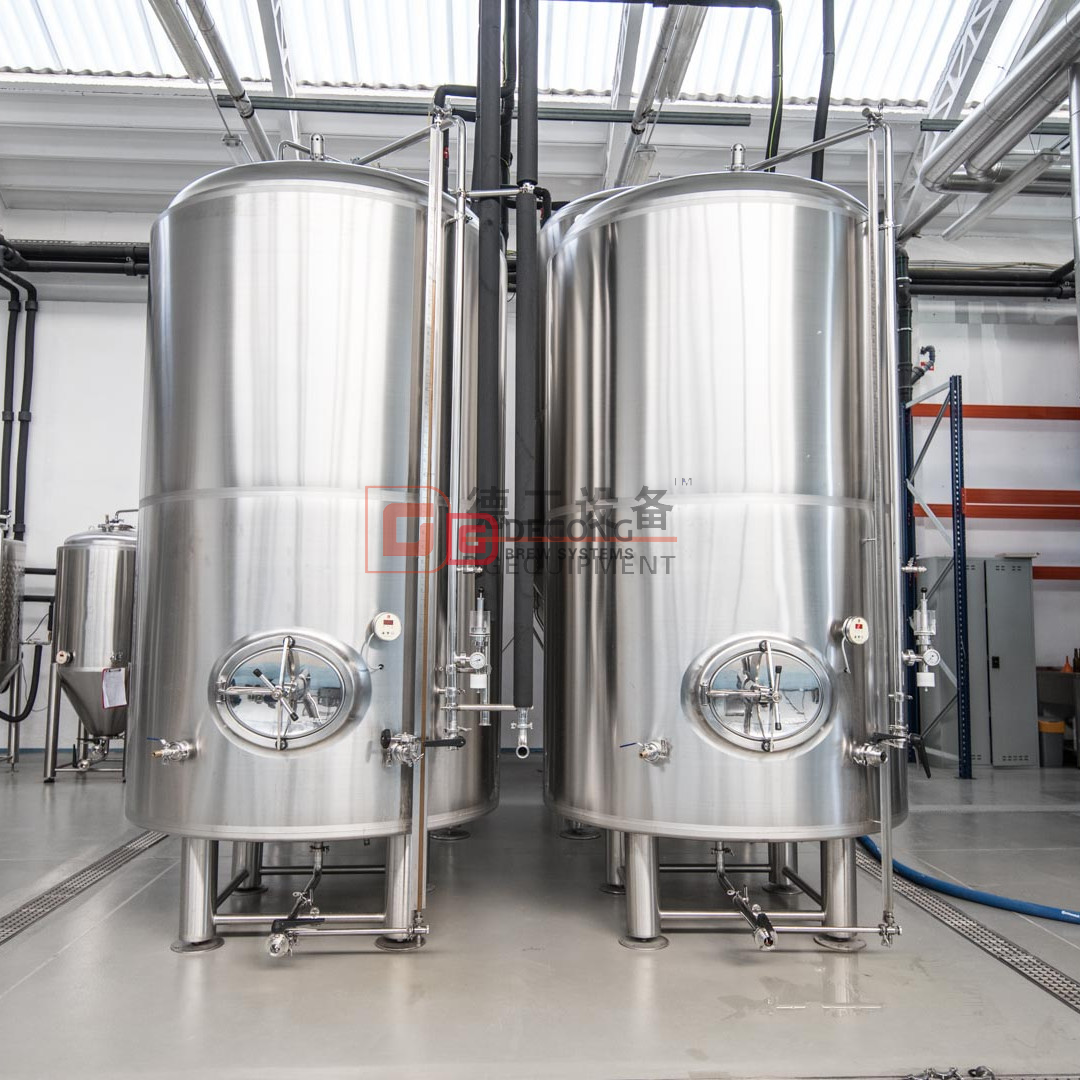

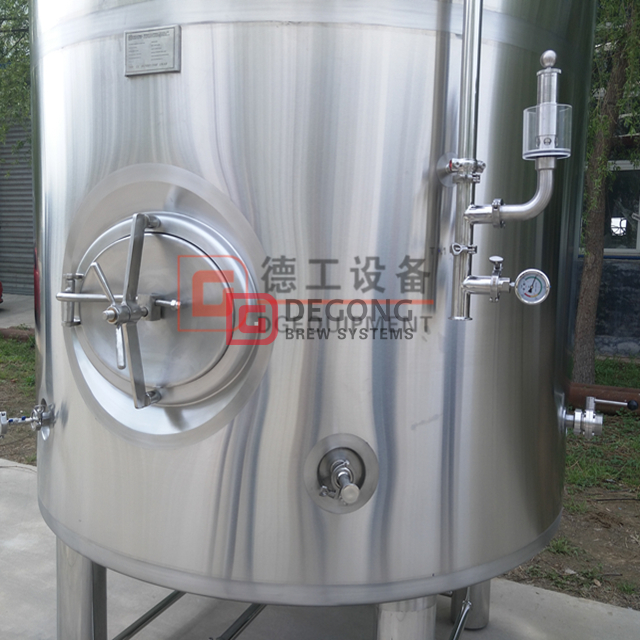

Technically speaking, the Fermentation system is consist of fermenter, yeast tank, brite beer tank , and accessories.

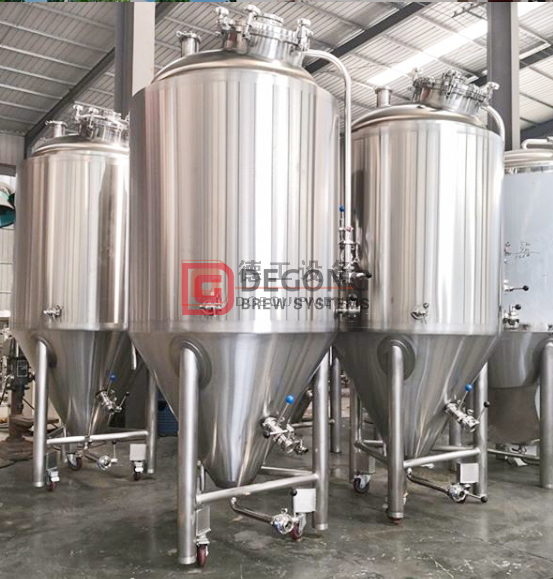

fermention tank


Technical parameter:


Material Inner (SUS304) thickness: 3.0mm; Outer (SUS304) thickness: 2.0mm;

External-Jacket(SUS304) thickness: 1.5mm;

Equipment with : cone 60°resist compression designdripping

100% TIG welding with pure argon gas shield

Interior Finish: Sanitary 2B finish, Pickled and Passivity; (8K Mirror finish optional)

Exterior Finish: Oil brushed finish (2B, 8K Mirror finish optional)

 Interior full polished to 0.2~0.4 μm without dead corner

Insulated with high density Polyurethane foam 100mm

Stringent Jacket leakage test by water and pressured gas

Sanitary side mounted manway with pressured door

TC connected CIP arm with 360° coverage spraying ball

Full sanitary metallic sealed sampling valve

Mechanical safe valve PVRV 2 bar on top

Hydraulic shock pressure gauge on CIP arm

Rotating racking arm and port on cone with butterfly valve

Tri-clamp discharge arm with butterfly valve

Thermowell for high accuracy temperature sensor

Dry hopping port 4'' TC with solid end cap

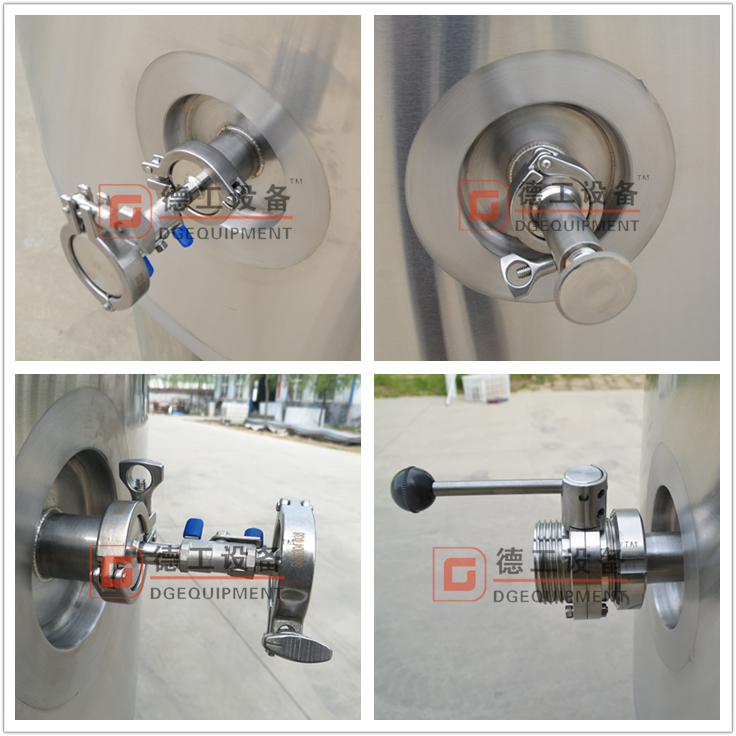

DSC_1026_wps图片_副本

accessories of fermenter and brite beer tank

COOLING STSTEM

Cooling system is always consisted of circulation pump, glycol water tank and chiller. How to equip a suitable cooling system depends on the quantity and capacity of fermenters. The glycol water tank is for filling the glycol water. And the chiller is for generating the cooling capacity to reduce the temperature of the glycol water heated by heat generated by fermentation process.


cold water tank

cold water tank

CONTROL SYSTEM


Control system is the soul of a whole set of brewery equipment. It controls the running of each components such as pump, motor and whole brewery system. Degong’s control system is a integrated box which houses the terminals of all components.


  • Semi automatic control system or PLC fully automatic control system if requested

  • Siemens/Schneider/Omron components

  • PC or mobile remote control if requested

  • Individual control system for brewhouse system and fermentation system


CONTROL SYSTEM


OUR CERTIFICATE


With the high standard of brewery equipment both in row materials and manufactures, DEGONG have passed 4 international certification: ISO9001,ISO14001,SGS ,TUV and CE.


01

PACKING&DELIVERY


Packaging Details: standard wooden package

Package Type : As usual, we adopt wooden case as package type. It's suitable for long-distance transport. According to customers' special demand, we could adopt sheet iron case and so on.

8LB`HS2MHYF)`H0O9D1_副本

CONTACT US


Every Brewhouse is unique and requires different specifications. Please shoot us an email or give us a call for a quote.
