Turnkey industrial 2000L jacket beer brewing equipment for sale

Overview

DEGONG is specialized in manufacturing different types of industrial breweries and microbreweries to different clients in the world. The full line products including milling, mashing, fermentation, cooling,controling, filling and other related processes. Working with all relevant partners, Degong can manage the design, engineering, build and installation of beer brewing euqipment that helps you achieve your unique brewing process and replicate it. In the end you will have a long-term, sustainable commercial beer brewing equipment that maximizes efficiency and space.

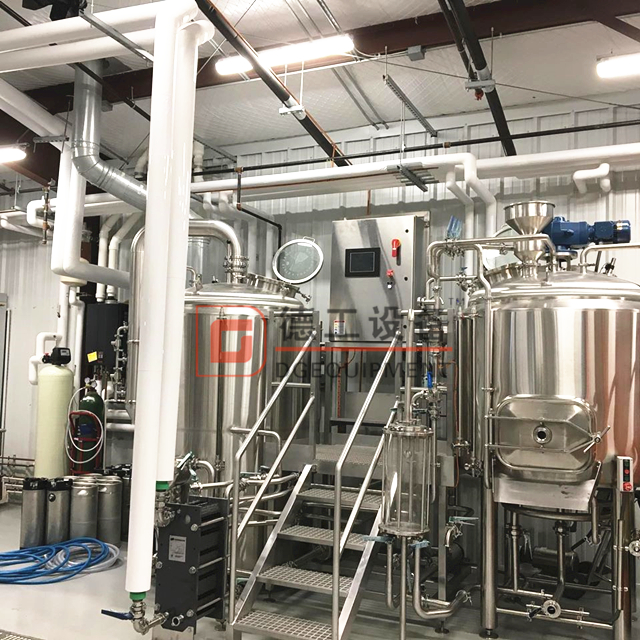

Mashing system of the beer brewing equipment

• Mush/brewhouse heated via steam,electric or direct fired

• Flexible brewhouse designs to accommodate your available square footage and ceiling heights

• Custom can design brew houses for sour beer production

• Configurations from 2-vessel to multi-vessel designs

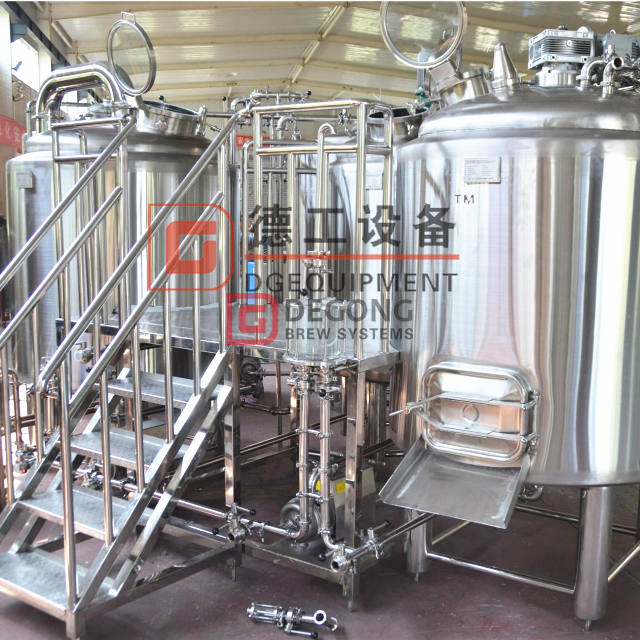

3-vessel brewhouse euqipment with side man hole

configuration details:

1. Material: Inner(SUS304),thickness: 3.0mm;

2. External-Jacket(SUS 304), thickness: 2.0mm;

3. Cylinder (sharp type, SUS304), thickness: 2.0mm.

4. Inner surface treatment: welds grinded to Ra 0.6µm.

5. Insulation: Polyurethane-thickness 100 mm.

6. Temperature way:Double metal thermometer

7. Outsourcing surface: Weld polishing processing

8. Jacket Pressure: design pressure 0.3 MPa, working pressure <0.2 MPa.

9. CIP 360 degrees Omni bearing cleaning

10. Integrated CIP System

11. Hot Liquor Tank –Designed and Sized for Double Brew efficiency

12. Stainless steel 304 pump with ABB or Siemens motors

13. Mash / Lauter Tun with grain raker

14. Boiling/whirlpool tank with whirlpool port and stir blades

15. 304 stainless steel operate platform and stairs

16. Plate heat exchenger design pressure :1.0Mpa

Weld polishing processing

components and accessories of the brewhouse equipmet

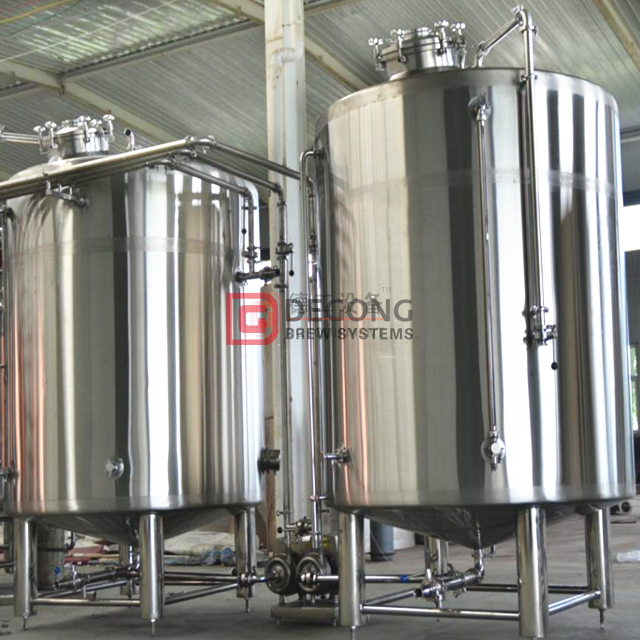

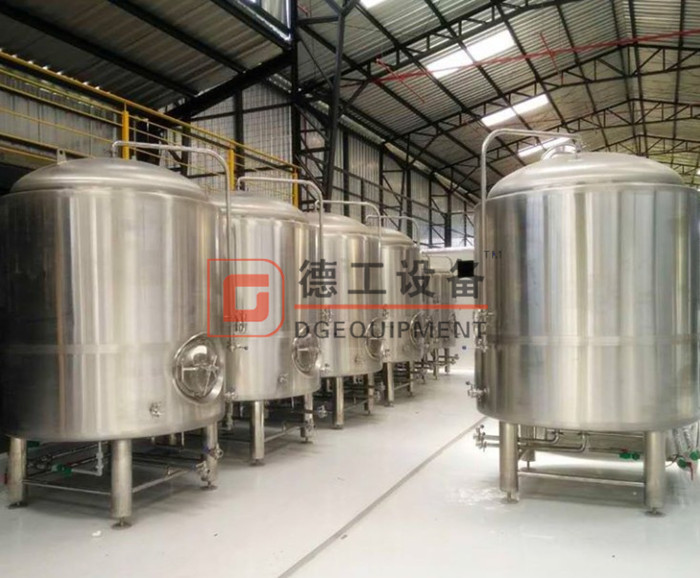

Fermentation system of the beer brewing equipment

Fermentation systems is made up of Fermentation Tank ,Bright Beer Tank, yeast adding tank and other accessories and quantities are based on customer's request. Technically speaking fermentation tank structure is dished head and cone bottom,with polyurethane installation and dimple cooling jackets .

pressure aguge anf side manhole of the fermenter

Configuration details:

1. Material Inner (SUS304) thickness: 3.0mm; Outer (SUS304) thickness: 2.0mm;

2. External-Jacket(SUS304) thickness: 1.5mm;

3. Equipment with : cone 60°resist compression design，dripping

4. 100% TIG welding with pure argon gas shield

5. Interior Finish: Sanitary 2B finish, Pickled and Passivity; (8K Mirror finish optional)

6. Exterior Finish: Oil brushed finish (2B, 8K Mirror finish optional)

7. Interior full polished to 0.2~0.4 μm without dead corner

8. Insulated with high density Polyurethane foam 100mm

9. Stringent Jacket leakage test by water and pressured gas

10. Sanitary side mounted manway with pressured door

11. TC connected CIP arm with 360° coverage spraying ball

12. Full sanitary metallic sealed sampling valve

13. Mechanical safe valve PVRV 2 bar on top

14. Hydraulic shock pressure gauge on CIP arm

15. Rotating racking arm and port on cone with butterfly valve

16. Tri-clamp discharge arm with butterfly valve

17. Thermowell for high accuracy temperature sensor

18. Dry hopping port 4'' TC with solid end cap

Cooing system of the beer brewing equipment

Cooling system is consisted of circulation pump, glycol water tank and chiller. The glycol water tank is for filling the glycol water. And the chiller is for generating the cooling capacity to reduce the temperature of the glycol water heated by heat generated by fermentation process.

• 7HP chiller, Power: 5.25KW, Cooling capacity: 16268Kcal,

• Refrigerant: Freon R404A, Copeland compressor

• 1500L glycol water tank

• Glycol water circulation pump, VFD control

• PPR pipe

2000L cold water tank

Control system of the beer brewing equipment

Control system is the soul of a whole set of beer  brewing equipment. It controls the running of each components such as pump, motor and whole brewery system. Degong’s control system is a integrated box which houses the terminals of all components.

• Semi automatic control system or PLC fully automatic control system if requested

• Siemens/Schneider/Omron components

• PC or mobile remote control if requested

• Individual control system for brewhouse system and fermentation system

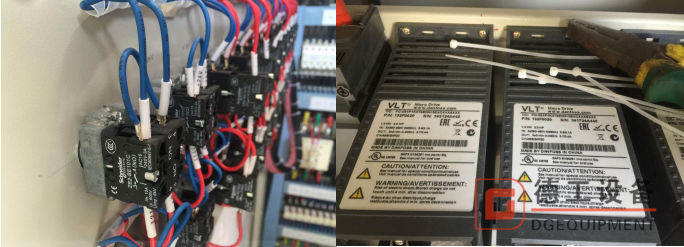

control cabinet

Packing&delivery

Standard packing:

Cord ,film membrane

Firm membrane, wood box for free fumigation

Delivery :

     - We put your order into our tight production schedule to ensure the punctual delivery time.

     - Production or inspection report before order packed.

     - Shipping notice/ insurance to you as soon as your order is shipped.

Our certificate

Beer brewing equipment of DEGONG  is coming with certifications of PED and our company is TUV approved. We use CE approved components for customers. The quality, specification and function all meet the treaty of contract.

Contact us

Every Beer brewing equipment is unique and requires different specifications. Please shoot us an email or give us a call for a quote.
