DG-500L
DEGONG

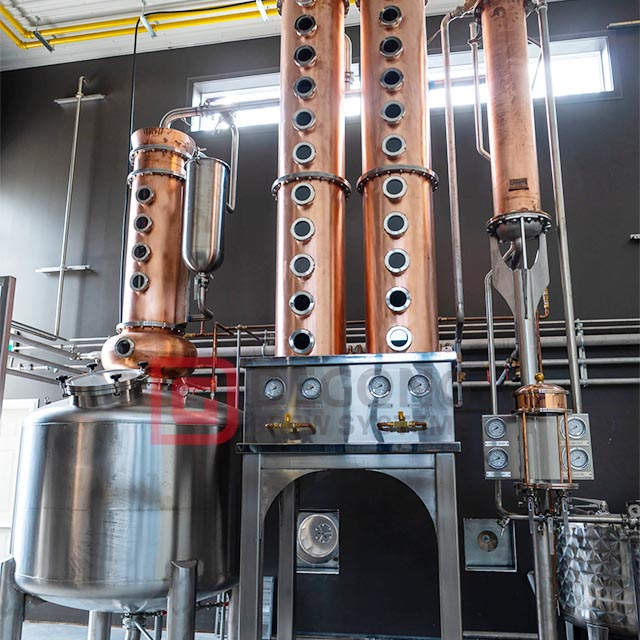

Pictured is our 500 L Steam Heated Whiskey Brandy Rum Vodka Gin Still. This distillation apparatus produces great whiskey, gin and everything in between with a copper column. The stainless steel whisky column has 8 bubble plates and a fractionator at the top. If you want to do a stripping run, all you have to do is open the plate drain valve in the copper whiskey tower. Perfect for whisky, bourbon, moonshine, brandy, rum and gin (with optional gin basket).
Still Pot
Actual volume: 675L
Working volume: 500L
Inner pot: TP2 red copper, thickness: 4mm, jacketed: SUS304, thickness: 4mm
Insulated: 50mm, PU
Stirring motor: Explosion proof mixer 0.75KW/46rpm
Outer shell: SUS304 fish wave plate, thickness: 2mm
Temperature control: PT100
Heating method: Steam heated
With φ350 glass manhole
CIP cleaning ball
Safety valve
Sight light, 8″ outfall
Swan neck
Material: TP2 red copper, thickness: 3mm
Connection method: flange connection , φ250
CIP cleaning ball
Sight glass
Still Column
Material: TP2 red copper, thickness: 3mm
Connection method: Tri-clamp, φ250
Red copper tubes, one column with 4 bubble trays. Each tray has bubble caps
CIP cleaning balls
Drain valve
Dephlegmator
Material: SUS304, thickness: 3mm
Connection method: Flange connection, φ250
Cooling water inlet and outlet
Gin basket
Material: SUS304, thickness: 3mm
Connection method: Flange connection, φ250
Copper filter net
Condenser
Material: SUS304, thickness: 3mm
Connection method: Flange connection, φ250
Cooling water inlet and outlet
Spirits outlet
Material: SUS304 with glass bell jar
Can put an alcohol hydrometer to measure the alcohol content
Support frame
Material: SUS304 fish wave plate
CIP pump
Material: SUS304
Power: 1.1KW
Control box
Material: SUS304
Control mixing motor, CIP cleaning pump, lighting and sight light
DEGONG 1000L Spirits Distillery Equipment
Service
Drawings: Engineers will make drawings for your confirmation before production.
Layout: The engineer will design the layout of how the distillation equipment/brewery equipment/fermenter will be placed.
Customization: Both equipment and tanks can be customized according to your requirements and your actual space.
Reports during production: We will take photos or videos here to report to you every step.
Installation: Our engineers can come to your site to install/debug the equipment.
After-sales service: We will continue to provide free after-sales service to answer your questions in a timely manner. If you have any questions, you can always contact us.
Contact us
The special attention we give in the final quality inspection of each work is also a guarantee of unparalleled reliability and robustness. If you have any needs or questions, please contact us.
