DG-1000L
DEGONG

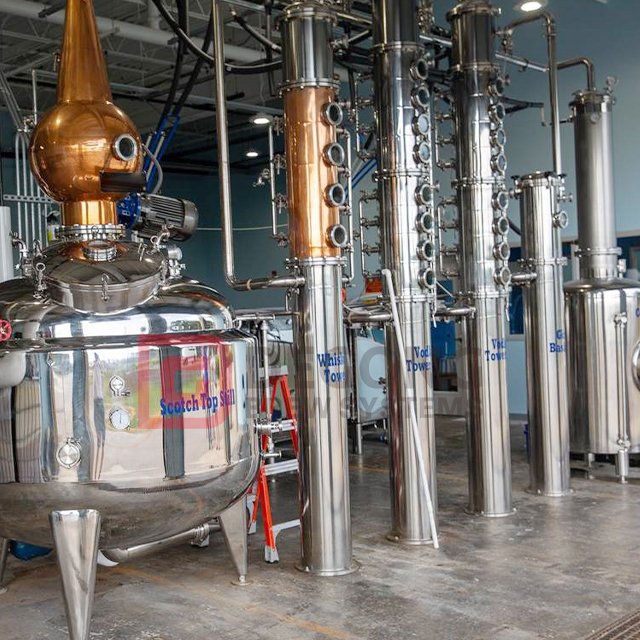

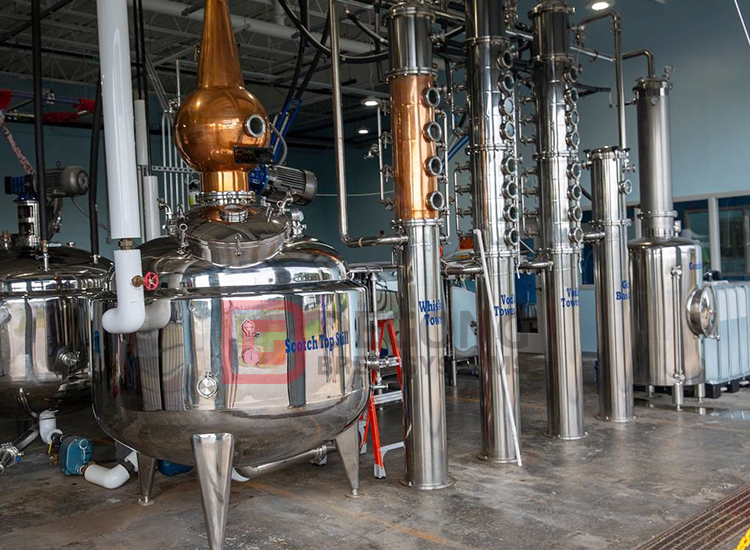

1000L Spirits Distillery Equipment
We can make brewing equipment for beer, wine, sparkling wine, whisky, gin, brandy, rum, etc. The equipment capacity is from 50L to 5,000L.
Beer equipment: including brewery, fermentation tank, Brite Tank, Mash Tun, Cip Trolley, etc.;
Wine equipment: including red/white/sparkling wine tanks, floating top wine tanks and full wine
Distilling equipment: including rum/whiskey/brandy/gin/vodka stills
| Main features |
Any size available
Customized service
Technical and drawing support
Swirl treatment, satin treatment or mirror treatment
CIP pump and accessories are available
Beautiful appearance and high hygiene level.
One machine for two purposes. Whiskey, rum, brandy, tequila, etc. can be brewed in one operation of the distiller, and the secondary distillation alcohol content can reach 95%, and methanol can also be removed.
The equipment is made of stainless steel and copper, with beautiful appearance and high hygiene level.
| Equipments Details |
Pot
Material: Stainless Steel 304 / Red Copper T2
Type: 1. single layer ;
2. with heating jacket only;
3. with heating jacket & PU insulation.
Accessories: thermometer, thermowell, pressure guage, pressure relief valve, inlet, outlet, breath valve, reflux hole, glass man hole, CIP ball, etc.
Agitator
Material: Stainless Steel 304, Union Connection, easy to installtion.
Voltage: 208V/ 220V/ 240V/ 380V/415V/ 460V etc ( can supply voltage according to customer request,
Motor with Explosion proof.
Gooseneck / Vapor Chamber
Material: Stainless Steel / Red Copper
Have different shape for option.

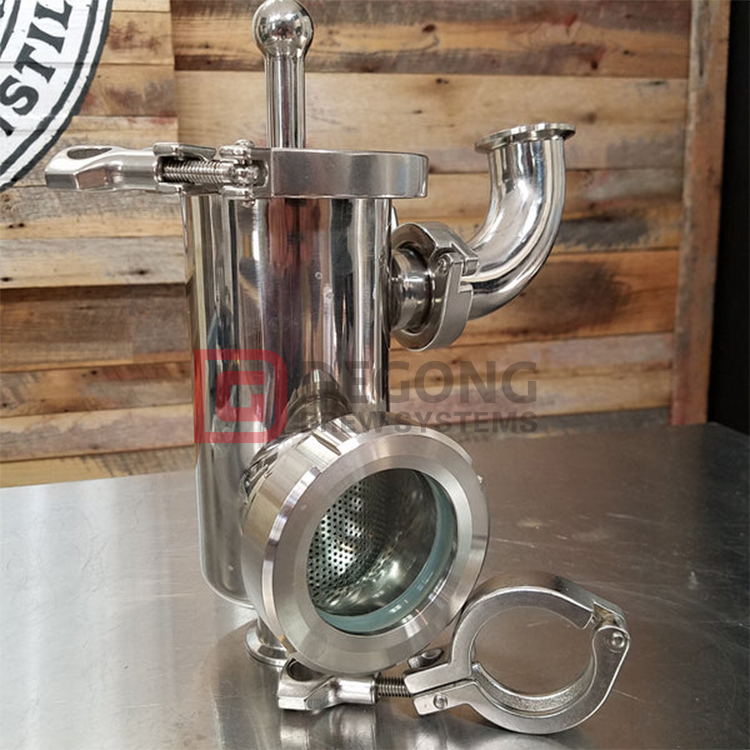

Gin Basket/ Botanical Basket
Enhance flavor and extended the range of your system.
For making Gin, Schnapps, etc.
Material: Stainless Steel/ Red Copper
Inside with removable filter basket, have different shape for opition.

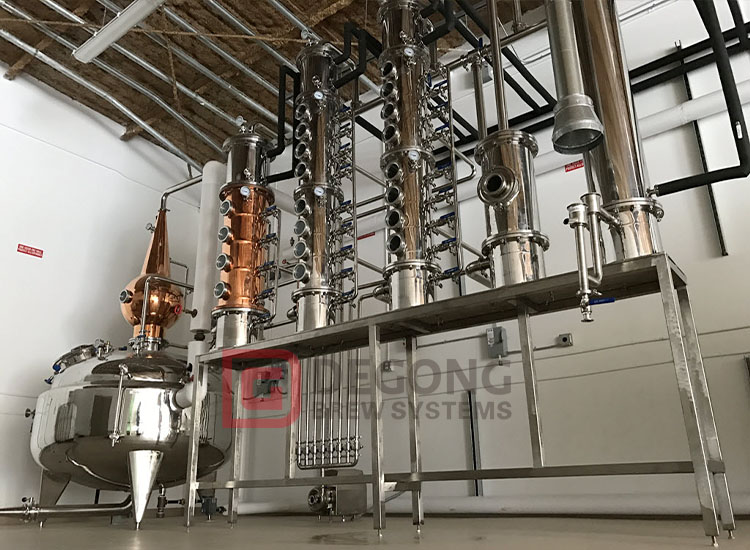

Distillation Column
We can tailor the height and plate number for your specific application.
The max height of column can reach 2000mm, up to 10 plates within a pair of flange.
For 70-90%abv: 4~6 plates; for 88-95%abv: 6~20 plates
| Contact us |
The special attention we give in the final quality inspection of each work is also a guarantee of unparalleled reliability and robustness. If you have any needs or questions, please contact us.
Contact Kate and my email: kate@degonget.com
1000L Spirits Distillery Equipment
We can make brewing equipment for beer, wine, sparkling wine, whisky, gin, brandy, rum, etc. The equipment capacity is from 50L to 5,000L.
Beer equipment: including brewery, fermentation tank, Brite Tank, Mash Tun, Cip Trolley, etc.;
Wine equipment: including red/white/sparkling wine tanks, floating top wine tanks and full wine
Distilling equipment: including rum/whiskey/brandy/gin/vodka stills
| Main features |
Any size available
Customized service
Technical and drawing support
Swirl treatment, satin treatment or mirror treatment
CIP pump and accessories are available
Beautiful appearance and high hygiene level.
One machine for two purposes. Whiskey, rum, brandy, tequila, etc. can be brewed in one operation of the distiller, and the secondary distillation alcohol content can reach 95%, and methanol can also be removed.
The equipment is made of stainless steel and copper, with beautiful appearance and high hygiene level.
| Equipments Details |
Pot
Material: Stainless Steel 304 / Red Copper T2
Type: 1. single layer ;
2. with heating jacket only;
3. with heating jacket & PU insulation.
Accessories: thermometer, thermowell, pressure guage, pressure relief valve, inlet, outlet, breath valve, reflux hole, glass man hole, CIP ball, etc.
Agitator
Material: Stainless Steel 304, Union Connection, easy to installtion.
Voltage: 208V/ 220V/ 240V/ 380V/415V/ 460V etc ( can supply voltage according to customer request,
Motor with Explosion proof.
Gooseneck / Vapor Chamber
Material: Stainless Steel / Red Copper
Have different shape for option.
Gin Basket/ Botanical Basket
Enhance flavor and extended the range of your system.
For making Gin, Schnapps, etc.
Material: Stainless Steel/ Red Copper
Inside with removable filter basket, have different shape for opition.
Distillation Column
We can tailor the height and plate number for your specific application.
The max height of column can reach 2000mm, up to 10 plates within a pair of flange.
For 70-90%abv: 4~6 plates; for 88-95%abv: 6~20 plates
| Contact us |
The special attention we give in the final quality inspection of each work is also a guarantee of unparalleled reliability and robustness. If you have any needs or questions, please contact us.
Contact Kate and my email: kate@degonget.com
