DEGONG 5HL
DEGONG
8438400000
Fully equipped pressure resistant, glycol jacketed, stainless steel cylindroconical vessel designed for fermentation, maturation and carbonisation of most types of beverages.
500L top manhole fermentation vessel
Max working pressure 2 bar
Rotatable racking arm with butterfly valve
Bottom drainage pipe 1.5″ with butterfly valve
Sanitary beverage sampling valve
Carbonation stone
Adjustable bunging valve
Manometer (pressure gauge)
Pressure sensor/transmitter
Mechanical safety breathing valve (PVRV) for both pressure relief (2 bar) and vacuum release
Thermowell for PT100 temperature sensor
High accuracy PT100 temperature sensor
Dished top and 60 degree cone bottom
Dimpled cooling zones
80 mm polyurethane foam insulation
TC connectors
Sanitary top/side manway, shadowless
4″ TC hop port on top
CIP arm with 360° coverage CIP spray ball
CE certified
SUS304 heavy duty legs with leveling pads
Total volume 620 liters
Working volume 500 liters (5HL)
100% TIG welded joints with sanitary polish and stringent controls, inspection and pressure testing. Stainless steel grade is 304 with finish 2B which has a surface finish of 0.1-0.5 RA. The fermenters are both pickled and passivated on the inside.

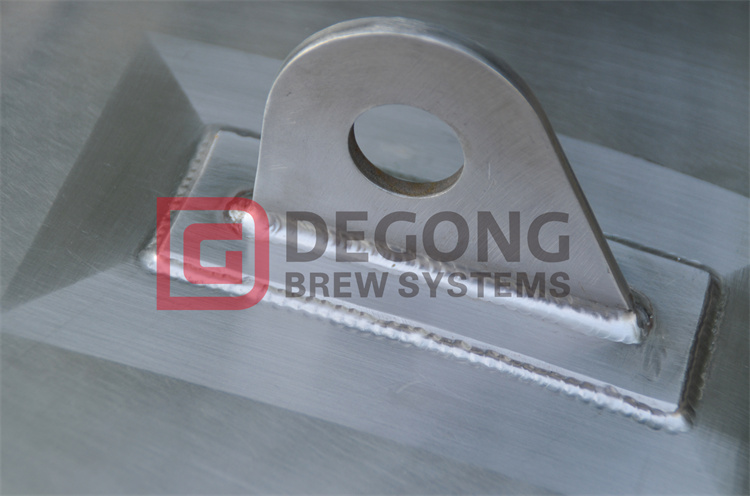

Fermentation tanks Lifting lugs
Fermenter Tank thermometer
For more detailed information, don’t hesitate to reach out to us via Contact information.
