DEGT-900L
DEGT
8438400000
900L Fermentation system is made of fermentation tank and bright beer tank. Scientific design is combined with the devices of CIP, cold water and temperature control. Beer is always under a low temperature condition for fresh preservation.In order to ensure the reliable performance of the brewery, we will use high-quality stainless steel, accessories and various parts according to the exquisite craftsmanship, deep experience and technology of the brewing industry.

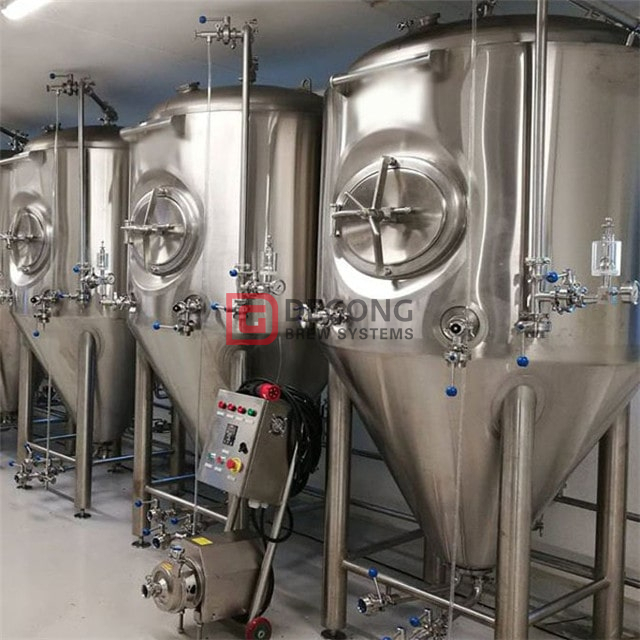

fermentation tank & bright beer tank
Configuration: fermentation tank, bright beer tank and accessories.
Feature:
1. With cone bottom, it is more convenient to recover yeast after main fermentation is completed, and the yeast strain used should have good cohesion. The angle of the cone bottom is usually between 60-90 degrees, which is conducive to the sedimentation and discharge of yeast.
2. The tank body is equipped with a cooling interlayer, and the cooling capacity can meet the process cooling requirements. The cylinder part of the tank is equipped with 2-3 cooling jackets, which is conducive to the sedimentation of the yeast and can keep the yeast activity well when it is reused.
3. The conical tank is airtight and can recover CO2; it can be used as a fermentation tank as well as bright beer tank.
4. The conical fermentation tank has a considerable height, so the natural convection of the beer in the tank is relatively strong. Convection intensity is related to tank height, tank shape, capacity and cooling system.
5. In order to reduce cost , conical fermentation tanks are mostly set in the open air, so the fermentation tank has a good insulation layer. Commonly used insulation materials are polyurethane, and the thickness is determined by the size of the tank.
Fermentation tank details
Control method: Temperature control, voltage-controlled and hand automatic control
Alternative manholes: Lateral manhole or top manhole. Racking arm is theoretical necessary.
Working pressure: 1.5-2 bar; Design pressure: 3 bar
With CIP pipe at the side to wash out tank thoroughly.
Thickness is same as the brewhouse system
Insulation: 80mm polyurethane (Polyurethane Thickness depends on the capacity of fermentation tank)
All components are included. Such as relief valve, mechanical regulation valve, pipes, hop adding hole, thermometer, temperature probe, sample valve, ice water solenoid valve.
Fermentation tank details
sight glass, sample valve, raking arm,drain outlet etc.
If you want to set up a brewery, please get in touch with me.
900L Fermentation system is made of fermentation tank and bright beer tank. Scientific design is combined with the devices of CIP, cold water and temperature control. Beer is always under a low temperature condition for fresh preservation.In order to ensure the reliable performance of the brewery, we will use high-quality stainless steel, accessories and various parts according to the exquisite craftsmanship, deep experience and technology of the brewing industry.
fermentation tank & bright beer tank
Configuration: fermentation tank, bright beer tank and accessories.
Feature:
1. With cone bottom, it is more convenient to recover yeast after main fermentation is completed, and the yeast strain used should have good cohesion. The angle of the cone bottom is usually between 60-90 degrees, which is conducive to the sedimentation and discharge of yeast.
2. The tank body is equipped with a cooling interlayer, and the cooling capacity can meet the process cooling requirements. The cylinder part of the tank is equipped with 2-3 cooling jackets, which is conducive to the sedimentation of the yeast and can keep the yeast activity well when it is reused.
3. The conical tank is airtight and can recover CO2; it can be used as a fermentation tank as well as bright beer tank.
4. The conical fermentation tank has a considerable height, so the natural convection of the beer in the tank is relatively strong. Convection intensity is related to tank height, tank shape, capacity and cooling system.
5. In order to reduce cost , conical fermentation tanks are mostly set in the open air, so the fermentation tank has a good insulation layer. Commonly used insulation materials are polyurethane, and the thickness is determined by the size of the tank.
Fermentation tank details
Control method: Temperature control, voltage-controlled and hand automatic control
Alternative manholes: Lateral manhole or top manhole. Racking arm is theoretical necessary.
Working pressure: 1.5-2 bar; Design pressure: 3 bar
With CIP pipe at the side to wash out tank thoroughly.
Thickness is same as the brewhouse system
Insulation: 80mm polyurethane (Polyurethane Thickness depends on the capacity of fermentation tank)
All components are included. Such as relief valve, mechanical regulation valve, pipes, hop adding hole, thermometer, temperature probe, sample valve, ice water solenoid valve.
Fermentation tank details
sight glass, sample valve, raking arm,drain outlet etc.
If you want to set up a brewery, please get in touch with me.
