400L Microbrewery Nano Fully Automatic Electric Heating Beer Brewing Machine for Sale Online

400L brewery equipment, this complete of DEGONG Factory Beer Making Equipment is special designed for the micro brewery, brewpub, restaurant, beer bar, homebrewing, brewery, hotel beer brewing, craft beer brewery...This set of brewing system including 6 systems, which including malt milling system, mashing system, fermentation system, refrigerating system, CIP system, controlling system. All the tanks can be used by SUS 304/316, red copper,all the material are customized.

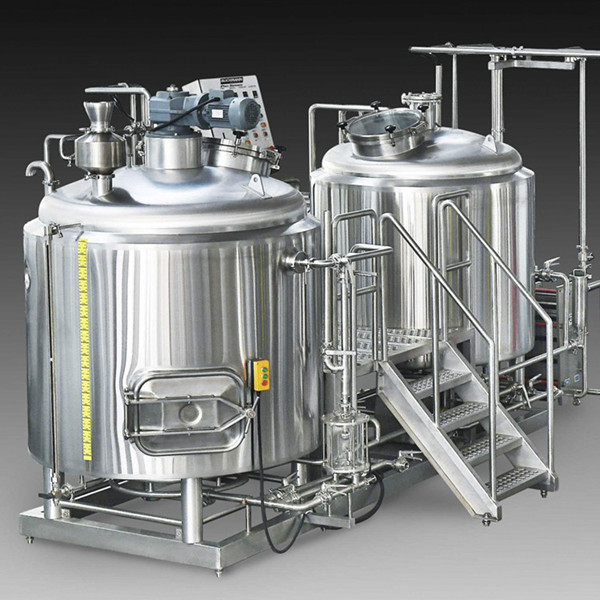

All kinds of brewhouse unit

Brewhouse unit

Mash/lauter tun + boiling/whirlpool tun + hot water tank

Brewhouse unit feature

Heating method

Steam heating(we recommend): It is one of the most stable heating. It needs a bolier, there is electric bolier, diesel bolier and gas bolier.

Electric heating: It need electric heating tube.

Direct fire heating: There is a boiler under the mash equipment to burn gas or coal. Now the direct fire heating equipment mainly burns gas.

Generally speaking,electric heating is better and more efficient.But the electric is very expensive in some countries,or it is very inconvenience in some breweries,then they will choose direct fire heating. Although direct fire heating equipment is more expensive than electric heating,but its using cost is cheap for them.

Brewhouse unit details

• A variety of mashing systems, customize design, can achieve multi-stage mashing.

• High-efficiency dimple jacket heat transfer technology, the application of scientific steam turbulence principle to achieve maximum heat transfer, energy saving effect is obvious.

• The thickness of the jacket is 2.0mm. The cylinder and bottom of the cone are covered with a jacket to ensure the heat exchange area.

• Using polyurethane or rock wool insulation, the surface temperature of the equipment is nearly the same as room temperature.

• Pipes, fittings and valves between the equipments are connected by sanitary quick-connecting parts, which are convenient for disassembly, assembly, movement and modification.

• Stirring and cultivating cutters can be equipped with frequency converters to meet the needs of customers' mixing speed and protect motors and rakes.

• Self-filtering and pump frequency conversion filtration, effectively solve the problems of tight wheat, agglomeration, and turbid wort.

Brewhouse unit details

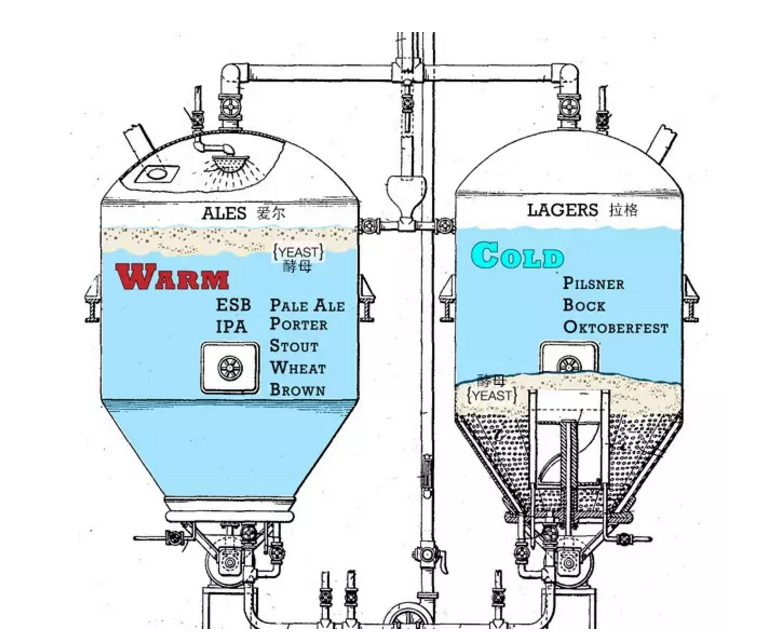

Fermentation vessel(FV)

• Commercial brewery fermentaion vessel system, pipeline

• The inner tank thickness is usually 3mm, the outer casing 2mm, polyurethane insulation layer, thickness 80 or 100mm;

• The outside of the inner tank is designed with cooling jacket. The cooling area is determined according to the size of the fermenter. Generally, the cylinder and the cone are belted. The cylinder part can be divided into two sections or even multiple sections according to the size of the fermenter;

• Fermentation tank with a titanium rod can be used as fermenter and bright beer tank;

• The size of the fermenter can be customized according to the customer's site;

• The outer tank is usually made of stainless steel wire drawing board, can also be made of fish scale board, or mirror polished;

• Supported valves: breathing valve, hop add port, escalator mounting ear, cleaning ball, mechanical pressure regulating valve, sampling valve, stainless steel pressure gauge, wine valve, drain valve, thermometer, etc.

• Under the premise of meeting the technical requirements, we can customize the most cost-effective brewing equipment for customers.

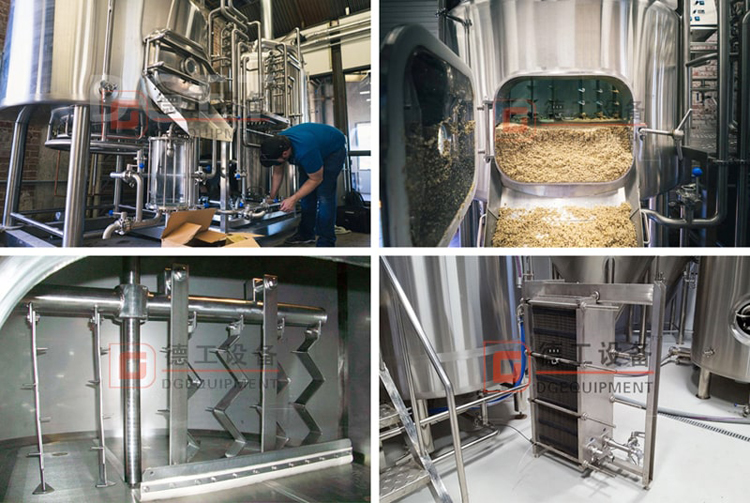

Fermentation vessel details

Auxiliary system

If you are interested in beer brewery equipment, please get in touch with me.
