600L/5BBL beer brewery equipment used 2 Vessels electric Brewhouse and stainless steel 304 isobaric fermentation tank
Home » Brewery Equipment » Beer brewery equipment » 600L/5BBL beer brewery equipment used 2 Vessels electric Brewhouse and stainless steel 304 isobaric fermentation tank

Product Detail

Share to:

600L/5BBL beer brewery equipment used 2 Vessels electric Brewhouse and stainless steel 304 isobaric fermentation tank

Small breweries or micro breweries are generally suitable for independently owned breweries that are much smaller than large corporate breweries. The features of this type of brewery usually emphasize flavor and brewing technology. We offer a Microbrewery (mini brewery) with the productivity of 1000L (10 hl) to 5000L (50hl) per brew. The service content includes: complete set of micro-brewing equipment, installation transition, recipes and technology, staff training, etc. The performance of your micro brewery (brewery and mini brewery) is completely "turnkey". The performance of your micro brewery (brewery and mini brewery) can be improved in the future if necessary.

Thickness of material (mm):
Insulation:
Heating method:
Construction:
Material:
Quantity:
  • DGET- 600L
  • DGET
  • 8438400000


Small breweries or micro breweries are generally suitable for independently owned breweries that are much smaller than large corporate breweries. The features of this type of brewery usually emphasize flavor and brewing technology. We offer a Microbrewery (mini brewery) with the productivity of 1000L (10 hl) to 5000L (50hl) per brew. The service content includes: complete set of micro-brewing equipment, installation transition, recipes and technology, staff training, etc. The performance of your micro brewery (brewery and mini brewery) is completely "turnkey". The performance of your micro brewery (brewery and mini brewery) can be improved in the future if necessary.

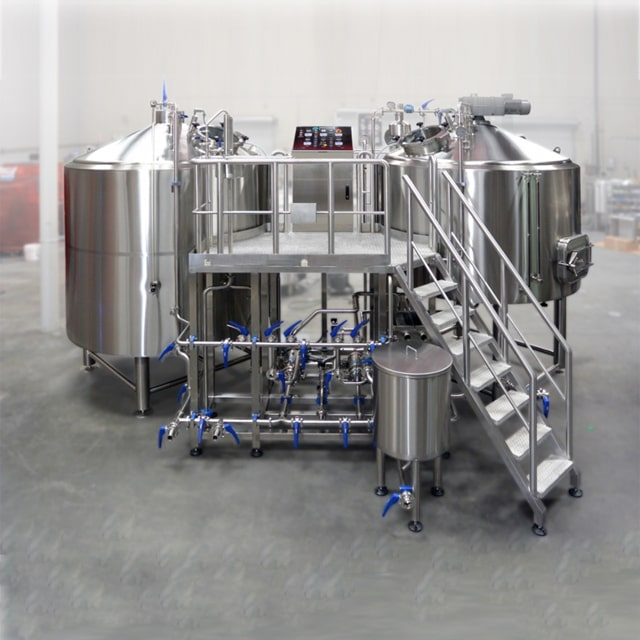

2 Vessels Brewhouse

2 vessels brewhouse was consist of Mash/Lauter tun, Kettle/Whirlpool Tun(Hot water tank as optional).

The brewhouse was equipped with lauter pump,wort pump, heat exchange plate, cold-hot water mixer, pipeline, valve and controller.


Configuration of 2 vessels brewhouse

600L Mash/Lauter Tun + 600L Boil Kettle/Whirlpool Tun
600L Mash/Lauter Tun/Hot Liquor Tank Combi vessel + 600L Boil Kettle/Whirlpool Tun
600L Mash/Lauter Tun + 600L Boil Kettle/Whirlpool + 1200L Hot Liquor Tank

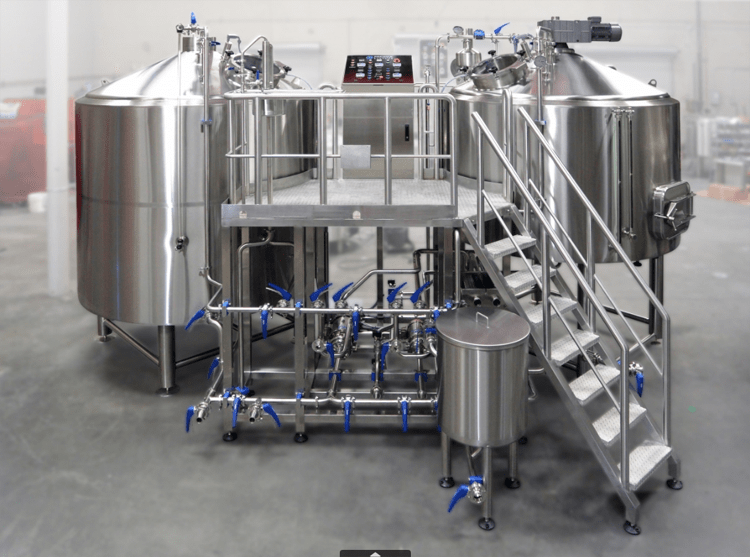

2 vessels brewhouse


Standard Features:

• 1 x Mash/lauter tun vessel with side and bottom grain out doors,dual steam jackets

• 1 x Brew kettle/whirlpool vessel with multi steam jackets

• 1 x SS lauter rakes and grain out with variable speed control, auto lifting with VFD

• 1 x SS work platform with sanitary process piping sanitary valves

• 1 x Sanitary wort pumps with variable speed control

• 1 x SS wort grant

• I x Sanitary heat exchanger and wort aeration system

• 2 x Tank LED light assemblies

• I x SS Electric cabinet for control system

• I x Touch screen and PLC Control system

• 2 x Thermowell for high accuracy temperature sensor

• 1 x Mash hydration assembly

• 1 x CAD layouts, installation assistance, assembly, training


组装750-min2


 mash details


600L brewery equipment details

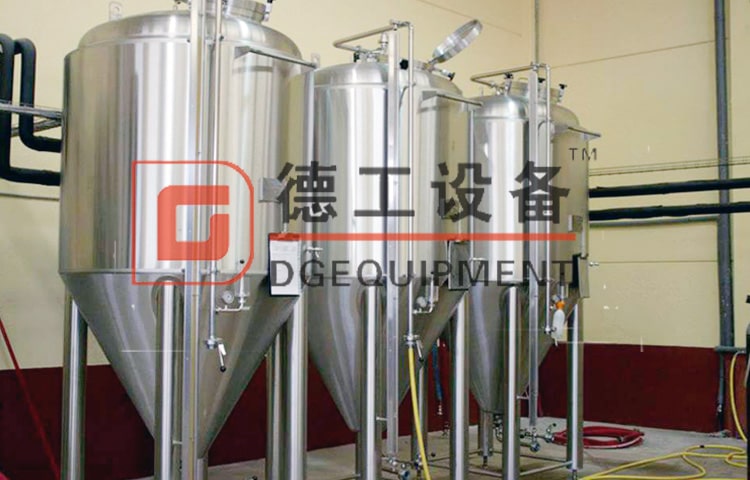

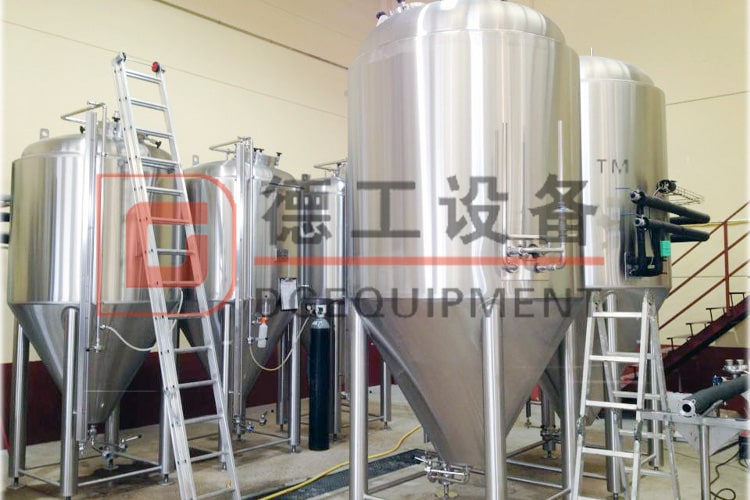

Fermentation tank  introduction

Fermentation tanks, or more commonly fermenters, are key components in beer brewing. Fermenters are specialized tanks designed to precisely control temperature and maintain the optimal conditions for fermentation, which occurs once the wort has been transferred from the brewhouse to the fermenter; a conical-bottom design is highly recommended for fermenters allowing for easier yeast harvesting.


600L brewery equipment fermenter


fermentation tank details


100l-10000L;1BBL-100BBL

100% food-grade 304 and 316 stainless steel

All fermenters are rated to 1 bar(0.1Mpa) operating pressure

Two-zone glycol jacket encompasses the 60-degree conical cone and sidewalls

Top manway or side manway

Complete thermal insulation of side walls and cones,All insulation is polyurethane

All welds are blended and finished to a sanitary food-grade finish

Fermenter fittings: lifting ears,dry hopping,pressure release valve,pressure gauge,spunding valve,temperature gauge,carb stone,racking arm,CIP arm,drain outlet and complete valves.


Contact information


company introduction_副本servide

01


The complete brewing system also should contain malt crush system,bright beer tank,cooling system,CIP system,control system,kegging or bottling or canning machine,filter system,water treatment device,pasteurization machine and so on.


If you want to know more details,welcome to contact me.
