DGET-15HL
DGET
8438400000
Desiging tanks and heating system according to craft, mash tank warming≥10℃/min
Energy saving stir structure : large cross-section impeller, 15r/min speed
Sieve plate of filter tank includes welding sieve plate and milling sieve plate.
Wort boiling heat way includes steam jacket, interior heating and exterior heating.
Material includes stainless steel 304, 316 and red copper
Whether your in need of additional Fermenters or Bright Tanks for your existing brewery, or need an entire Brewhouse we have you covered. We can have any tank custom built to your specific size and style requirements. Copper Cladding is available on any fermenter, bright tank, mash tun/ brew kettle, lauter tun/ whirlpool etc.
beer production line

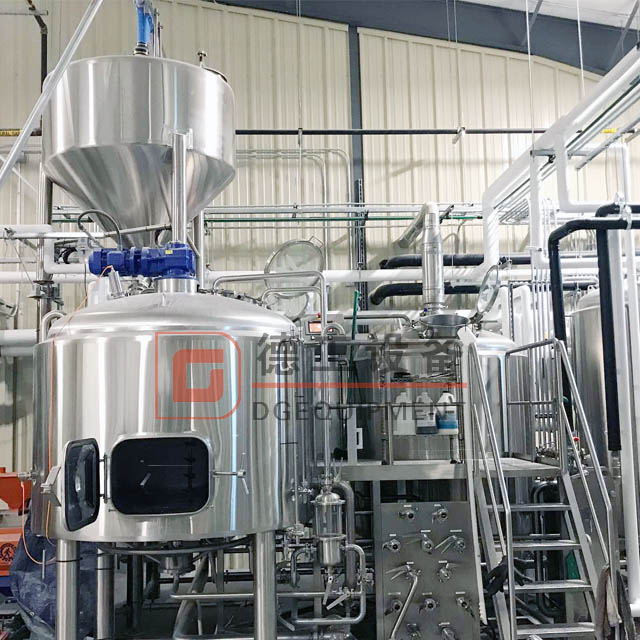

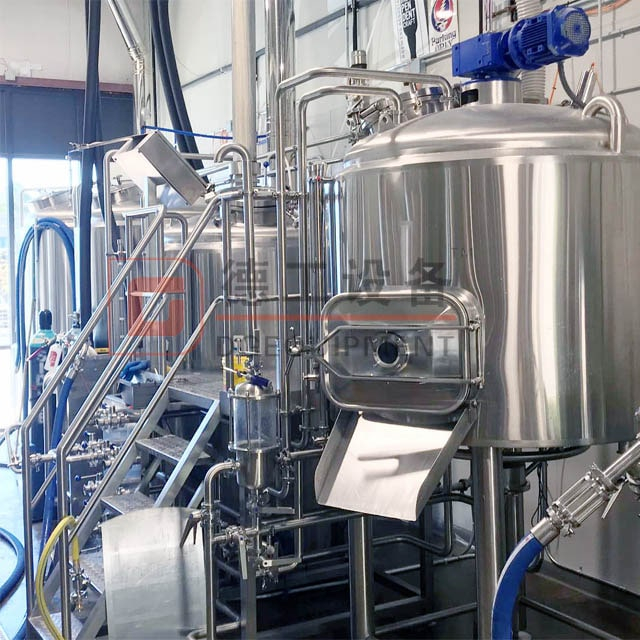

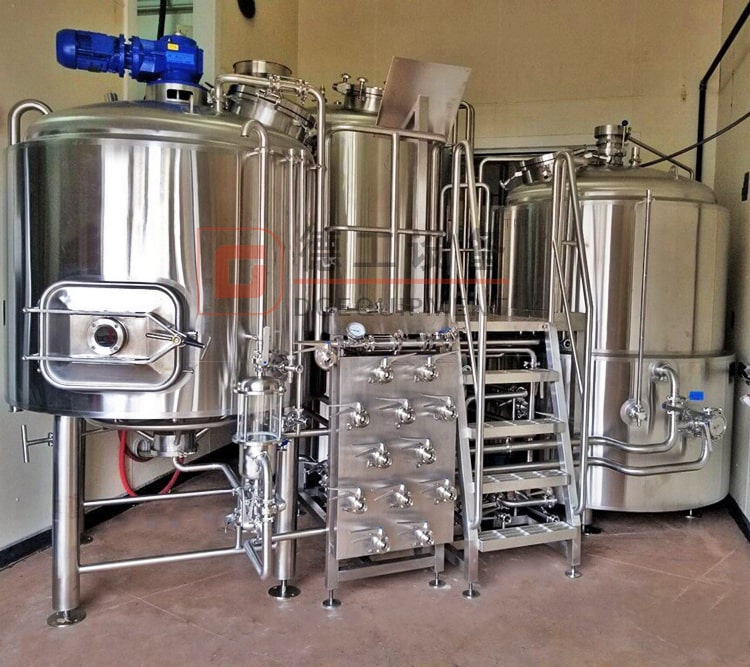

The brewhouse, one of the most important parts of our beer brewing equipment, integrates mashing, boiling, lautering and whirlpool functions. It is mainly made up of the mash tun, brew kettle, lauter tun, whirlpool tank, wort pump, plate cooler, wort oxygenerator, electric control system, platform, as well as pipes and fittings. According to clients demands, we can make the brewhouse into a system with two, three, four or five vessels.
Heating method: electric heating, steam heating, direct fire heating.
Capacity: 100L, 300L, 500L, 1000L, 2000L
raker, side manhole, glass top manhole, adding hops
The fermentation process includes pre-fermentation and fermentation. The pre-fermentation tank is also called open fermentation tank. The fermentation tank is a kind of cylindro-conical vessel.
Dimple jacketed cylinder conical fermentation tank
The fermentation tank, with conical bottom and a cylindrical body, is a piece of major equipment of our beer brewing equipment. It is suitable for the small scale beer manufacturers, especially for draft beer brewing in pubs, hotels and tourist resorts.
After filtration and inoculated with yeast for fermentation, the cold wort is delivered to the fermentation tank via the inlet.
The heat generated during the fermentation is taken away through refrigerant in the jacket, which allows for stable fermentative process. The wort temperature, yeast quantity, fermentation time are subject to the fermentation process requirement.
The working temperature inside the tank is 2~15℃, and the working pressure on the top of the tank is 0.1MPa.
When the wort fermenting liquor reach the technological requirement, the sediment yeast is discharged first and then the fermentation liquor. After emptying the fermenting liquor, the tanks need to be cleaned completely for next beer making process.
The system uses ethylene glycol as refrigerant to perform heat exchanging in the dimple jacket.
SUS304 beer fermenter
Bright beer tank has elliptical bottom or cone bottom. It is the main equipment before beer packing. It is used to store the beer after filtration, The working temperature inside the tank is 2~4℃, and the working pressure on the top of the tank is 0.2~0.3MPa. Brewers should completely clean the tank for next process after the tank is emptied. The system uses glycol as refrigerant to perform heat exchanging in the dimple jacket.
butterfly valve, pressure valve, cabonation stone&bright beer tank
professional home microbrewery:50L~200L mini brewery, for home brewery fan, mini brasserie
basic home brewing equipment: 100L~5000L, 5BBL~30BBL, 1hl~50hl or even larger
Fermenters/Unitanks:50L~10000L
Bright beer tanks/Serving tanks: 50L~10000L
Beer selling: Beer selling tanks, beer machine, bar used beer tap/tower

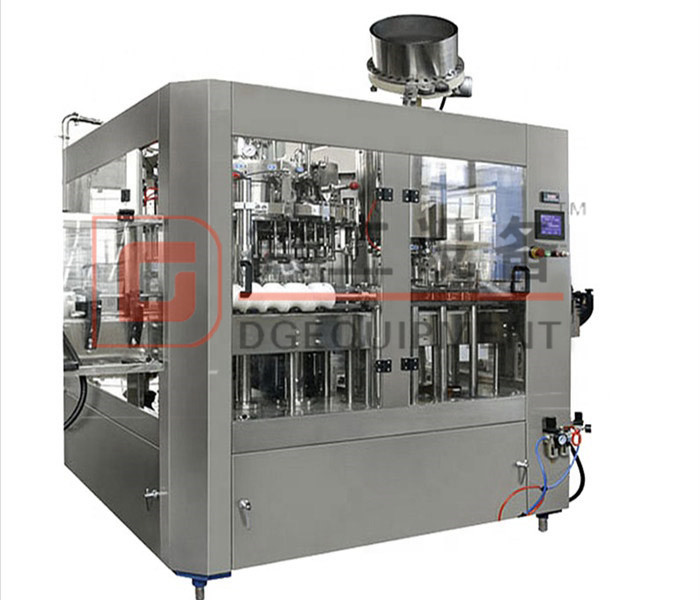

Bottling: manual/semi-auto bottle filling, bottle rinser, bottle washing, capping machine

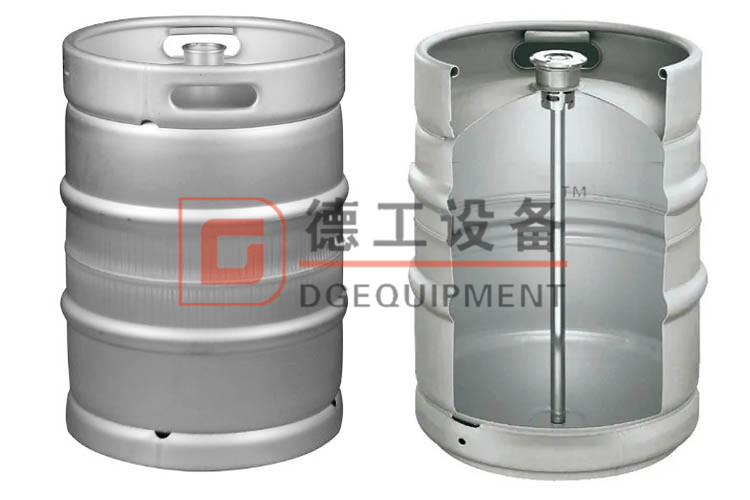

Kegging: stainless steel beer kegs, dispensers, single-head keg filling&Washing
filling system
stainless steel beer barral
If you are interested in beer production line, please feel free to contact me.
Desiging tanks and heating system according to craft, mash tank warming≥10℃/min
Energy saving stir structure : large cross-section impeller, 15r/min speed
Sieve plate of filter tank includes welding sieve plate and milling sieve plate.
Wort boiling heat way includes steam jacket, interior heating and exterior heating.
Material includes stainless steel 304, 316 and red copper
Whether your in need of additional Fermenters or Bright Tanks for your existing brewery, or need an entire Brewhouse we have you covered. We can have any tank custom built to your specific size and style requirements. Copper Cladding is available on any fermenter, bright tank, mash tun/ brew kettle, lauter tun/ whirlpool etc.
beer production line
The brewhouse, one of the most important parts of our beer brewing equipment, integrates mashing, boiling, lautering and whirlpool functions. It is mainly made up of the mash tun, brew kettle, lauter tun, whirlpool tank, wort pump, plate cooler, wort oxygenerator, electric control system, platform, as well as pipes and fittings. According to clients demands, we can make the brewhouse into a system with two, three, four or five vessels.
Heating method: electric heating, steam heating, direct fire heating.
Capacity: 100L, 300L, 500L, 1000L, 2000L
raker, side manhole, glass top manhole, adding hops
The fermentation process includes pre-fermentation and fermentation. The pre-fermentation tank is also called open fermentation tank. The fermentation tank is a kind of cylindro-conical vessel.
Dimple jacketed cylinder conical fermentation tank
The fermentation tank, with conical bottom and a cylindrical body, is a piece of major equipment of our beer brewing equipment. It is suitable for the small scale beer manufacturers, especially for draft beer brewing in pubs, hotels and tourist resorts.
After filtration and inoculated with yeast for fermentation, the cold wort is delivered to the fermentation tank via the inlet.
The heat generated during the fermentation is taken away through refrigerant in the jacket, which allows for stable fermentative process. The wort temperature, yeast quantity, fermentation time are subject to the fermentation process requirement.
The working temperature inside the tank is 2~15℃, and the working pressure on the top of the tank is 0.1MPa.
When the wort fermenting liquor reach the technological requirement, the sediment yeast is discharged first and then the fermentation liquor. After emptying the fermenting liquor, the tanks need to be cleaned completely for next beer making process.
The system uses ethylene glycol as refrigerant to perform heat exchanging in the dimple jacket.
SUS304 beer fermenter
Bright beer tank has elliptical bottom or cone bottom. It is the main equipment before beer packing. It is used to store the beer after filtration, The working temperature inside the tank is 2~4℃, and the working pressure on the top of the tank is 0.2~0.3MPa. Brewers should completely clean the tank for next process after the tank is emptied. The system uses glycol as refrigerant to perform heat exchanging in the dimple jacket.
butterfly valve, pressure valve, cabonation stone&bright beer tank
professional home microbrewery:50L~200L mini brewery, for home brewery fan, mini brasserie
basic home brewing equipment: 100L~5000L, 5BBL~30BBL, 1hl~50hl or even larger
Fermenters/Unitanks:50L~10000L
Bright beer tanks/Serving tanks: 50L~10000L
Beer selling: Beer selling tanks, beer machine, bar used beer tap/tower
Bottling: manual/semi-auto bottle filling, bottle rinser, bottle washing, capping machine
Kegging: stainless steel beer kegs, dispensers, single-head keg filling&Washing
filling system
stainless steel beer barral
If you are interested in beer production line, please feel free to contact me.
