10HL Beer Brewing System with Steam Heating Craft Beer Brewery Equipment for Beer Making Equipment SUS304 Or Red Copper Online

10HL beer equipment brief introduce

• Grain mill machine

• 10HL brewhouse system with steam/electric/direct fire heating

• Pump with ABB motor

• Stainless steel 304 operation platform

• 10HL or 20HL fermentation tank & bright beer tank

• Cooling system with glycol tank, chiller

• CIP system

• PLC control system

• Keg washer/filler

DEGONG equipment advantage

1.Mirror Polishing

Inside Polishing: Overall polishing to 0.4μm without dead corner .

Outside Polishing: Mirror polishing, smooth enough and passivating treatment.

Purpose: Make sure the inner tank smooth enough to avoid form any dead cornor which caused bad taste in the wort beer. Outer tanks looks more like an artwork.

2.100% WIG Welding

All welding is TIG welding.

All welding is Full welding.

All welding is double side welding.

Purpose: The use of argon on the protection of metal welding material, So that welding can not be in contact with oxygen in the air, thus preventing the oxidation of welding consumables.Which Makes tanks durable and strong.

3.False bottom plate

Equipped in Lauter tank, Laser milling

Filter gap: 0.8mm

This filter plate is strong, filter fast and leak no any grist. Which has a good effect in Separating wort and impurities.

10HL beer brewhouse system

Combination:

• 2-vessel:M/L+B/W

• 3-vessel:M/L+B+W or M+L+B/W

• 4-vessel:M+L+B+W

Optional: hot water tank

Heating method: steam/electric/direct fire heating

Brewhouse system technical parameter

Outside wall, SUS 304, thickness: 2mm

Inside wall, SUS 304, thickness: 3mm

Dome top and cone bottom, 160 degree

Insulation: Polyurethane, thickness:100mm

Interior Finish: Fine polishing to 0.4~0.6um without dead corner

All TIG welding with pure argon protection

Top mounted manway

Side manway for spent grains

False bottom for lauter tun, thickness: 5mm, wedge type, assemble and disassemble

Sight glass after lautering

Tangential inlet for whirlpool

Sparging arm for lauter tun

VFD controlling for pumps and motors

Automatic or semi-automatic control with pneumatic butterfly valves or electronic

Plate heat exchanger, two stages for glycol water and cool water

360° CIP spraying ball

Thermowell with high accuracy temperature sensor: PT100

4 support legs

Optional:

Level indicator

Grist case/conical malt hopper

Grist hydrator

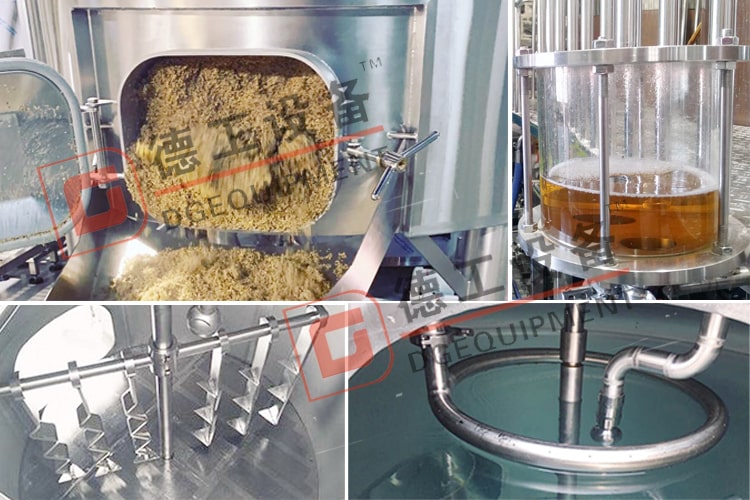

Accessories:

4.0mm full milled false bottom for lauter tun

Full glass top manhole for brewhouse

Rake system with spent grains wiper

Heat exchanging condenser for brew kettle

sight glass, ABB motor,thermometer,ring, cleaning ball

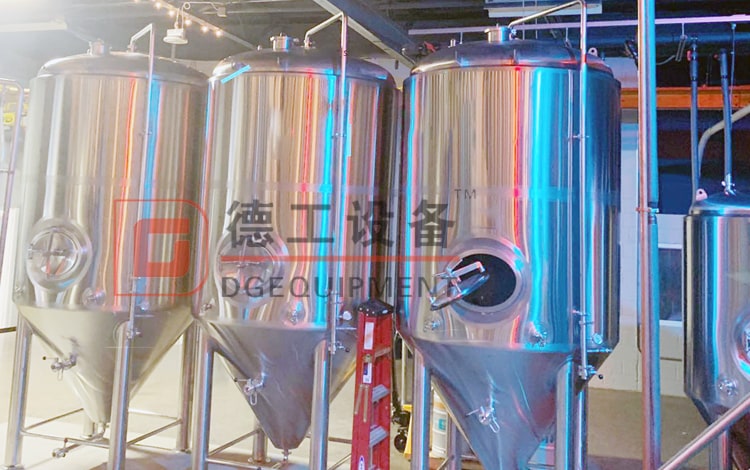

10HL fermentation system

Fine polishing to 0.4~0.6um without dead corner

SUS304/316 or red copper

Cooling media: glycol water

Top manhole

mechanical regulator valve

Sample valve

Carbonation stone

Test Pressure:0.3Mpa

Rotating racking arm

4 support legs with height adjustable pad

Complete valves, fittings and all parts

Level indicator (optional)

Accessories

Top manhole/side manhole for beer fermenter

Bung apparatus with pressure gauge

100% TIG welding with pure argon gas shield

Interior finish:fine polishing to 0.4um

Without dead corner

temperature probe, mechanical regulator valve, breather valve, sample valve and so on.
