3000L 30HL Beer Brewery Equipment Industrial Beer Brewing System Beer Making Machine Stainless Steel Beer Tanks for Sale

DEGONG equipment features:

• Higher wort wort extract

• Lower energy cost and material consumption

• Auto temp control for water, steam, wort, beer flow etc.

• Well designed steam system to increase heating efficiency and lower energy lost

• More reasonable piping construction to avoid the wort aeration problem and decrease the material lost

• Internal heater for separate kettle, working with cylinder and bottom jacket for better boiling effect.

• Cooling unit for current use and well prepared for future expanding

• Automation system with curve indication and production record printing, with recipe storage function, clients can create new recipe as the exact production requirement.

• Fresh yeast supply or fixed yeast propagation unit

• Whole package line well planned.

Beer product line basic configuration

• Grain handling: all grain handling unit including mill, malt transfer, silo, hopper etc

• Brewhouse system: two,three,four vessels, the whole brewhouse unit,

• Fermentation system: fermenter, storage tank and bright beer tank, for fermentation of different kinds of beer

• Cooling: Chiller connected with glycol tank for cooling, Ice water tank and plat cooler for wort cooling

• CIP: CIP with wheel(easy to operation)

• Filtration: Diatomite filtration, membrane filter, Plate frame filtration unit etc.

• Compressed air unit and N2 generator, all piping line connected with system

• Yeast: Yeast storage tanks or Yeast propagation system

Beer fermentation system

Conical fermentation tank technical parameter

1. 4 stainless steel legs with leveling footpads

2. Interior shell: 304 stainless steel, thickness 3mm

3. Exterior shell: 304 stainless steel, thickness 2mm

4. Interior and exterior finish bright polish to 0.4um, hygiene surface

5. 60 degree cone bottom, other angles can be specified during the design process

6. Combined drain extensions and beer port in cone are standard

7. 25% headspace, unless a different volume is requested

8. Top manway or side manway door

9. Dual zone in sidewall and cone dimple cooling jacket with glycol inlet and outlet

10. Polyurethane insulation thickness 80mm for cooling jacket on side and bottom

11. Fully welded exterior shell

12. Non welding CIP arm and rotating 360 degree reach spray ball

13. Solenoid relief valve, pressure relief valve (safe valve) are standard

14. Pressure gauge

15. Temperature sensor well

16. Sanitary sample valve and port

17. All clamps and gaskets to attach all accessories

sample valve, carbonation stone, mechanical regulation valve, side manhole

the parts of beer conical fermenter

Horizontal tanks technical parameter

1. effective capacity:3000L (30HL)

2. Material:SUS316L or SUS304

3. Interior Shell: 2B/mirror plate; TH=3mm

4. Exterior Shell:2B/mirror/brushed plate; TH=2mm

5. 60 degree cone bottom(adjustable);

6. Dimple jacket or dribbling cooling ,PU insulation,TH=80-100mm

7. Tank equip with lifting leg,solenoid valve or mechanical redulator  valve,manhole(top or side),

8. sample valve,temperature sensor, adjustable leg,beer mouth, discharging outlet,coolant inlet and outlet,

9. CIP inlet and outlet,360 degree cleaning ball, pressure gauge.

10. Option:CO2 filling device with titanium rod distributor;level gauge

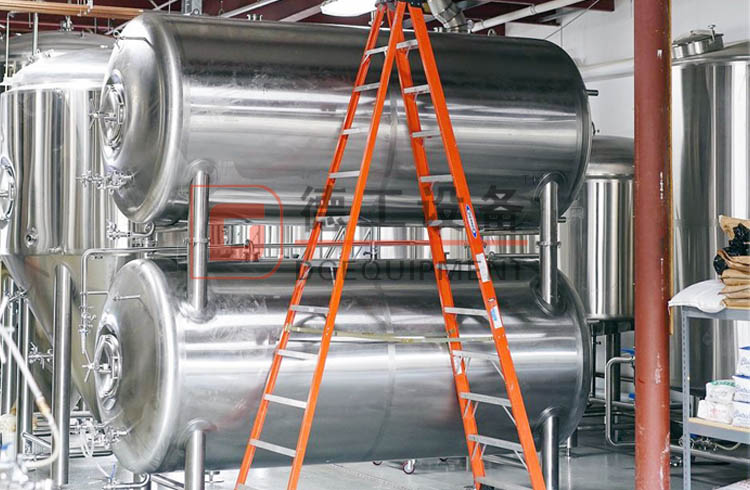

Stainless steel horizontal tanks

3000L (30HL) horizontal tanks characteristics

• 100% TIG welding with pure argon gas shield

• The pipe mouth stretch technology and automatic tank welding equipment ensure the tank with no dead angle,

• no material residue and easy to clean

• Tank polishing precision ≤0.4um,no distortion, no scratches

• Tanks and cooling devices are tested for water pressure

• 3D technology application make customers understand tank from different angles

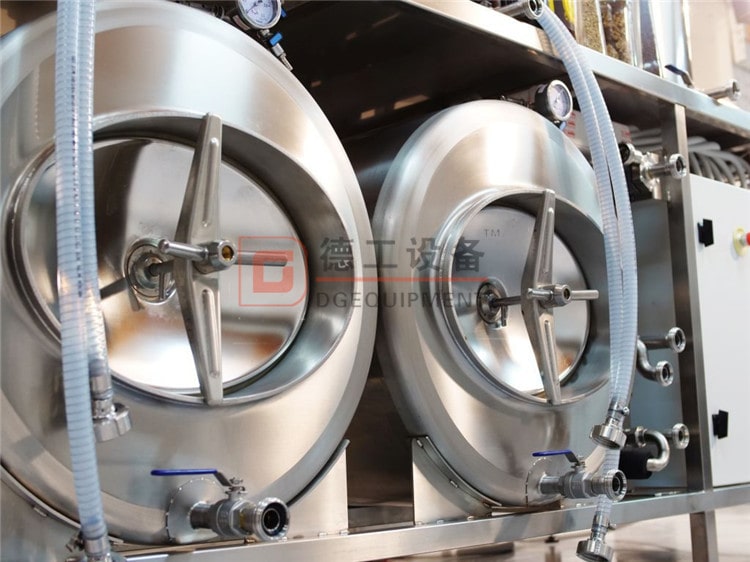

horizontal tanks details

If you are interested in industrial beer equipment, get in touch with me freely.
