DGET-500L
DGET
8438400000

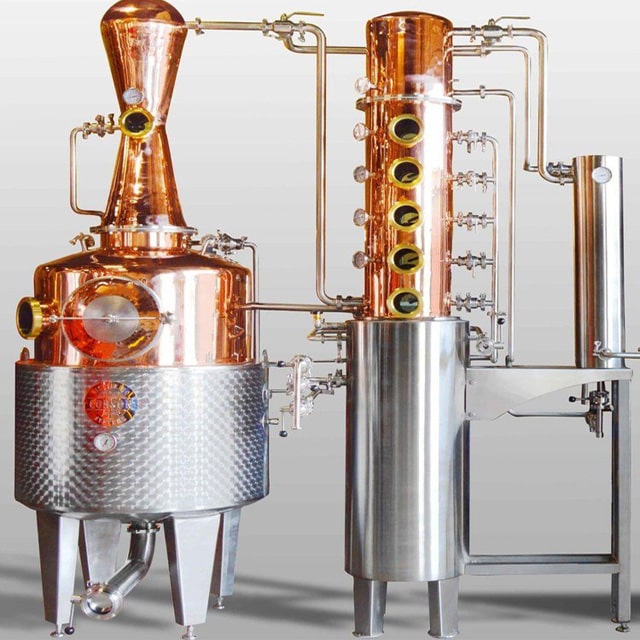

500L Professional Customized Steam Heated Copper Whiskey Vodka Brandy Distillery Machine Distilling / Distillation Equipment
This single unit consists of a pot that is a combination of red copper ,glass and copper column,dephlegmator and condenser,electrical as its primary heat source (steam heating option is available as well).
Our distiller is a single unit, engineered to meet and exceed the needs of start-up distilleries or be used as an advanced test still for established distilleries for whiskey, gin, fruit brandy, rum,wine spirit and there is a possibility to produce vodka with additional vodka column.
We can also supply mash tun,fermenter,spirit storage tank, wine tanks.
| 500L Professional Customized Copper Vodka Gin Distillery Machine Distilling / Distillation Equipment | |
Working Capacity of still pot: | 500L |
Heating Method: | by steam |
All connection type: | by tri-clamp and flange;it's easy to installation and clean equipment after a run. |
Distillation column: | red copper column with 6 plate red copper bubble caps |
What is the component of the distilling system
Still pot | Capacity 500L, explosion proof agitator motor,full glass manway |
Helmet | Copper Whisky helmet |
Column | copper made with totally 16plates |
condenser column | copper made,pipe and shell type |
Support base | ss made,water tank and product tank are made as support base |
Application | It can make sure you get function of distilling whisky,brandy,gin and vodka etc. |
Distiller pot: Inner full copper pot, outer steam jacket with warm insulation layer, outer layer with fish scale polish, full glass manhole to see, top with agitator stirring.
Column plates: full CU122 copper bubble plates, side with pass valve to operate, CIP ball insert to each plate to clean, back with cip pipe and valve to operate.
Bottom collect tanks: water tank to collect condenser water to cycle used with CIP clean, alcohol tanks direct to collect from parrot, bottom connect one water pump.
Bubble caps :It consist of bubble cap,down comers,bubble plate,red copper screw and bubble tee(we have stainless steel 304 and red copper option)
Control Panel:Material of control box is stainless steel 304 or plastic option;
Suitable Voltage:208/220/240V single phase 60Hz,Which can adjust the heating temperature by module.
Parrot spout with high sanitary glass cover, top is copper lid, direct to open, bottom with valve.
Distilled liquor is a high-alcohol liquor extracted from fermented brewing materials through one or more distillation processes. The raw materials of distilled spirits are generally rich in natural sugars or starches that are easily converted into sugars,such as honey, sugar cane, sugar beet, fruit and corn, sorghum, rice, wheat potato, etc. Sugar and starch are fermented by yeast to produce alcohol, and then use a special distiller to heat the liquor. Using the different boiling point of alcohol (78.5°C) and the boiling point of water (100°C) , the original fermentation broth is heated to between the boiling points of the two , then you can steam out and collect alcohol and aroma substances from it. However, during the heating process, the moisture and other substances of the raw materials will also be mixed in the alcohol, thus forming liquors of different quality. Most of the famous wines use multiple distillation methods to obtain liquor with high purity and low impurity content.
Whether you need beer brewing equipment or distillery equipment,DEGONG can provide any type brew/distilling equipment.If you have interest,welcome to contact me freely.
