500L Professional Customized Copper Vodka Gin Distillery Machine Distilling / Distillation Equipment
Home » Brewery Equipment » Distilling System » 500L Professional Customized Copper Vodka Gin Distillery Machine Distilling / Distillation Equipment

Product Detail

loading

Share to:
sharethis sharing button

500L Professional Customized Copper Vodka Gin Distillery Machine Distilling / Distillation Equipment

Our distiller is a single unit, engineered to meet and exceed the needs of start-up distilleries or be used as an advanced test still for established distilleries for whiskey, gin, fruit brandy, rum,wine spirit and there is a possibility to produce vodka with additional vodka column.
We can also supply mash tun,fermenter,spirit storage tank, wine tanks.
Material:
Stainless steel and copper
Thickness of material (mm):
3mm
output:
500L
Heating method:
Electric or steam
Manhole:
Glass manhole
Availability:
Quantity:
Inquire Add to Basket

  • DGET-500L

  • DGET

  • 8438400000


                          500L Professional Customized Copper Vodka Gin Distillery Machine Distilling / Distillation Equipment



This single unit consists of a pot that is a combination of red copper ,glass and copper column,dephlegmator and condenser,electrical as its primary heat source (steam heating option is available as well).

Our distiller is a single unit, engineered to meet and exceed the needs of start-up distilleries or be used as an advanced test still for established distilleries for whiskey, gin, fruit brandy, rum,wine spirit and there is a possibility to produce vodka with additional vodka column.

We can also supply mash tun,fermenter,spirit storage tank, wine tanks.


500L Professional Customized Copper Vodka Gin Distillery Machine Distilling / Distillation Equipment

Working Capacity of still pot:

500L

Heating Method:

by steam

All connection type:

by tri-clamp and flange;it's easy to installation and clean equipment after a run.

Distillation column:

red copper column with 6 plate red copper bubble caps


What is the component of the distilling system

Still pot

Capacity 500L, explosion proof agitator motor,full glass manway

Helmet

Copper Whisky helmet

 Column

copper made with totally 16plates

condenser column

copper made,pipe and shell type

Support base

ss made,water tank and product tank are made as support base

Application

It can make sure you get function of distilling whisky,brandy,gin and vodka etc.


Distiller pot: Inner full copper pot, outer steam jacket with warm insulation layer, outer layer with fish scale polish, full glass manhole to see, top with agitator stirring.

Column plates: full CU122 copper bubble plates, side with pass valve to operate, CIP ball insert to each plate to clean, back with cip pipe and valve to operate.

Bottom collect tanks: water tank to collect condenser water to cycle used with CIP clean, alcohol tanks direct to collect from parrot, bottom connect one water pump.

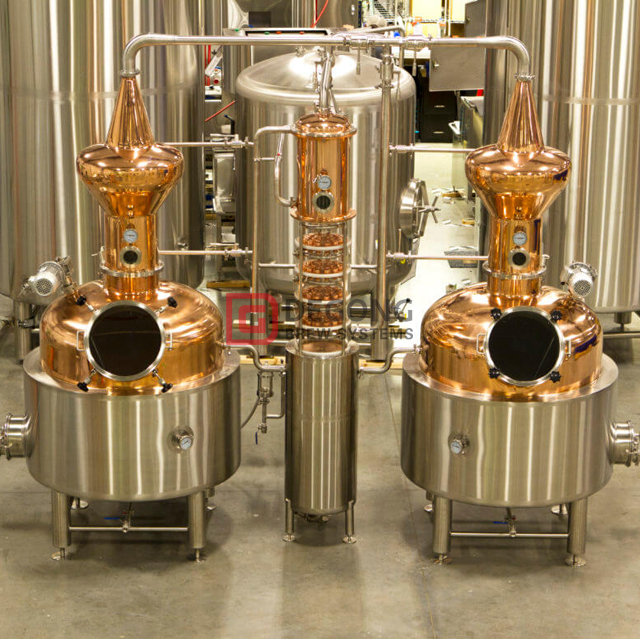

1

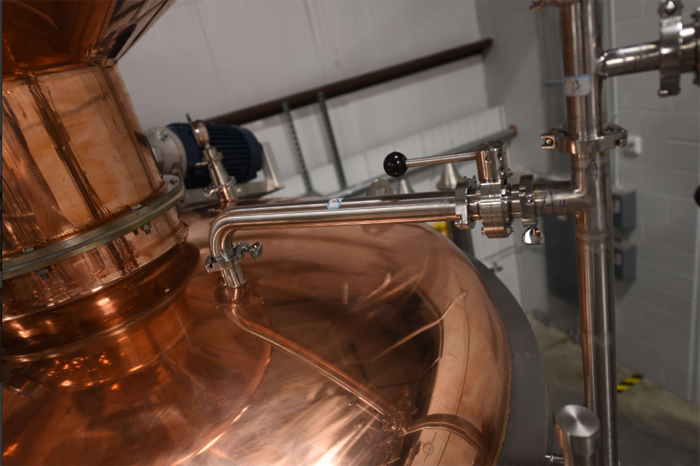

3

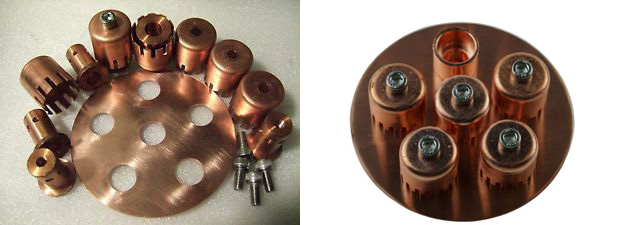

Bubble caps :It consist of bubble cap,down comers,bubble plate,red copper screw and bubble tee(we have stainless steel 304 and red copper option)

bubble caps副本

Control Panel:Material of control box is stainless steel 304 or plastic option;

Suitable Voltage:208/220/240V single phase 60Hz,Which can adjust the heating temperature by module.

Parrot spout with high sanitary glass cover, top is copper lid, direct to open, bottom with valve.

5副本


We also have commerical distillation system can custom making according to your specail requirement

We design and hand-build commercial alcohol distilling equipment for craft distilleries including batch distilling systems ,pot stills ,column stills,mash tuns and fermenters ;Our systems provide distillers the capacity to produce a full range of spirits ;We also provide delivery,set-up ,and training to ensure the success of distillers who choose a DEGONG Still ;As a commercial distillery equipment manufacturer ,we are happy to answer any questions you have about our equipment,or the process of starting your distillery ,Our goal is to help you make an informed decision when you buy distillery equipment ;After all;it will be the cornerstone of your distillery ;




Structure

Useage

50~500L still pot+4~10 plate red copper/
stainless 304/glass distillation column+dephlegmator+condenser+
parrot outlet+control box

Economy for lower budget.Application to small sized plant.Alcohol content 80%±10%,
such as whiskey,brandy,rum and vodka.

still pot+goose neck+4plate distillation
column+dephlegmater+condenser+parrot
outlet

Suitable for low alcohol concentration to get high quality taste spirit.Alcohol content 80%±10%,such as whiskey,brandy,rum etc.

still pot+goose neck+gin basket+4plate
distillation column+dephlegmater+
condenser+parrot outlet

Suitable for low alcohol concentration and available for fruitful flavor with spices to get high quality taste spirit.Alcohol content 80%±10%,such as whiskey,brandy,rum +spices.

still pot+goose neck+gin basket+4plate
distillation column+16~20plates distillation
column+dephlegmater+condenser+parrot
outlet

Alcohol content 80%±15%,such as
whiskey,brandy,rum,gin and vodka.

still pot+goose neck+4plate distillation
column+16~20plates distillation column +dephlegmater+condenser+parrot
outlet

Suitable for both low and high alcohol
concentration to get high quality taste spirit.Alcohol content .

still pot+4plate distillation column+
dephlegmater+condenser+parrot
outlet

Economy for lower budget.Application to small
sized plant.Alcohol content 80%±10%,such as
whiskey,brandy,rum and vodka.

still pot+goose neck+condenser+parrot
outlet

General taste and low alcohol concentration
(usually,using together with column still.Crude distilled spirit≤65%.



kate pc update




Pre-Sales Service

1. Free of making offers, craft and technical guidance.
2. We can provide company's qualification certification and the drawings.

3. We can also make customized products according to customer's needs.








Advantage:

1.Different specifications meet different need of

customers,for example,several types of heating devices for your choice: dimple jacket / inner pipe heating machine(optional)

2.Advanced technology can saving energy and running cost,for example,our control panel is PLC.

3.High performance and stability with low maintenance cost

4.Custom built, meet your needs exactly,that is to say,you just need to tell us your brewery's real condition,then our team will design suitable tanks suitable to your brewery.



After-Sales Service

1. We provide long-term after-sale service.
2. Owing to the quotation of our equipment is FOB price which excluded charges of door-to-door service. Thus, if necessary, we can appoint our technician to debug the machine with air ticket, visa, accommodation and labor cost provided by your party. Or you can send your technician to our company to learn techniques.

3. Meanwhile, you can call or e-mail to consult any relevant questions since we have a special line of after-sale service. Or you can communicate online and solve the problems.



Guarantees:

1.All the materials touching with beer directly are all top quality food grade stainless steel

2.We use the first class valves and manhole for our equipments

3.All the materials I use is nonmagnetic.

4.The thickness of the material exact fit in with what shown in our quotation sheet

5.Most importantly,Our staff is always available for your needs and questions.










The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

 1.Plastic film, bubble film
2. Fumigation-free wooden case for LCL
3. Plastic film&bubble film wrapped, iron frame if needed, fixing for FCL
4. Up to export standard, safety transportation



QQ图片20191113162415

FAQ


1.Electric power:It can be customized according to customer’s local condition.Such as 220V,230V,380V,430V; 50HZ or 60HZ;3 phases or single phase.



2.Price:Every customer has different requirement,so we need to confirm your requirement first,then give you price.Such as some customer require steam heating,some customer require electric heating;Some customer require 2 vessels brewhouse and some customer require 3 vessels brewhouse;Some customer require top manhole for fermentation tank and some customer require side manhole.So even both 1000L equipment,there price are different.So we need to confirm your detailed requirement first.



3.How to see if your company is trust?

We have sold many equipment to EURO.We can give you our customer’s contact information,you can listen to their advice or visit their brewery.



4.How should we do if we don’t know how to brew beer and install equipment?

We will dispatch engineer to install equipment and teach you how to brew beer freely.


DEGONG Equipment Technology Co.,Ltd Jinan is a professional beer brewing equipment manufacturer,which set designing,production,installation,brewing,after service in one.We have our own factory and all of our products with strict quality control before out of the factory.

Credibility and high quality are the life of our company!


If you have interest,please get in touch with me freely.
