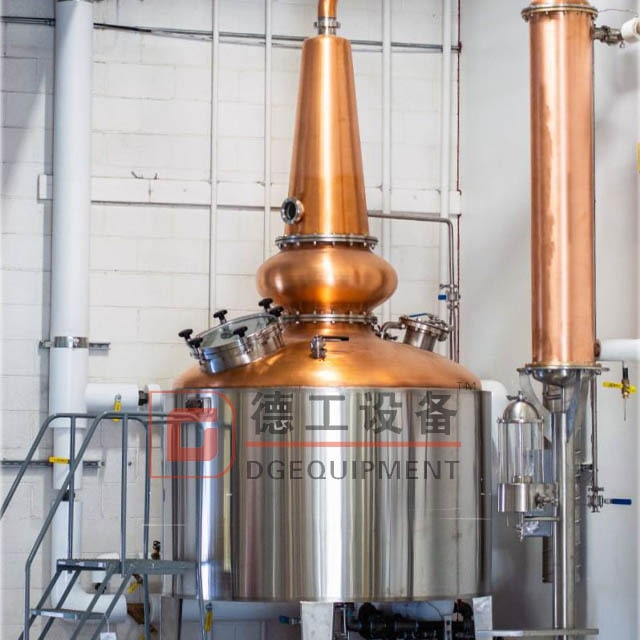

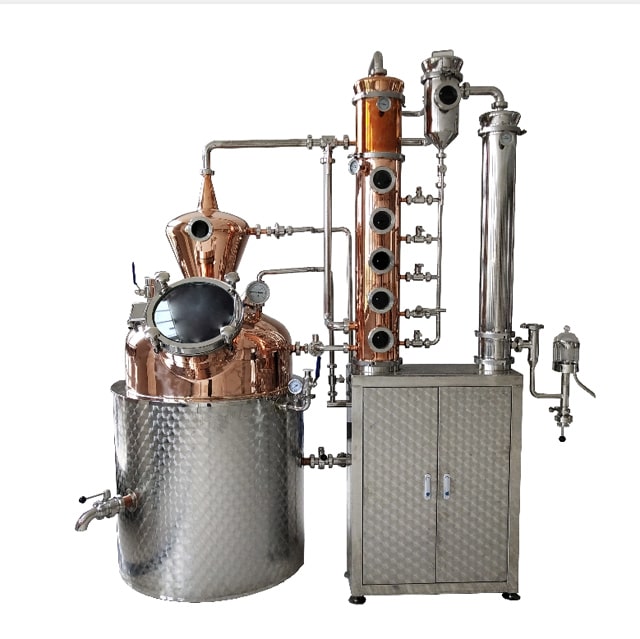

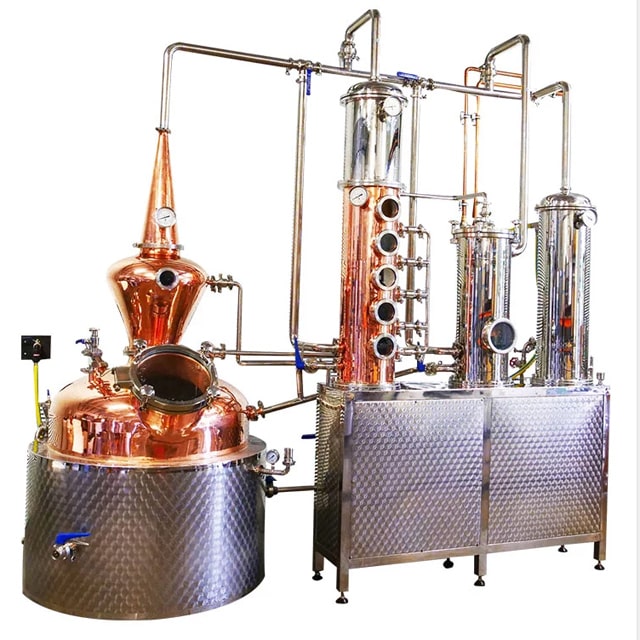

500L professional customized commer distillery vodca gin rum whiskey brandy spirit distillation equipment for sale

Distillation equipment is the result of continuous innovating and developing based on our experience of brewery equipment manufacturing. DEGONG distillation equipment can be used to make fruit wine, whiskey, vodka, gin, tequila, rum, brandy and other distilled spirits. All systems have the characteristics of small and medium size, automatic control, easy operation and beautiful outlook. The equipment is suitable for small and medium sized workshops, hotels etc.

Features:

Working Capacity:500L

Upper copper inner pot with SUS304 jacket & PU foam insulation

Steam heating without control box

Power consumption:  100kg/h steam heating  (or 6*10kw electric heaters)

Agitator: 1.1kw motor, explosion proof with UL & CSA & CE approved

Copper helemt: mushroom shape (also have other shape for choice)

Glass Gin basket: inner with copper basket

14 inch / 350mm Copper column: 4 Plates + 16 Plates

SUS304 Dephlegmator : shell and tube type

SUS304 Condenser : shell and tube type

SUS304 Parrot with glass proof

SUS304 CIP system: CIP ball & no-return ball, CIP pipe, CIP pump

Bypass system: from pot to condenser / from pot to gin basket to condenser / from pot to column to condenser. etc.

Price: 55000USD-75000USD.

If you have interest,welcome to contact me freely
