500L commercial turnkey steel craft beer making equipment for sale in Colombia

500L industrial beer brewing equipment, 500-1500L beer per day, for micro beer brewery and micro brewery factory use, stainless steel made, high quality, automatic control, easy to operate. Supply good after sales services. CE ISO TUV certified. Food grade material. Fully customized.
Availability:
Quantity:
  • DGET-500L

  • DEGONGET

  • 8438400000

Description of high quality 500L beer brewing equipment


The turnkey 500l micro beer making equipment generally includs the brewhouse, fermentation tanks, the glycol cooling system for cooling bright beer tanks and fermenters, the controlling unit for temperature setting, and the CIP cleaning system. With more than 10 years of manufacturing experience in beer brewery industry, we can do a variety of brewery equipments based on your specific requirements. And our engineers are always available for you if you require the installation service.


500L brewery system

500L 2-vessel stainless steel beer making system


Standard configuration of the 500L beer making equipment



SPECIFICATION OF COMPLETE SET OF 500L BEER BREWING EQUIPMENT
Grain Milling Unit
Rolling Miller
300 ~500 kg/h





Brewhouse Unit


Mash/Lauter tun
Grain rake with VFD
Laser cutting V-wire False Bottom
Easy clean and detachable sparging spray ring
Multihole wort collect ring
Anti-rinser

Kettle/Whirlpool Tun
Steam Jacket on bottom and side/direct gas fired heating/electric heating
Steam vent with condensate ring for kettle stack
Hot Liquor Tank
Steam Jacket heating/direct gas fired heating/electric heating




Fermentation & Bright Beer Tank Unit




Fermenter
Glycol cooling jacket on cone and bottom;
Side or top manway;
CIP arm and CO2 blow off arm;
Germany import Kieselmann Mechanical relief valve;
Shockproof pressure gauge;
Rotating racking arm;
Dry hopping port;
Carbonation stone;
Level meter

Glycol Chilling Unit
Glycol Tank
Glycol Chiller
Insulated conical top and sloped bottom
Dimple plate on side wall

Control Unit
Brewing and fermetation process Controlling
Manual button control panel or PLC control with touch screen for special
CIP Unit
Caustic Tank;
Sterilization Tank;
Transfer&Control.
Electric heating element inside



Main features of our beer making machine


1) CE, ISO & TUV Rated Controls and Components.

2) Tanks conform to all ASME pressure vessel ratings and standards.

3) 100% Pressure, leak testing of all tanks, jackets, and hardpiping. All eletronics and brewhouses pre-assembled and tested before shipping.

4) All brewhouse piping is stainless hardpiping. No plastic piping used in the brewhouse for wort or beer.

5) All control panels are pre-wired and pre-tested.

6) PLC Siemens color touch screens control system.

7) Complete mechanical engineering support, on-site installation, start-up and training support for all systems.


Specifications of the beer brewing equipment



1_副本73509B0602D89CCC19562C6619CA4C5A_副本


Name: Malt miller

Capacity: 100-150Kg/H

Brand: DGET

Material: Stainless steel

Function: Crush malt and make it ready for mashing process


500L brewery equipment (2)_副本


Name: Beer brewhouse system

Capacity: 500L/batch

Brand: DGET

Material: Stainless steel

Structure: 2-vessel; 3-vessel; 4-vessel based on the requirements

Heating method: Gas; Steam; Electric

Insulation: PU (polyurethane)   Thickness: 100mm

Jacket: Yes. Thickness: 1.5mm

Inner shell: 3.0mm

Outer shell: 2.0mm

Pressure: 3.0 bar

Isobaric: Yes

Process: Mashing - Lauter - Boiling - Whirlpool

Function:  Form the "wort" by mixing the useful matters including sugars, proteins, etc...  extracted from the crushed malt with the help of the enzymes and brewing water.

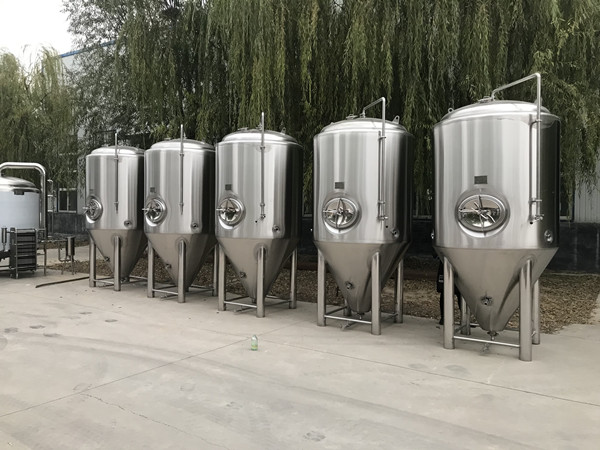

fermenter (4)_副本


Name: Beer fermentation tank

Capacity: 500L

Brand: DGET

Material: Stainless steel

Insulation: PU (polyurethane)   100mm

Jacket: Yes. Thickness: 1.5mm

Inner shell: 3.0mm

Outer shell: 2.0mm

Pressure: 3.0 bar

Isobaric: Yes

Fermentaion period: 7-10 day for Ale; 2 weeks for Lager beer

Function:  Convert the wort to drinkable beer after a certain period of time (Fermentation period).


CIP system (2)_副本


Name: CIP system (Cleaning in place)

Capacity: 50L

Brand: DGET

Material: Stainless steel

Insulation: PU (polyurethane)

Outer shell: 2.0mm

Isobaric: Yes

Function: For cleaning all the tanks after brewing a batch of beer.



Name:Control system

Brand: DGET

Material: Stainless steel

Components: Siemens; Omron; Schneider; ABB

Function: For controlling all the processes including temperature,pump, motors, etc...


Services


1. Three years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge when problems happened during the warranty period.

2. Lifetime maintenance free of charge.

3. We will provide the consumable parts at an agency price when you need replacement.

4. Free consultation service before, during, and after sales; Layout plan in 3D or CAD drawings of your brewery


1234_副本


Packaging and logistics


Our usual packing is frame steel or exporting wooden case.

If you want to choose CFR or CIF terms of trade, we can choose the most preferential transportation for you according to the calculation of your goods.


EQEXFD%PIG3_6E2E`UY_副本


Certificates


02_副本


photobank


We have already obtained the CE ISO TUV certifications by far. And Degong is the only one that's got the TUV certificate in brewing industry of northern of China.


FAQ


1.Q: Are you a manufacturer?
A: Yes, we have been in providing the professional products in this field for 10 years.



2.Q:What exactly does the 36 month warranty cover?
A:36 month warranty cover all the main tank.one years for the accessories and spare parts.



3.Q: Can your factory produce equipment according to our drawing or samples?
A: Yes, we can do.



4.Q:Is the 15 day set-up by your engineers mandatory, or can we opt to pass on that service?
A:Yes ,you can,we will offer the manual or video to let you know how to connect the equipment.



5.Q: How to calculate the daily output? How many fermenters do I need?
A: Usually theequipment models such as 300L and 500L are only 300L, 500L wort for mashing capacity. Beer production is according to your fermentation process requirements and the number of fermenters configured.



6.Q: How you pack the products?
A: Normally as the export standard packaging or as you required.

7.Q: What is your available port of shipment?
A: Qingdao port,shanghai etc.
