500L Commercial Turnkey 3-vessel Craft Beer Brewing Equipment for Sale

Our 500L steam brewhouse is a great choice for smaller brewpubs/hotels/restaurants, or those who want to have many different beers on tap. Our fermenters can be double-batched, making it 1000L, so the fermenter can also be useful if you want to enlarge the production in the future. If things get busy, the included 1000L hot liquor tank has you covered for double 500L brews into our 1000L fermenters.

Pressure :
Thickness:
Heating method:
Material:
capacity:
Quantity:
  • DGET-500L
  • DEGONGET
  • 8438400000
Description of 500L beer brewhouse of 500L beer brewing equipment for brewpubs/ hotels/ restaurants


Brewhouse is deemed as the heart of a set of brewery system. A brewery system with a wonderful brewhouse can help you brew a batch of good beer. For 500L beer brewery system, it generally includes:

  • Mash/Lauter tank

  • Kettle/Whirlpool tank

  • Stainless Steel Work Platform with Handrails

  • 1000L Automated HLT

  • Fully Welded Sanitary Process Piping System

  • Complete Electrical Package

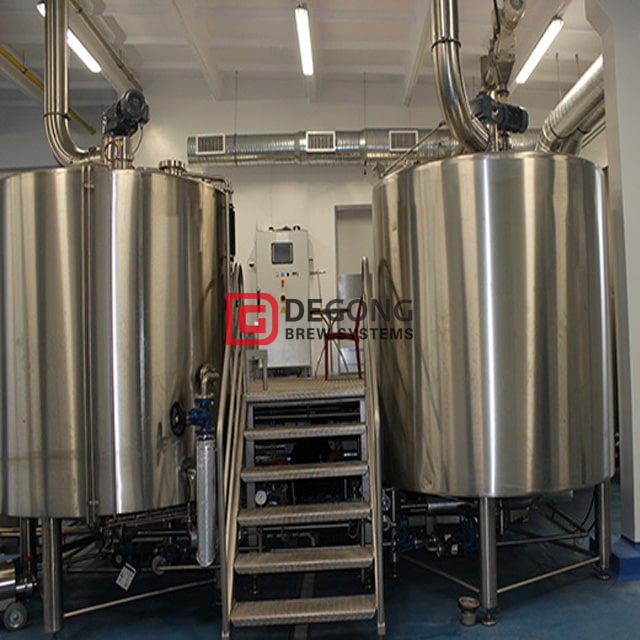

                                        500L 3-vessel beer brewhouse assembly


Specifications of 500L beer brewhouse


Mash/Lauter assembly:


  • All stainless steel 304 construction, dished top and bottom.

  • Fully TIG welded assembly. Internal welds are smoothed with external welds acid cleaned and re-grained. External welds are stripe buffed.

  • Internal mash grid assembly with (4) wedge wire removable screens for ease of cleaning.

  • Sealed access door.

  • Tempered glass top man door access.

  • Thermo-well installed with RTD for measuring temperature in mash / lauter tun; What's more, RTD sensor is also provided

  • Fully welded steam jacket with rear exit protruding steam/condensate nipples on main body.

  • Heavy duty legs assembly with standard leveling pads.

  • PU ( polyurethane) insulation with 14 gauge polished stainless steel outer shell.

  • ABB/ Siemens / SEW reducer for raker

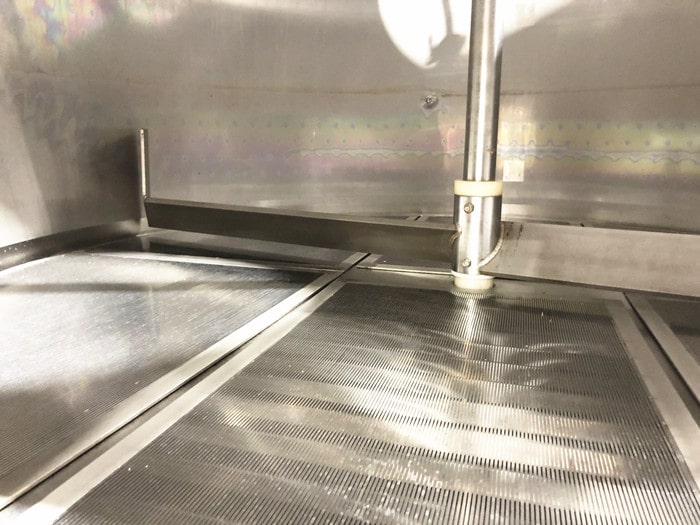

                                        Raker and sieve plate inside the mash/lauter tank


                                 Stainless steel seamless hard pipes with TC connections

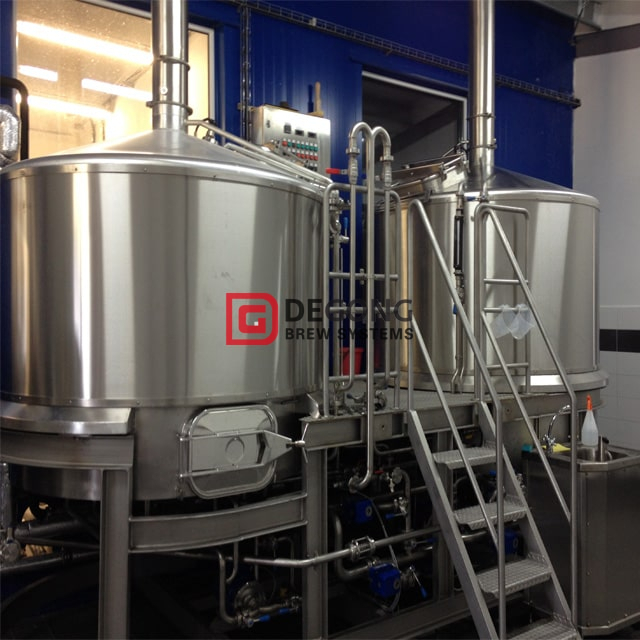

                                      High quality steel 2-vessel automated beer brewhouse


                         Get the spend grain out of mash/Lauter tank through side man access


Kettle/Whirlpool tank assembly:


  • All stainless steel 304 construction, dished top and bottom.

  • Tempered glass top man door access.

  • 4 pieces of heavy duty leg assembly with standard leveling pads.

  • PU(polyurethane) insulation with 14 gauge polished stainless steel outer shell.

  • Steam flue slip flange with condensation gutter and drain port.

  • Fully TIG welded assembly. Internal welds are smoothed with external welds acid cleaned and re-grained. External welds are stripe buffed.

  • Internally mounted/removable trub dam.

  • Fully welded steam jackets with rear exit protruding steam/condensate nipples. Two jackets are installed on the side circumference of the tank and one is installed on the bottom dish.

  • Thermowell installed with RTD for measuring temperature in brew kettle.

  • Tangential wort inlet assembled inside the tank

  • With VFD blender assembled inside the tank to stir wort


                                            Wort is boiled and whirlpooled inside the tank



Wort pumps:


  • 2 hp 208/230V 3 phase motor.

  • Pump mounted to the bottom of the access platform and complete with all piping connections.


Fermenter of 500L beer brewing equipment


  • Material Inner (SUS304) thickness: 3.0mm; Outer (SUS304) thickness: 2.0mm; External-Jacket(SUS304) thickness: 1.5mm;

  • Heat exchange area:2.69 ㎡

  • Equipment with : cone 60°resist compression design,dripping

  • 100% TIG welding with pure argon gas shield

  • Interior Finish: Sanitary 2B finish, Pickled and Passivity; (8K Mirror finish optional)

  • Exterior Finish: Oil brushed finish ( 2B, 8K Mirror finish optional)

  •  Interior full polished to 0.2~0.4 μm without dead corner

  • Insulated with high density Polyurethane foam 100mm

  • Glycol Jacket: Dimpled plate on cone and side

  • Stringent tank leakage test by water and pressured gas

  • Stringent Jacket leakage test by water and pressured gas

  • Sanitary side mounted manway with pressured door

  • TC connected CIP arm with 360° coverage spraying ball

  • CO2 blow-off arm with butterfly valve

  • Full sanitary metallic sealed sampling valve

  • Mechanical safe valve PVRV 2 bar on top

  • Hydraulic shock pressure gauge on CIP arm

  • Rotating racking arm and port on cone with butterfly valve

  • Tri-clamp discharge arm with butterfly valve

  • Thermowell for high accuracy temperature sensor

  • 4 pcs completely SUS304 heavy duty legs with leveling pad and legs support

  • Dry hopping port 4” TC with solid end cap

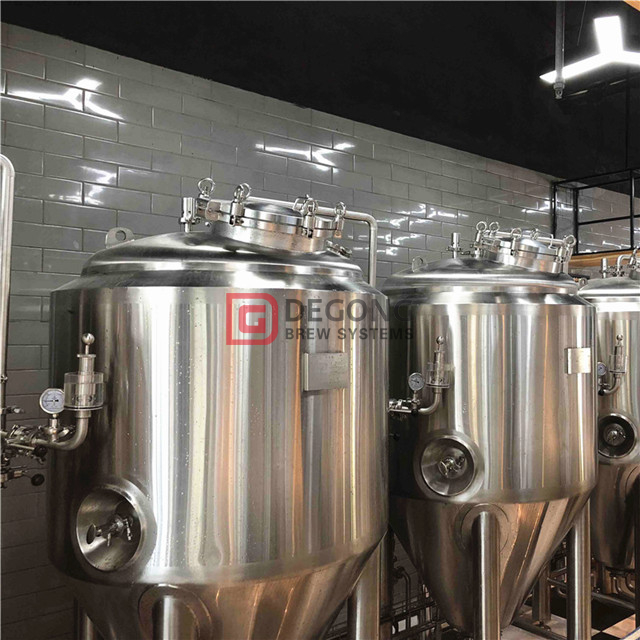

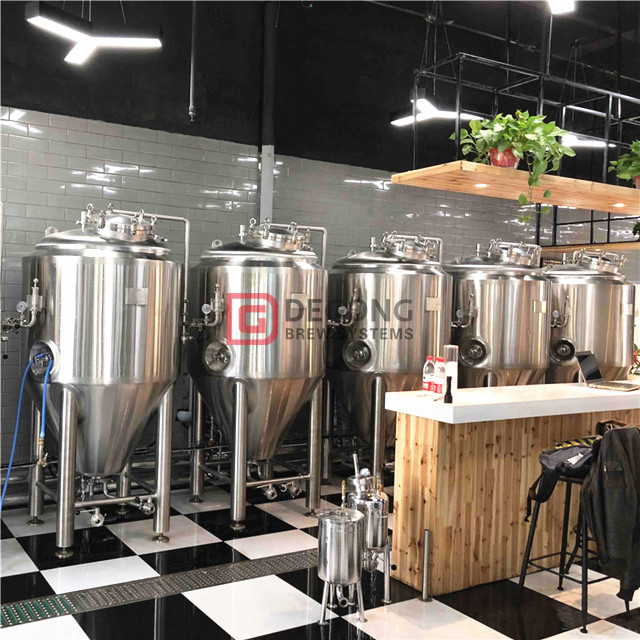

                                                               Fermenter row


                                   Brewer is adjusting the temperature of the fermenter


                Brewer is recording temperature, status of beer inside the fermentation tank


Beer brewing process


                Beer brewing process from malt milling to beer aging to bottling to delivery


Customers show





Delivery and packaging


                                             Equipment is fit in container, parked at wharf



               Wooden case will be needed if you just need a specific part of brewery equipment
