DEGT-500L
DEGT
8438400000

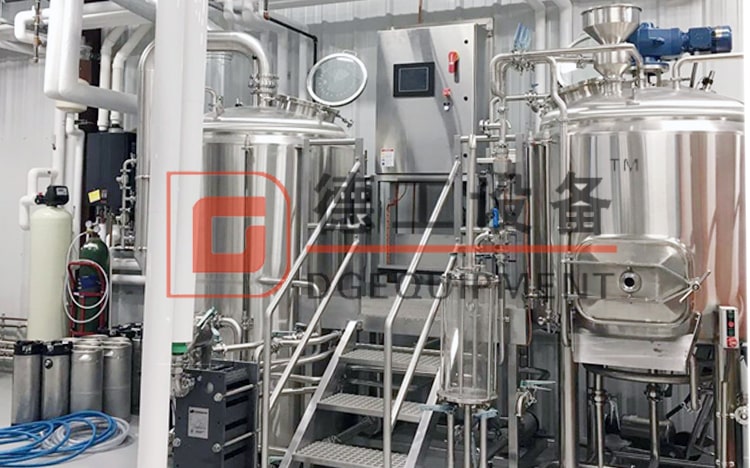

The brewery is the heart of the beer brewing equipment. DEGONG Brewery is tailor-made according to the individual needs of each brewery. From defining the best brewery layout to designing the settings and dimensions of the brewery and storage tanks, we have experienced engineers who can not only meet the individual requirements of each customer, but also provide installation services. The 500L beer brewing system is designed as a brewing room with 3 containers, namely Mash tun / Lauter tun, Kettle / Whirlpool tun and hot wine tank. It used to sell well in restaurants, bars and bars.
About steam heating method,it is one of the heating methods with the highest stability and efficiency. Steam heating need a steam bolier which includes gas bolier, diesel boiler and electric bolier.
About Configuration: mash/lauter tun +boiling/whirlpool tun, usually customers can choose a hot water tank to improve the efficiency of mash.
Brewhouse unit parameter
Material:Inner(SUS304），thickness:3.0mm,Jacket(SUS)304,thickness:3.0mm
Cylinder(sharp type,SUS304),thickness:3.0mm
Inner surface treatment:welds grinded to 0.6μm。
Insulation:Polyurethane-thickness 80mm
Temperature way:Double matal thermometer
Outsourcing surface:Weld polishing processing
Jacket Pressure:design pressure 0.3MPa,working pressure <0.2MPa.
CIP 360 degrees Omni bearing cleaning
Accessories of brewhouse unit
Wort pump:Stainless steel 304 food
Plate Heat exchanger:Completely 304SS corrugated plates
Operation platform: Platform frame is constructed entirely of stainless steel with a stainless steel diamond plate deck.A stainless waterright electronics enclosure is mounted to the back of the platform.Stairs are constructed of stainless steel diamond plate deck material.
Spary cleaning ball,Manhole,Legs, Adjustable foot and Tempetature probe(PT100),sight glass, raker, false bottom.
About the welding and polishing:
1-We make sure the 100% TIG welding with pure argon gas shield. We use the central system of argon, instead of ordinary gas cylinder.
2-The argon will help to reduce the oxygenation. After welding, they will be polished to arrive to 0.2~0.4 μm without dead corner firstly, then do acid pickling and passivation.
3-Which will help to remove the oxygenation on welding line; and form protection film on the steel to avoid rust. It will help you to extend the tanks life time.
Brewhouse could also be red copper
If you want to know more about brewhouse unit, please contact with me freely.
