600L 1000L Beer Brewery Equipment Craft Commercial Cooling Double Wall Turnkey Fermentaton Tank

Fermentation tank is one of the most important beer brewery equipment in the beer product process.All fermenters were made up of the imported high quality stainless steel reaching to the food sanitation standard.Tanks of the control sensor in particular,with temperature sensor,used for fermentation medium in fermentationprocess of monitoring changes of the temperature.

600L fermentation tank parameter

Inner thickness:3.0mm; Outer thickness:2.0mm; External-Jacket thickness:1.5mm

Interior and exterior finish bright polish to 0.6μm

Design Pressure: 1.5bar Test Pressure: 3.0bar

Heat Insulation: Polyurethane Foaming Insulation, with the thickness 80mm
Internal and external surfaces shall be clean and polished, and internal surface shall be 2B base metal to 0.6um
According to the specification of tank types, the corresponding specification and model of sanitary clamp joint would be equipped;
Equipped with vacuum valve / pressure relief valve, pressure gauge, temperature gauge, sampling valve, lifting lug, side or top maintenance manhole, all-round equipment cleaning CIP nozzle with 360 degree;
Equipped with the double inlet and double outlet glycol cooling pipe;
Coolant Jacket: Welded Honeycomb Maitre Sandwich Plate;
Equipped with rotary inlet and outlet feeder ports with valves and accessories;
Equipped with Hop Dosing port with Clamp type in company standard;
Equipped with Electronic thermometer sensing interface;
CO2 charging device (according to customer requirements).

Why is the cone bottom of the fermentation tank 60°?

1. With cone bottom, it is more convenient to recover yeast after main fermentation is completed, and the yeast strain used should have good cohesion. The angle of the cone bottom is usually between 60-90 degrees, which is conducive to the sedimentation and discharge of yeast.

2. The tank body is equipped with a cooling interlayer, and the cooling capacity can meet the process cooling requirements. The cylinder part of the tank is equipped with 2-3 cooling jackets, which is conducive to the sedimentation of the yeast and can keep the yeast activity well when it is reused.

3. The conical tank is airtight and can recover CO2; it can be used as a fermentation tank as well as bright beer tank.

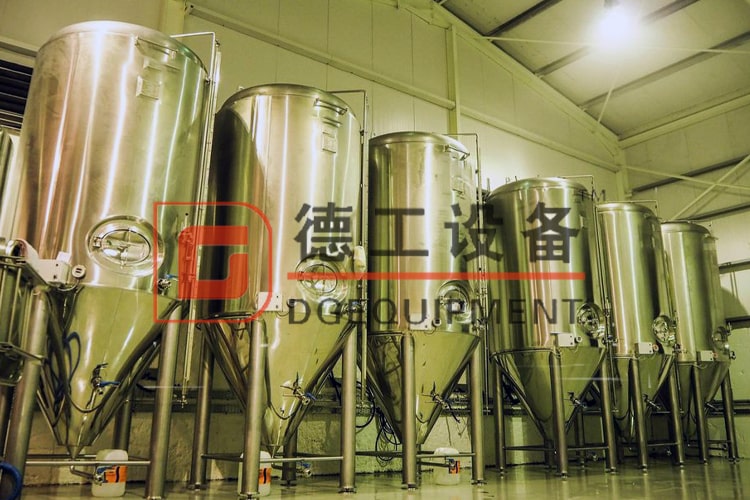

Fermentation tank show details

In the picture, our customer is moving beer equipment that has just arrived at the port.

If you want to order fementation tank, please contact with me. Come on!
