DGET-500L
DGET
8438400000
The whole beer brewing equipment contains six basic system:miller,beer brewhouse,beer fermentation system,cooling system,cleaning system and control system.Let introduce the two most important systems(beer brewhouse/mashing system,fermentation system) briefly.

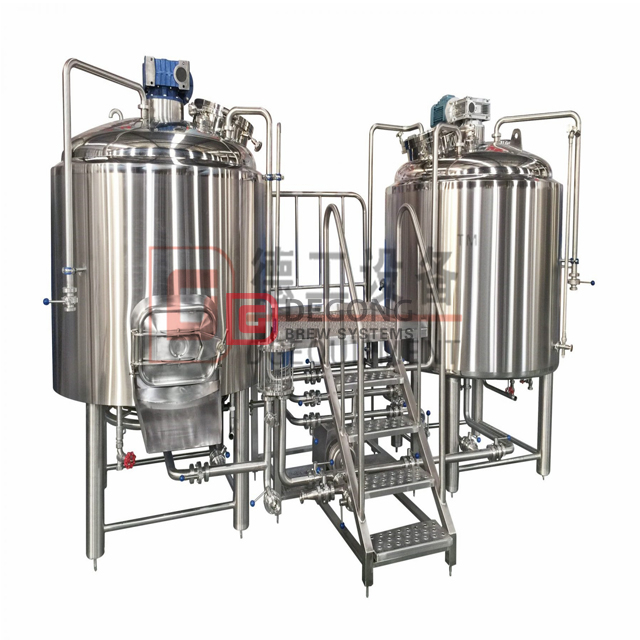

| Beer brewhouse |
500L Beer production plant industrial used beer brewing equipment for beer micro brewery system is a normal configuration that most small brewery will choose.Steam heated or gas heated or electric heated;2 vessels or 3 vessels or 4 vessels;And most customer also will choose a hot water tank to improve mashing efficiency.And the whole progress will be controlled by a control panel.
| Construction | 1.2-vessels brewhouse:mash/lauter tank and boiling/whirlpool tank 2.3-vessels brewhouse:mash/lauter tank,boiling tank and whirlpool tank mash/boiling tank,lauter tank and whirlpool tank 3.4-vessels brewhouse:mash tank,lauter tank,boiling tank and whirlpool tank Hot water tank and cold water tank is for optional |
| Heating method | 1.Electric heating 2.Direct fire heating 3.Steam heating |
| Steam boiler (If choose steam heating) | Electric boiler Gas boiler Diesel boiler |
| Specifications | Inner:SS304.TH=3.0mm Outer:SS304.TH=2.0mm Double-layer wall structure with the insulation of 100mm Polyurethane Steam jacket or heating element 100% TIG welding with pure argon gas shield Interior Finish: Overall polishing to 0.4~0.6 μm without dead corner Heavy duty false bottom with 0.7mm gap of the sieve Fully insulated vessel SS CIP High-flow rotary spray ball with 360 degree of coverage Sparge arm assembly Top manway Side manway for spent grain out Sight glass light Grist hydrator Raker with VFD motor in Lauter tank Agitator with VFD motor in boiling tank |
Glass manhole
Raker
Hydrator
| Fermentation system |

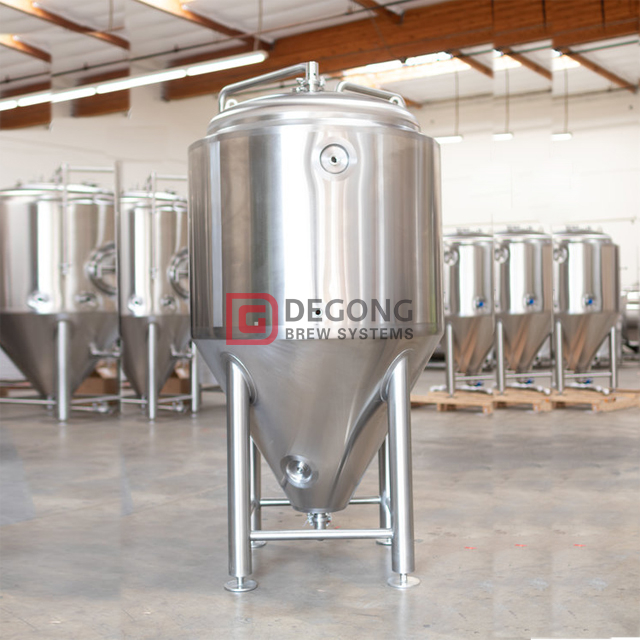

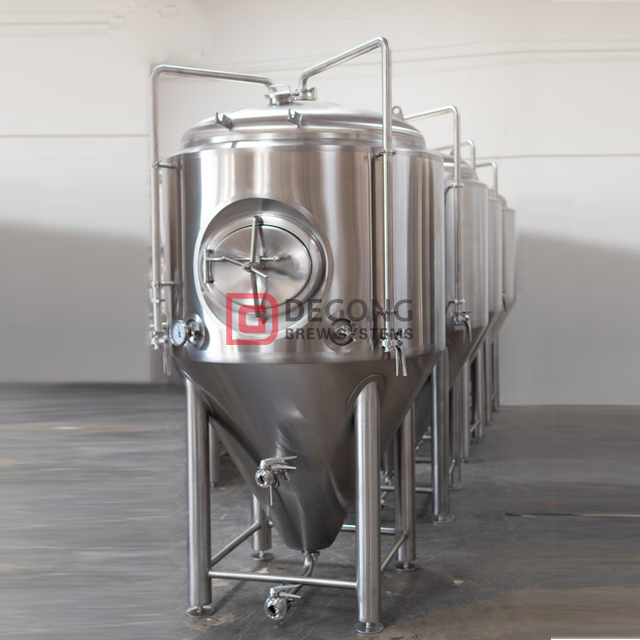

Features of fermentation tank
| – Certificated sanitary food grade SS304 – High quality valves & components – Dual cooling areas which is easy to operate and good for saving energy – Our fermenter is easy to maintain, operate. – Saving time and labor – All fermentation tanks should pass the tank leakage test before leaving our factory – Carbonation stone port is assembled on fermentation tank for special use – With dry hopping at the top of fermenter – Fine welding seams treatment- More economical and competitive – Completely customizable as requested – CE, ISO, TUV approval for our fermentation tank – With tubular level meter for special use – Novel structure and attractive appearance – More humanized design |
Detailed pictures
Carbonation stone
Side manhole
Sample valve
| Company |
With customer

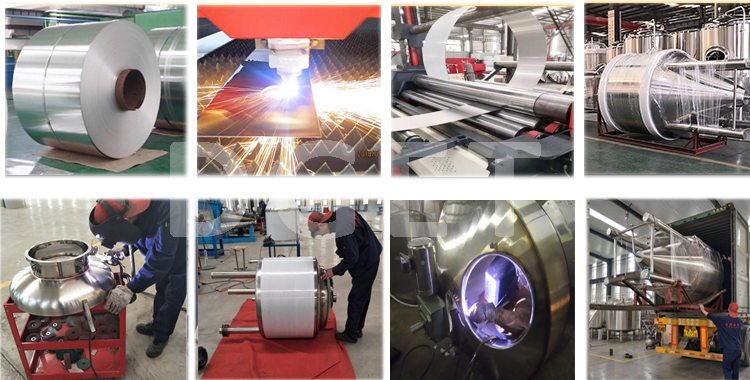

Production team
Exhibition in Germany
| Certification |
If you have interest,please get in touch with me freely.
