500L 700L 1000L 1500L customized commercial industrial beer brewing equipment for hotel/ restaurant
Home » Brewery Equipment » Beer brewery equipment » 500L 700L 1000L 1500L customized commercial industrial beer brewing equipment for hotel/ restaurant

Product Detail

Share to:

500L 700L 1000L 1500L customized commercial industrial beer brewing equipment for hotel/ restaurant

Different customers want to start a brewery project with different sizes of brewery equipment. No matter what size of brewery equipment you want to start with, Degong always makes sure it's available. All of our brewery equipment is custom built, and you can designate the brand you want for the components.

Insulation:
Material:
Size:
Thickness:
Certificate:
Quantity:
  • DGET-1000L
  • DEGONGET
  • 8438400000
Description of high quality beer brewing equipment for hotel


Hotel beer brewing equipment is a good choice for ginshop, barbecue, restaurant who brew beer for customer at scene. Small floor coverage makes it possible to show consumers the whole process of beer brewing. The luxury and sanitary process comforts the consumers and give them impressed experience. The service includes: complete set of microbrewery equipment, installation turn key, recipes and technology of branded beers, staff training and more. Microbrewery comes complete "turnkey" The performance of your Microbrewery (Brewery and mini brewery), if necessary, can be increased in the future.



Consumption of each brewery models



Model capacity  DGET-500L DGET-700L DGET-1000L DGET-1500L DGET-2000L
Capacity  500L/batch 700L/batch 1000L/batch 1500L/batch 2000L/batch
Area request 50sqm 60sqm 100sqm 120sqm 150sqm
Steam request 50kg/h 100kg/h 100kg/h 150kg/h 200kg/h
Water consumption 1 cubic meters 1.5 cubic meters 2 cubic meters 3 cubic meters 4 cubic meters




Configuration list of brewery equipment


System

Components

1. Milling System

Malt Miller

2. Mashing System

Mash/Lauter Tun

Boiler Tank

Boiler

Heat Exchanger

Wort Pump

Stiring Device (Optional)

Other accessories are available: 1. Ornamental Pipe; 2. Mashing Pipeline; 3. Operating Plateform; 4. Yeast Feeder; 5. Venturi Tube; 6. Butterfly Valve DN40; 7. Butterfly Valve DN32; 8. Soft Pipe; 9. Dregs Rake; 10. Sugar Measuring Cylinder; 11. Saccharimeter;

3. Fermenting System

Fermentation Tank

Other accessories are available: 1. L-Pipe; 2. Butterfly Valve; 3. Pressure Gage; 4. Solenoid Valve; 5. Vacuum Valve; 6. Cooling Pipe; 7. Thermal Insulation Pipe;

4. Cooling System

Ice Water Tank

Refrigeration Machine

Centrifugal Pump

Evaporator

Ice Water Pump

Relative Pipes and Valves

5. CIP System

Washing Tank

Sterilization Tank

Pump and Valve

6. Filter System

Kieselguhr Filter

Membrane Filter

Filtered Beer Tanks

7. Packing System

Fresh Keg Packing Machine

Pop Can Packing Machine

Glass Bottle Packing Machine

8. Controlling System

Mashing Control Panel

Fermenting Control Panel

Refrigerating Control Panel

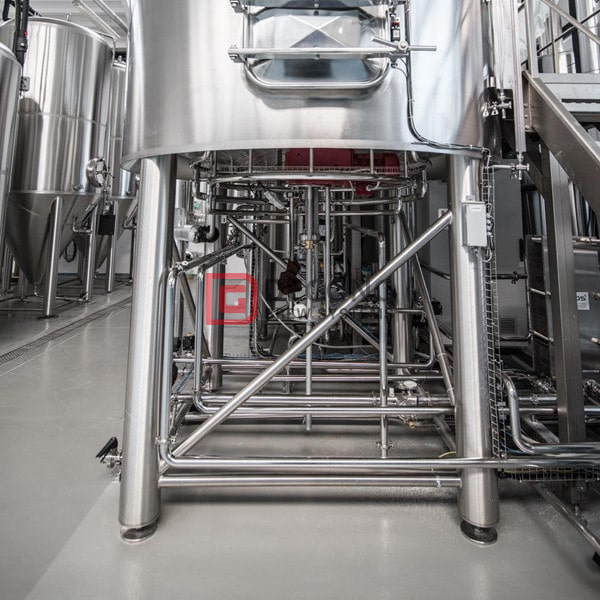

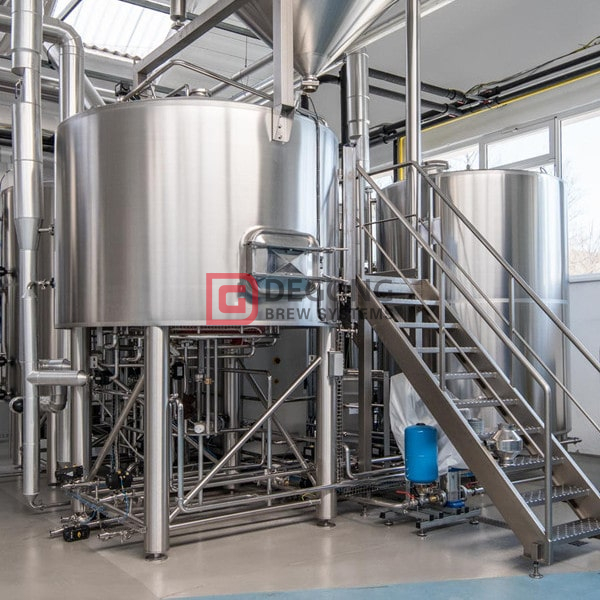

Brewhouse system


Volume + ~30% headspace

Inner-shell (SUS304), thickness: 3.0mm;External-shell (SUS304 OR COPPER), thickness: 2.0mm;

Jacket(SUS304),thickness:1.5mm;

Insulation thickness: 100mm;

Internal 2B finishing, welds polishing to 0.4um

Cylindric and bottom with steam jacketMax 3 bar pressure ensures 1°C/min heating speed.



Assembly:



- Top domed thermostatic hermetic closed glass manway door.

- VFD agitator motor SIEMENS.

- Top domed lighted sight glass.

– PT100 temperautre sensor probe

– Sanitary centrifugal 2.2 kw mash pump SIEMENS with VDF Danfuss controller.

– Bottom mash inlet /outlet.

– Middle side wort/water inlet/outlet.

– Top dome wort /water inlet.

– Middle cone wort outlet.

– Quick installed Spray CIP balls.

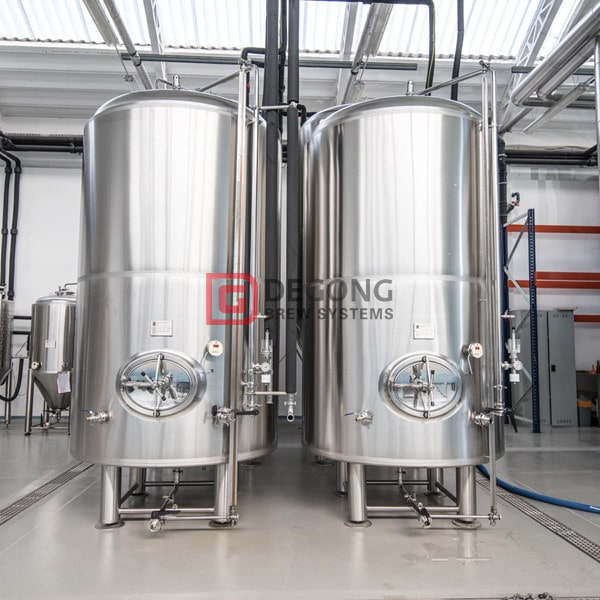

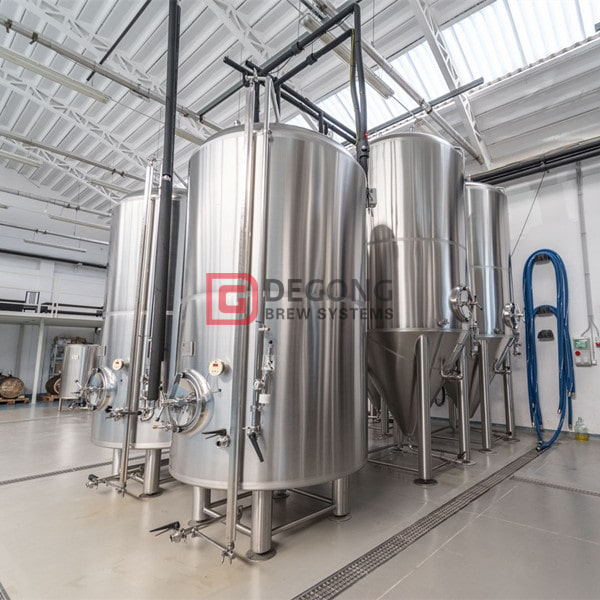

Fermentation system


- Stainless steel 304 sanitary construction

- 100% TIG welded and sanitary polished

- Design pressure: 1.5-2 bar, test pressure: 3bar

- 4 heavy duty stainless steel legs with adjustable height and leveling footpads

- Interior shell: 304 stainless steel , thickness is 3 mm

- Interior is 2B and exterior finish bright polish, sanitary surface

- Tri-clamp sanitary fitting

- Vacuum & pressure relief valve

- Pressure gauge

- Thermometer gauge

- Sample valve

- Lifting lugs

- Ladder hooks, also designed to hold brewers hose when not is use

- Side manhole

- CIP arm and rotary spray ball 360 degree of coverage

- Dual zone cooling jacket with glycol inlet and outlet

- Rotation racking arm

- Dry hopping hole

- Thermo-well (Temperature sensor is also included)


1000L&2000L Fermenters for Irish custoemr_副本_副本


Customer show





Logistics





FAQ


Q1 Can your brewery system make both lager and ale?

Yes. Our brewery system can do this.


Q2 About the heating system:

Normally for 3 heating system;electric,steam and direct fire heating, if the capacity more than 1200l, it needs steam heating, less than 1200l capacity, can be electric,steam,direct fire are all ok,just the electric heating price is cheaper than steam heating and direct fire.


Q3 How to do temperature control?

 The PLC or digital display meter can control the temperature via connecting with the PT100 sensor. Insulation keep the temperature.


Q4 Is it possible to supply installation in my country?

Yes, our engineers can go to your place and teach you installation and brewing.


Services


1.Pre-sales service


Some clients are new in this field, they also no have ideas about how to confirm the configuration list, since we have experience, we can give some suggestions and also other clients for reference, then they will know what they will need exactly. We also have the process video for the brewing equipment, if the client do not know the process, the video will be sent.


We will give the layout according to the client’s floor plan or their requirements.3D layout also can be provided. This can help the client to get a better understanding about the project.



We will give the detailed diagram of the tanks, this can help the client to know whether this is what they need and also can modify them before placing the order.


2.After-sales service



When loading the equipment, we will take photos and show them to the client to confirm everything in the container already. Another important issue is installation,2 options can be chosen by the clients as follows:



1).We can send the engineer there for helping the client install debug the equipment, if it is necessary, the engineer also can teach the client how to brewing beer.



2).We can provide the piping diagram and wire diagram. They are useful for installing. Then the client can install the equipment by themselves.


3).The sales will contact with the client all the time until the equipment running normally. Once the client need any assistances or need any accessory, the sales will provide them soonest.
