500L jacket fermentation tank fermenter with conical bottom

The beer fermentation tank of DEGONG is featured with cost effective and easy to operate. With the high quality and reputation,DEGONGET have occupied the world market over 50 countries.It will be your best choice of the brewery equipment to brew distinctive flavor beer.

Quantity:
  • DGET-500L
  • DEGONG
  • 8438400000

Overview



The 500L beer fermentation tank of DEGONG is  featured with high cost effective and easy to operate.   With the high quality and reputation,DEGONGET have occupied the world market over 50 countries.It will be your best choice of the brewery equipment to brew distinctive flavor beer.




Fermentation tank Size


Double wall stainless steel tank

  • Gross capacity:630L

  • Useful capacity:500L

  • Outer diameter:Ø960mm;

  • Total height: 2200 mm


Fermentation tank Technical parameters



  • Material Inner (SUS304)thickness: 3.0mm; Outer(SUS304)thickness:2.0mm

  • External-Jacket(SUS304) thickness: 1.5mm;

  • Oval head cone bottom, thickness: 3.0mm.

  • Surface: Finish2B – cold-rolled, annealed, pickled

  • Inner surface treatment: welds grind to Ra 0.6μm (attached 360 degree Omni cleaning ball).

  • Mirror surface finish inside.

  • 100% TIG welding with pure argon gas shield

  • Insulation: Polyurethane-thickness 100 mm.

  • Equipment with : cone 60°resist compression design,dripping 10.Temperature drop.

  • Cleaning System: All-round cleaning


IMG_8633_副本-min

outside surface  polishing

Fermentation tank Accessories



  • Yeast adding tank

  • Sample valve

  • Pressure gauge

  • Safety valve

  • butterfly valve

  • Thermometer gauge and so on


DSC_1026_wps图片_副本-min

sample valve&butterfly valve

Why choose us


Quality

Quality is the soil of an enterprise. We can offer you competitive advantage products.With us,your money in safe and your business in safe.

Delivery

Time is vital for both of us,so we have professional team work and production line to make sure the delivery in time.

Certificate

Our equipment is coming with certifications of PED and our company is TUV approved. We use CE approved components which all reach the food sanitary standard for customers. The quality, specification and function all meet the treaty of contract.



01-min

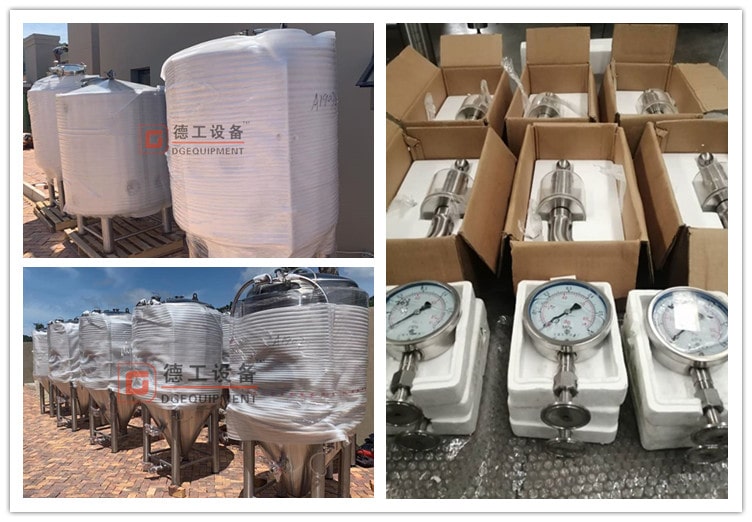

Packing



Package Type : As usual, we adopt wrapping film or wooden case as package type.

Sheet iron case and so on are available according to customers' special demand.

Transport : By sea.

01

Contact us


Every fermentation tank is unique and requires different specifications. Please shoot us an email or give us a call for a quote.

AlicePC-min
