Normally, our 400L brewhouses are mainly installed in small breweries,restaurants, pub, bars, hotels, tourist and shopping centers etc. With the society development, more and more people are interested in craft beer. And nothing brews delicious beer better than Grain beer brewing equipment.
Our brewhouse is the system for beer brewing from the beginning of mashing process stage until the wort is cooled then passed into fermenters. Both decoction mashing and infusion mashing can be done with our equipment.
|Fermentation tank coolinig:|
About the sanitary stainless steel 304 , we use 3mm interior shell and 2mm exterior shell.
Generally our technician will design the suitable layout accordingly before production once our customers confirmed their orders.Then our workshop will do the manufacturing strictly according to the detailed drawing.
We make sure the 100% TIG welding with pure argon gas shield. We use the central system of argon, instead of ordinary gas cylinder.The argon will help to reduce the oxygenation. After welding, they will be polished to arrive to 0.4 μm without dead corner firstly, then do acid pickling and passivation.Which will help to remove the oxygenation on welding line; and form protection film on the steel to avoid rust. It will help you to extend the tanks life time.

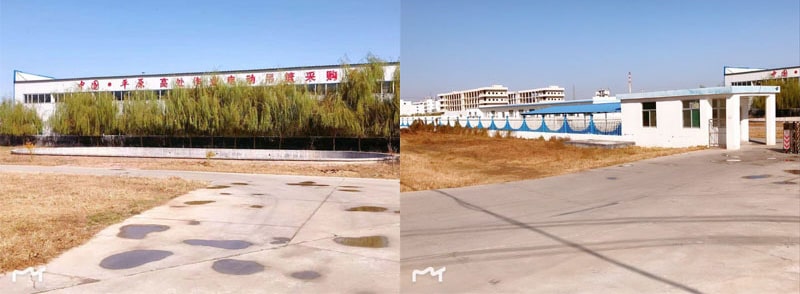

welcome to visit our factory
Brewhouse equipment with pressure glass manhole design, with spotlights auxiliary functions.
With this design, you can reduce the degree of oxidation of beer, beer oxidation lighter taste. Help to improve the quality of mature beer.
Brewhouse system design We use pressure glass manhole, saccharification process without opening the manhole conditions, turn on the spotlight, we can better observe the whole process of malt saccharification through the glass manhole. In the wort boiling process, we can intuitively see the wort boiling strength, wort is less susceptible to oxidation, get better quality wort.
Grain rake for uniform mashing
Grain out door with grain chute
Laser cutting false bottom
Grist hydrator for optional
Steam jacket for optional
Steam, electric, or direct-fired for heating optional
Tangential whirlpool inlet
hot water tank
Malt rolling miller
mash system details
400L Conical fermenting system are mostly used in microbreweries. The fermenters are used both for fermenting and lagering. The design of beer fermenter is based on our vast beer knowledges and especially the conical fermenter bottom and the fact that we combine fermentation and maturation in the same vessel is very important. Conical bottom is convenient for recycling the yeast after finishing the fermenting.
Completely acid washing & passivation
High accuracy temperator control
Adjustable pressure control
beer fermenter accessories
