DGET-300L
DGET
8438400000
Good balance between investment and future profits based on limited budget
Simple but perfect solution to guarantee stable beer quality
Easy to get used to the whole system operation
Can be manual or automatic control level
Well pre assembled system for easy installation
Well suits the local authority regulation
Good heating efficiency to guarantee right evaporation
Grain handling: Mill, optional malt conveyor unit
Brewhouse: 2-vessel, electric or steam heating
Cellar: Fermentation tanks + brigh beer tanks or unitanks, pre assembled piping line
Cooling: Chiller connected with glycol tank for fermentation and wort cooling
CIP: Portable CIP trolley or movable pump
Control: control cabinet(famous brand)

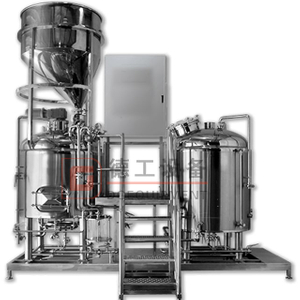

300L brewhouse system: mash/lauter tun+boiling/whirlpool tun+hot water tank(optional)
| Fermentation tank configuration | |
| Total capacity | Effective capacity +25% Headspace minimum |
| Interior Shell | SUS304 full welded; TH=3mm |
| Exterior Shell | SUS304 full welded; TH=2mm |
| Insulation | polyurethane,TH=1.5mm |
| surface treatment | Surface brushed; Polish treatment |
| Manhole | top manhole or side manhole |
| Temperature measurement system | Temperature sensor PT100, temperature display by intelligent data meter |
| Tank pressure | Design pressure 0.3MPa; Working pressure 0.2Mpa |
| Accessories | ice water solenoid valve mechanical regulator valve thermometer, pressure gauge breather valve Butterfly valves Sample valves Beer outlet valves Drain outlet: optional: one detachable Ladder stair, SUS304 |

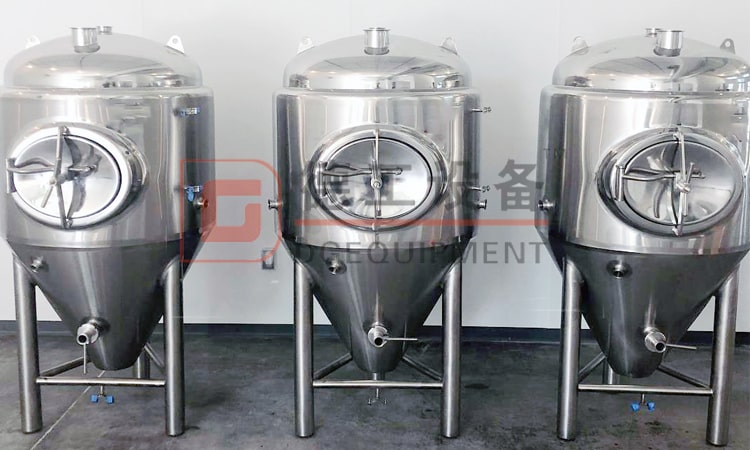

300L beer fermenters
300L fermentation tank details
1. Highly competitive price, more than 10 years production and manufacturing experience
2. ISO9001, CE, TUV certification
3. Strictly quality control, meet the European quality standard, take 3 times water pressure test during production.
4. Accept customized, professional engineers will provide design solutions for you
5.Use high-quality 304 stainless steel, ensure the thickness of the material
6. Dimple plate cooling jacket, better cooling effect and longer service life
7. Equipped with safety valve, water-sealed pressure valve, to ensure the safe operation of the fermentation tank
8. With our equipment you can make different kinds beer such as ale,lager, IPA, stout beer and so on, we supply the brewing recipes
