Normally, our microbrewery brewhouses are mainly installed in small breweries,restaurants, pub, bars, hotels, tourist and shopping centers etc.
With the society development, more and more people are interested in craft beer. And nothing brews delicious beer better than Grain beer brewing equipment.
Our brewhouse is the system for beer brewing from the beginning of mashing process stage until the wort is cooled then passed into fermenters. Both decoction mashing and infusion mashing can be done with our equipment.
| Insulation: | |
|---|---|
| Material: | |
| Certificate: | |
| Heating method: | |
| Quantity: | |
Mash Lauter tun with grist hydrator
Kettle Whirlpool Tank with heating jacketed
Grant Tank
Stainless steel Platform
Plate Heat Exchanger
Sanitary Wort Pump x2
Wort Oxygenator;
Semi-Auto Control Panel;
Interior surface to finish pickled and passivated
Exterior surface to brushed, finish
or
Interior surface to polished to RA≤0.22μm
Exterior surface adapts satin polish.
Heating method:
Steam: Dimple plate jacket with inlet/outlet fittings for Steam heat transfer;
Electric: Use electric heaters in jacket to heat the medium in the jacket
Direct fire: Use gas burner at bottom to heat tank directly;
Material: Brushed Stainless Steel 304;
Working volume: 1200L;
Top mounted glass manhole, milled sieve plate, with dense supporting leg, with detachable handle, domed top; top hydrator , manual mixing valve,
LED sight light, sight glass ,side spent grain exit, with lagering and high gravity brewing capabilities.
with mechcanical stirring rake above the mash tun, frequency control.
CIP rotary spray device; safety combination;
polyurethane insulation
Inner Body Thickness: 3mm.Outer:2.0mm
Outer and Inner plate protection, ribbon polished on welds. Indoor exhaust device, with steam condenser pipe,Reinforcing ring for pipe
With steam heating jacked; sparging coil
PT100 temperature probe.
With all necessary accessories.

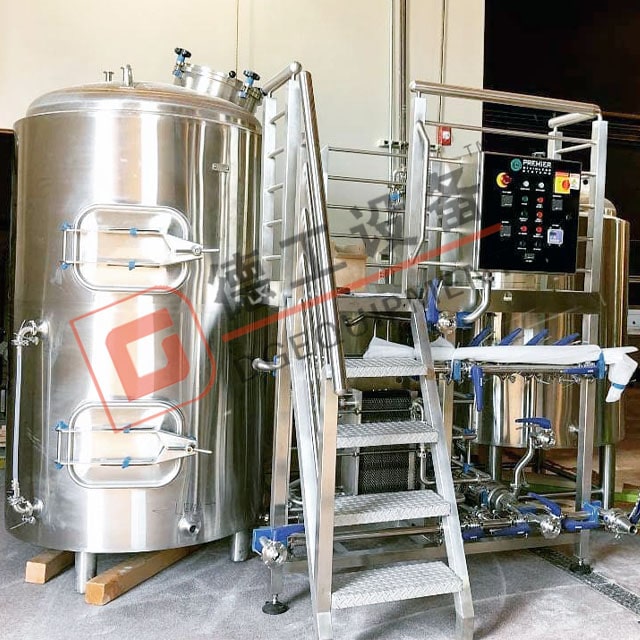

1200L brewhouse system details

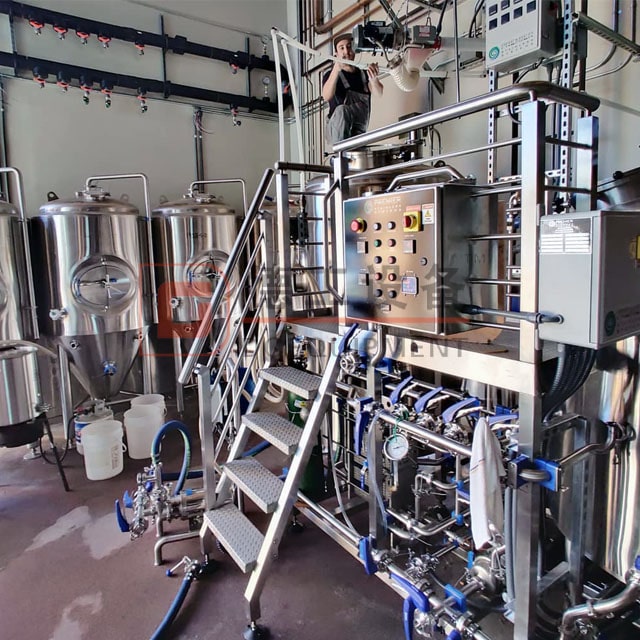

the brewhouse system is running
Sanitary wort pumps with variable speed control
Two stages or single stage heat exchanger for wort cooling
Manifold for liquid flow easily controlling
Completely stainless steel integrated work platform
Sanitary wort aeration mounted with stone
Glass wort grant
Control panel for brewhouse: Temperature control and Frenquency control
Hot liquor tank (optional)
Cold liquor tank (optional)
Grist case/hopper (optional)
Hop back (optional)
Wort grant (optional)
Wort Testing Stand - Sink & Wort Cooler (optional)
Kettle Calandria (optional)
Kettle Condenser (optional)
1200L 3D brewhouse system
If you are interested in DEGONG beer equipment, get in touch with me freely.
