300L 500L 1000L Micro Beer Fermenting Brewery Used Customized Single/double Wall Fermentation Tank Brite Tank /Unitank

Fermentation, bright beer tanks and beer serving tanks produced by DEGONG are double jacketed, cooled, insulated by 100 mm of polyurethane and equipped with all needed accessories for successful beer fermentation. Our fermentation tanks produced as “Uni Tanks” and can be used as bright beer tanks also. Manholes can be side or up located according to the customer wishes.
Our fermentation and bright beer tanks have two separate cooling zones at cylinder and the cone of the tanks.

Fermentation Tanks

DEGONG fermentation tank are welded with 100%TIG and polished to Ra≤0.4. Our cooling jacket covers all the tank, including cylinder and conical bottom. Two-stage cooling dimple jacket at cylinder and conical bottom improves the cooling effect, which ensures maximum efficiency. Our fermentation tank can be customized according to the actual situation of the customer. When designing the tank, we will consider all factors for the customer, such as the height of the room, the size of the space and so on, so as to ensure that the tank can not only produce the best beer, but also suitable for the customer's existing site.

As a reference,the size of fermentaiton tank is according to its capacity

Fermentation tank Features:

• Design pressure 15 psi

• Interior shell: 304 stainless steel, thickness 11 gaugge

• Exterior shell: 304 stainless steel, thickness 14 gauge

• Interior and exterior finish bright polish to 250 grit, hygiene surface

• 60 degree cone bottom, with 25% head space

• Racking port and discharge port with butterfly valve and fittings

• Side manway door, shadowless

• Dual zone dimple cooling jacket with glycol inlet and outlet (3 zone for larger tank)

• Polyurethane insulation thickness 2” for cooling jacket on side and bottom

•Fully welded exterior shell

•4 stainless steel legs with leveling foot pads in stainless steel

•CIP arm and spray ball. Co2 Blow-off arm in 2”

•Rotating tank racking arm

•PRV 15 psi

•Pressure gauge

•Thermometer

•Perlick style Sample valve

•Tank complete with fittings, valves and all parts

Bright beer tank

We offer horizontal lagering tanks in individual and stackable options. We can adjust port locations and clocking to better utilize space and run glycol piping. We offer options such as stainless dry hop funnels, uni-tank configurations and brite tank racking arms upon request. If you can dream it, we can do it.

As a reference,the size of bright beer tank is according to its capacity

Beer brite tank Features:

304 SS TIG weld construction

#4 sanitary brite polish SS exterior finish

Operating pressure rated at 15psi (tested to 60 psi)

Reinforced stainless steel legs with adjustable height for leveling

Side and bottom cooling jackets

Tri-clover sanitary fittings

Perlick style turn knob sample valve

Pressure/vacuum relief valve

Temperature gauge port

RTD sensor port

Side man way door (top manway optional)

CIP arm and rotating spray ball 360° of coverage

Gas arm with pressure gauge

Lifting Lugs

Ladder hooks

Butterfly valves included

Optional racking arm available with DIN, or tri-clover fitting option

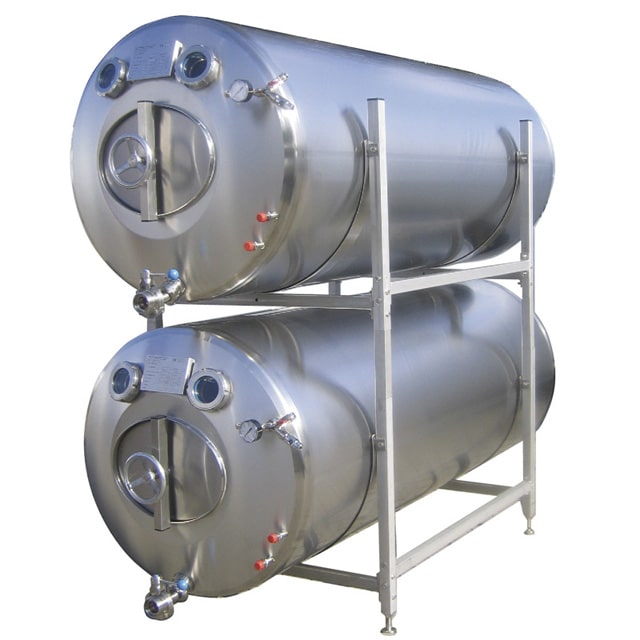

Horizontal stackable brite tank

Vertical beer bright tank

Company information

If you have interest in DEGONG beer brewing equipment,welcome to contact me freely
