2000L Commercial Brewing System Setup Conical Dimple Jacket Stainless Steel 304 Beer Conical Cylinder Tank Unitank

The fermentation tank are all 304 SS TIG weld construction and polished to a sanitary interior finish.Our fermentation tank can be customized according to the actual situation of the customer. When designing the tank, we will consider all factors for the customer, such as the height of the room, the size of the space and so on, so as to ensure that the tank can not only produce the best beer, but also suitable for the customer's existing site.

Material:
Insulation:
Polyurathane:
Jacket:
Quantity:
  • DGET- 2000L
  • DGET
  • 8438400000


Fermentation system component

Fermentation is the process of producing alcohol and carbon dioxide by anaerobic respiration of yeast. This is the real "beer-making" stage. Yeast fermentation requires a process of aerobic respiration first and then anaerobic respiration. Aerobic respiration yeast multiplies in large numbers to provide more yeast for anaerobic respiration later. Anaerobic respiration produces the final alcohol and carbon dioxide after oxygen is used up.

After finishing fermentation in a fermentation tank,then pump beer into a bright beer tank to mature

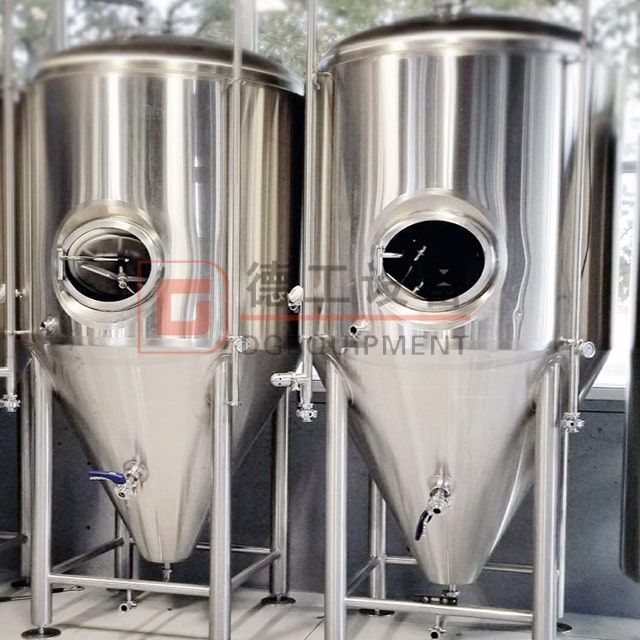

1.Beer fermentation tank


2000l beer fermentation tank is welded with imported high-quality stainless steel materials, with the accuracy reaching the sanitary standard. The internal part is polished, the external part is polished with stainless steel, imported polyurethane high-pressure foaming and heat preservation, and the conical shape.Our fermentation tank can be customized according to the actual situation of the customer. When designing the tank, we will consider all factors for the customer, such as the height of the room, the size of the space and so on, so as to ensure that the tank can not only produce the best beer, but also suitable for the customer's existing site.


Beer fermentation tank

Beer fermentation tank



2.Bright beer tank


Our Bright Tanks feature an impeccable interior finish and an easy installation. Bright beer tank is used for beer maturation,storage and beer selling in brewpub.

bright beer tank

Bright beer tank/service tank is restaurant/brewpub



Fermentation system features




All AISI-304 Stainless Steel Construction

Jacketed & Insulated

Dual Zone Dimple Cooling Jacket

Dish Top & 60° Conical Bottom

4 Stainless Steel Legs with Leveling Ports

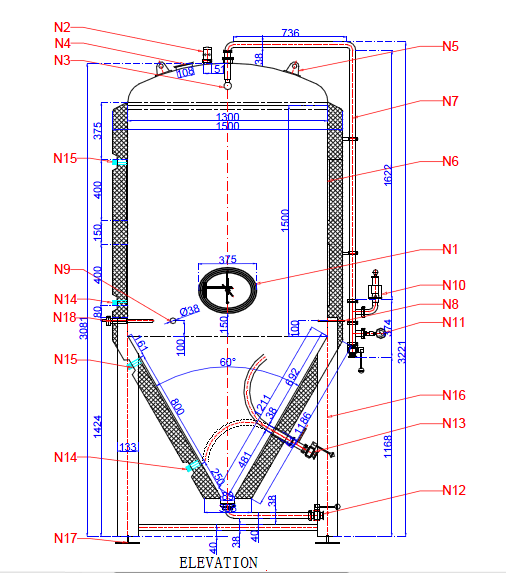

Specifications of 2000L fermentation tank:

Working Capacity: 2000L

Total capacity:2500L

Inner Diameter: 1300 mm

Outside Diameter: 1500 mm

PU Insulation: 100mm

Cylindrical Height: 1500 mm

Total Height: 3150 mm

Dimension: L x W x H 1500 x 1500 x 3150 mm

Thickness: Inner Shell: 3 mm, Dimple Jacket: 1.5 mm Cladding: 1.5 mm

QQ截图20201210163907



All AISI-304 Stainless Steel Construction

Jacketed & Insulated

Dual Zone Dimple Cooling Jacket

Dish Top & 150° Conical Bottom

4 Stainless Steel Legs with Leveling Ports

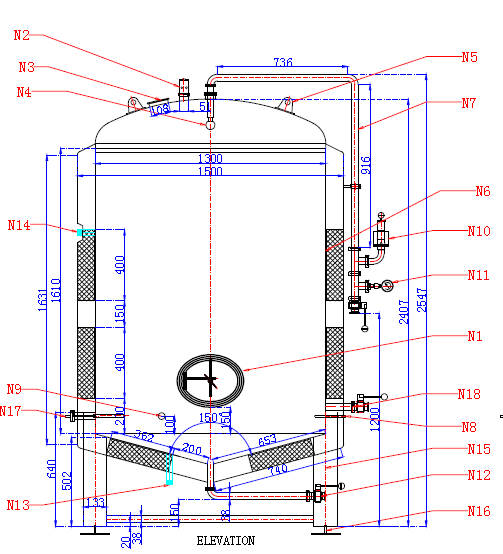

Specifications of 2000L bright beer tank:

Working Capacity:2000L

Total capacity:2400L

Inner Diameter: 1300 mm

Outside Diameter: 1500 mm

PU Insulation: 100mm

Cylindrical Height: 1600 mm

Total Height: 2550 mm

Dimension: L x W x H 1500 x 1500 x 2550 mm

Thickness: Inner Shell: 3 mm, Dimple Jacket: 1.5 mm Cladding: 1.5 mm

QQ截图20201210163839


Accessories Includes:

Top Manway or Side Shadow less Manway

Racking Port with Tri-Clover Butterfly Valve(For FT)

Discharge Port with Tri-Clover Butterfly Valve

CIP Arm and Spray Ball

Hops addling port

Sample Valve

Pressure Gauge

Safety Valve(Apunding valve and pressure release valve)

Thermowell with Tank Thermometer

Carbonation stone valve

Level gauge(Optional)

All fittings, clamps, and valves are included with tank.


accessories on fermentation tank


fermentation tank details
