2000 Litre 20 BBL Stainless Steel 304 Beer Fermentation Tank And Beer Service Tank for Commercial Brewery Used

Beer fermentation system introduciton

Customizing tanks to fit a space is common and no additional charge in most cases. We have designed and installed stackable fermenters, brite tanks and serving tanks. These systems save space, take advantage of available clearance and look incredibly appealing to brewery goers.

We offer horizontal lagering tanks in individual and stackable options. We can adjust port locations and clocking to better utilize space and run glycol piping. We offer options such as stainless dry hop funnels, uni-tank configurations and brite tank racking arms upon request. If you can dream it, we can do it.

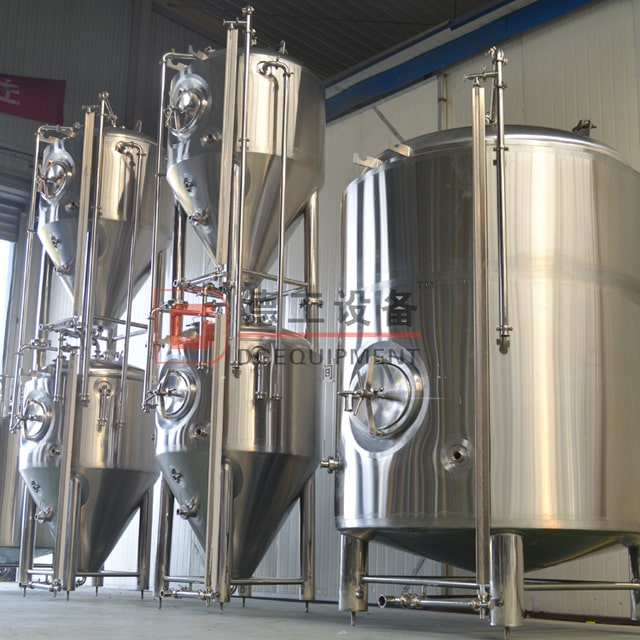

Fermentation Tanks:

Without a proper fermentation tank, you won’t be able to make beer, especially not beer of a decent quality. You won’t be able to control airflow, measure gravity, remove yeast, or retrieve the beer. Thus, one of the most important tools for crafting great beer is a great fermentation tank. Fortunately, you can perform all of the tasks we just described with DEGONG fermentation tank.

 Individual vertical fermentation tank

Stackable fermentation tank

• 304 SS TIG weld construction

• #4 sanitary brite polish SS exterior finish

• Operating pressure rated at 15psi (tested to 60 psi)

• Reinforced stainless steel legs with adjustable height for leveling

• Side and cone cooling jackets

• Tri-clover sanitary fittings

• Perlick style turn knob sample valve

• Pressure/vacuum relief valve

• Temperature gauge port

• RTD sensor port

• Side man way door (top manway optional)

• Racking arm with DIN, or tri-clover fitting option

• 4″ or larger dry hop port (large stainless steel funnel optional)

• CIP arm and rotating spray ball 360° of coverage

• Gas arm with pressure gauge

• Lifting Lugs

• Ladder hooks

• Butterfly valves included

• Uni-tank option available for carbonation stone assembly

Brite Tanks

In addition to a fermentation tank, you will also need a Brite tank if you don’t already have one.We offer horizontal lagering tanks in individual and stackable options. We can adjust port locations and clocking to better utilize space and run glycol piping. We offer options such as stainless dry hop funnels, uni-tank configurations and brite tank racking arms upon request. If you can dream it, we can do it.

Horizontal brite tanks

Vertical brite tanks

•  304 SS TIG weld construction

• #4 sanitary brite polish SS exterior finish

• Operating pressure rated at 15psi (tested to 60 psi)

• Reinforced stainless steel legs with adjustable height for leveling

• Side and bottom cooling jackets

• Tri-clover sanitary fittings

• Perlick style turn knob sample valve

• Pressure/vacuum relief valve

• Temperature gauge port

• RTD sensor port

• Side man way door (top manway optional)

• CIP arm and rotating spray ball 360° of coverage

• Gas arm with pressure gauge

• Lifting Lugs

• Ladder hooks

• Butterfly valves included

• Optional racking arm available with DIN, or tri-clover fitting option

•  All Construction is from food grade stainless steel 304, all pipes are SUS304

• All tanks have a 25% fermentation space at least

• All tanks will be tested and inspected in the NDT room after construction & Quality Control Checks

• All jackets will be tested using water pressure testing, testing pressure: 0.4Mpa (4 Bar) & working pressure:0.2Mpa (2Bar)

• All tanks will be pressure tested for 48hours before leaving factory;

• All the welds are full TIG welded by water spray method to ensure uniform weld pattern with full pickling & passivation

• All tanks are mirror polishing inside, to be Ra 0.4um.
