DGET-1500L
DGET
8438400000
Commercial Brewery Equipment is a large craft brewery or brewing company systems compared with homebrewing equipment, max home brewing system is 5bbl. The diversity of size in breweries is matched by the diversity of processes, degrees of automation, and kinds of beer produced in breweries. A brewery is typically divided into distinct sections, with each section reserved for one part of the brewing process.
Safe operation
Saving labor
Energy recovery
Larger output
Environmental protection
This system can meet beer mashing requirements, including malt milling, moshing, wort filtration, wort bail, whirlpool, cooling, oxidation and so on.
All tanks were made by SUS304, in accordance with the standard of food hygiene and safety standards. Steam heating.
The tank is equipped with variable frequency mixer which can achieve the change of rotating speed from 0 to 50r/min and meet the requirements of rotating speed for mashing mixing and filtration tank mixing.
It can be automatic control or semi-automatic control according to customers' requirements.
Input and output of material and circulation are connected by sanitation pump and hose.
Connection type of pipelines for equipment is quick assembly which is convenient to clean, maintain and repair during production.
Reasonable design, delicate process, nice appearance, durable service, easy to operate, repair and maintain.
1500L craft beer equipment 3D

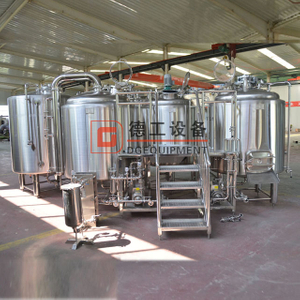

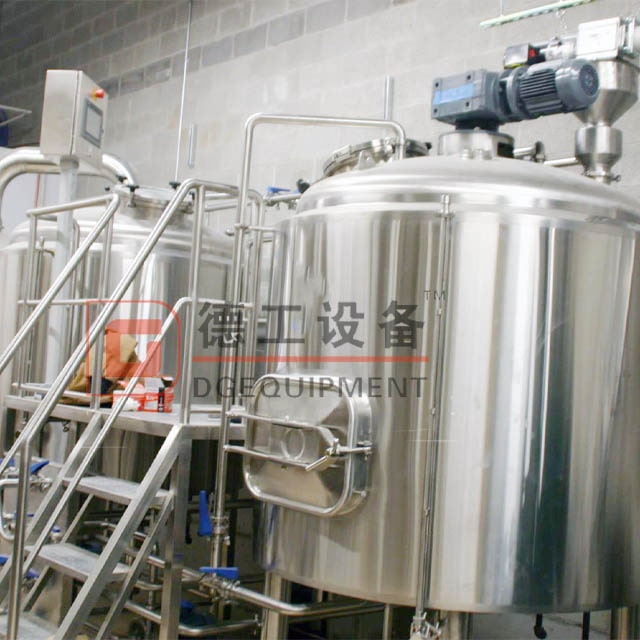

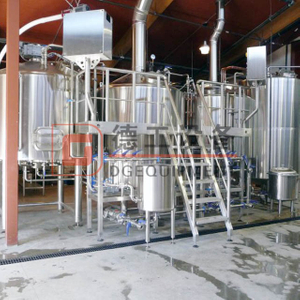

brewhouse system details
Centralized control, manual control and automatic control work together. Reduce investment, water saving, energy saving, gas saving, low consumption, high efficiency.
The brewhouse is consist of mash tun/lauter tun, hot water tank (up-down structure) and kettle / whirlpool tun.
The brewhouse is equipped with wort pump, heat exchange plate, cold-hot water mixer, pipeline, valves and controllers.

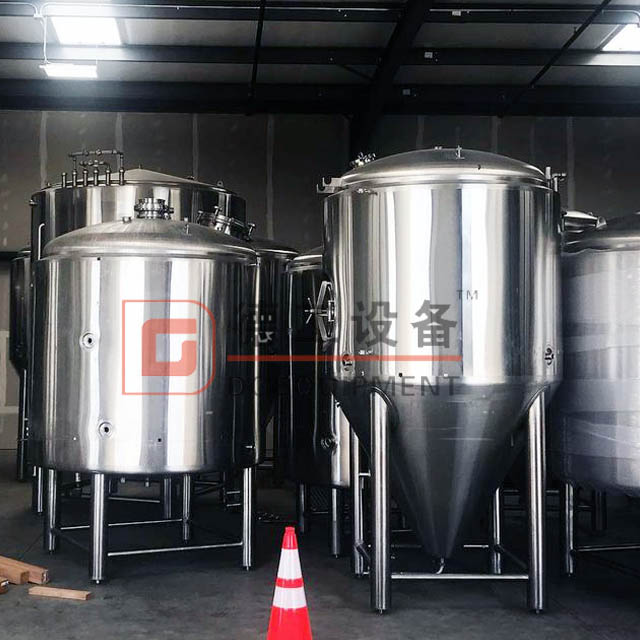

The brewhouse works together with fermentation tanks, bright beer tanks, water treatment tank, chilled water tank, glycol tank, malt milling, screw conveyor, glycol tank, steam generator, CIP system, beer keg washer, beer filling machine.
brewhouse system pipe connection
It can save hot water from heat exchange plate to hot water tank for feeding material, grain washing and cleaning.
Exhaust pipe for kettle tun will condensate the steam to water, this method will avoid to cause environmental pollution, we can use the water to wash floor.
Mashing and filtration in one tank will save time and reduce wort oxidation. Stagger scraper spindle head can help scraper to a high level, this design reduces work obstruction and save more energy. The back purge system at the bottom of the tank will wash the tank bottom clean.
The key and frequent operation point can be equipped with hand control or automatic control.
Perfect and smooth process design makes the whole equipment compact easy to operate.
transportation
