Beer brewing equipment are usually independently owned. Such breweries are generally characterized by theire empahsis on flavor and brewing technique. We supply microbreweries from 50L to 5000L per brew. Our service includes:complete microbrewery equipment, installation, recipes of branded beers, staff training etc. If necessary, it can be expanded in future.
|Thickness of material (mm):|
|Description of 1500L beer brewing equipment|
1500L beer brewing equipment made by us is a set of technological equipment for the production of "live" and filtered beer. Brew master make their beer attractive to consumers by unique brewing process and distinctive beer taste. If desired, they can be placed directly in places of consumption of beer: restaurants, pub, bars, hotels, tourist and shopping centers. Interpreter may be faced with polished brass, copper besides stainless steel. Also, the microbrewery is placed behind a glass partition that allows visitors to observe the process of making beer. This is an excellent design solution interior and a powerful marketing tool.

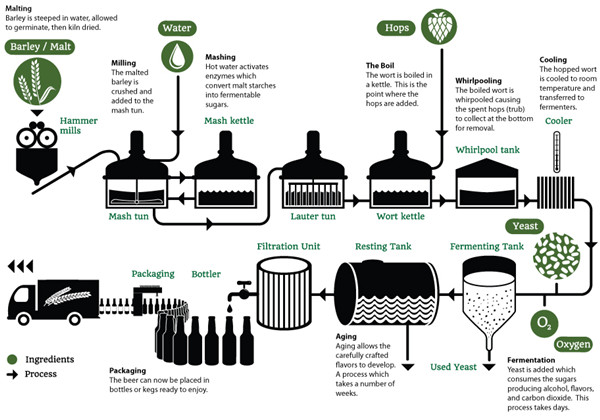

|Brewing process illustration|
- First step: crush malt with malt miller so that the useful matters inside the malt can be extracted much easier during the mashing process
- Second step: Mashing - lautering - boiling wort - whirlpool. Mixing the water and crushed malt to form mash, with the temperature being increased periodically, the useful matters can be extracted from the malt and then dissolved into the brewing water to form "wort".
- Thrid step: Fermentation process, after being pumped into the fermenters, the wort will be converted into the drinkable beer after two processes which are aerobic respiration and anaerobic respiration.
- Forth step: Beer aging procee, even though the beer is drinkable after the fermentation process, but beer aging allows beer to be more clean.
|Detailed info of 1500L beer brewing system|
1. Malt milling system
Particle adjustable rolling crusher
Flexible or steel auger for optional

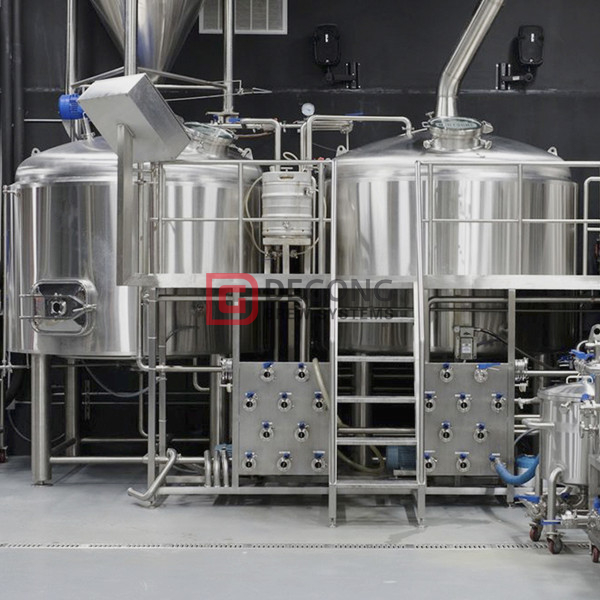

2. Brewhouse system
Mash tun, Lauter tun, Boiling Kettle, Whirlpool tun in various combination
Hot water tank and cold water tank for optional in special combinations
Infusion or decoction brewing methods are designed exactly
Stainless steel or copper cladding are popular
Two stages or single stage heat exchanger for wort cooling
Completely stainless steel integrated work platform
Sanitary and efficiency wort pump
All pipings and fittings

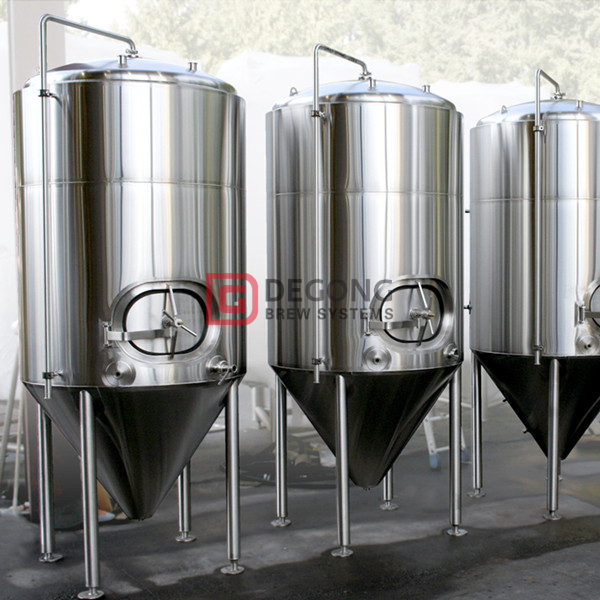

3. Fermentation system
Standard stainless steel conical cylindrical fermentation tanks
Single size as brewhouse is common used in restaurant
Tanks quantity is exactly calculated by fermentation cycle for various beers
All manhole, valves, pressure gauges, fittings etc are included
4. CIP system
For cleaning all the pipes and tanks of the brewing system
5. Cooling system
Electrical controlling cabinet with temperature, on-off controlling for brewhouse
Electrical controlling cabinet with temperature, on-off controlling for cooling parts
Temperature controller, thermocouple, solenoid valves etc are included
PLC with touch screen panel for special request
Q1 Can your brewery system make both lager and ale?
A1 Yes. Our brewery system can do this.
Q2 How to do temperature control?
A2 The PLC or digital display meter can control the temperature via connecting with the PT100 sensor. Insulation keep the temperature.
Q3 Is it possible to supply installation in my country?
A3 Yes, our engineers can go to your place and teach your person installation and brewing.
1.We supply the complete turnkey beer brewery equipment include the bottle and barrel filling system.
2.The detailed floor plan,CAD drawing and 3D drawing of the brewery,installation pipeline connection drawing,the operation manual.
3.We can transport the goods to your delivery place.
4.Support sending engineer to install and training technology on site and supervised-installation with remote support.
5.We supply the beer recipes,brewing technology.
6.Guarantee 3 Years service for the beer brewery equipment.
