Insulation: | |
---|---|
Material: | |
Control system: | |
Certificate: | |
Pressure : | |
Availability: | |
Quantity: | |
DGET-1000L
DEGONGET
8438400000
Product description |

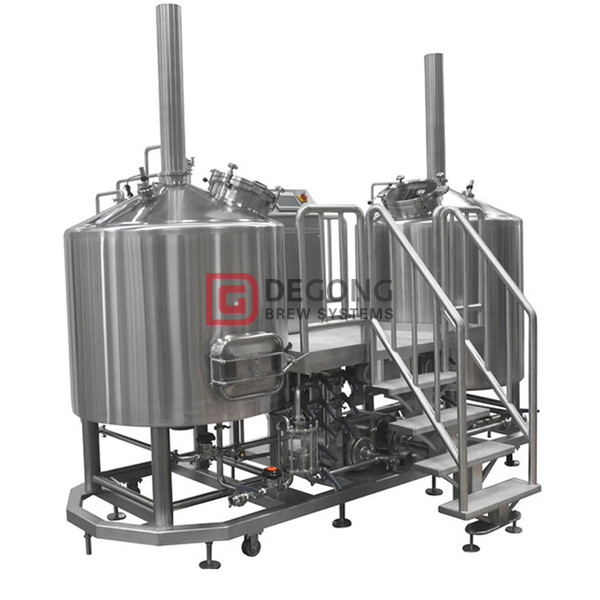

mash/ lauter tank, kettle/ whirlpool tank, hot water tank; wort pump, hot water pump, heat exchanger,
other accessories: mashing pipes, thermometer, wort oxygenate assembly, titanium stick, survey barrel, sanchorometer, rake, work platform
DGET experienced team of engineers and brewers work together to design every brewhouse. We meticulously focus on the details, like pump and valve placement, aiming to maximize brewhouse efficiency and ease of use. With a SDET Brewhouse you will hit your gravity targets quicker and run up and down the platform less often.
Choose State-of-the-Art 2, 3 and 4 Vessel Brewing Systems
Whether you want to save space, money, and time by only using a 2 vessel mash and boil kettle or you need a dedicated HLT tank alongside them, we have a solution for you.
Our stainless steel vessel brewing systems are insulated using chloride-free, 100mm Rockwell insulation, keeping temperatures at exactly the level you need them to be.
They also allow you to produce batches at record speeds, from the beginning to the cleanup process. Maximize your brewhouse’s efficiency with our systems!
Standard configuration list of 1000L brewery equipment |
Brewing System | Components | Capacity | Specification |
Grinding System | Miller | 300KG/H | Double Roller,Noise<60db |
Heating System | Boiler | 100KG/H | Electric,Gas,Oil,Coal Type/CE certification |
Brewhouse System | Mash/Lauter tun | 1000L | Mashing Process:Decoction.Infusion.Multi-step infusion Interior:3mm Exteior:2mm |
Brew Kettle/ Whirlpool Tank | 1000L | ||
Hot Water Tank | 1500L | ||
Heat exchanger | 10SQM | Stainless steel plate | |
Fermentation System | Fermentation Tank | 1000L/2000L | Top manway/Side manway Drying hop port to brew IPA Dimple Plate Cooling jacket Carbonation port to fill CO2 |
Yeast Adding Tank | 10L | SUS304 Stainless Steel | |
Cooling System | Glycol Water tank | 3000l | Equiped with PU level indicator |
Chiller | 5P*2 | UL/CE certified electric elements,Copeland compressor | |
Pump | 3T | ||
Cleaning System | Disinfection Tank | 100L | SUS304 full welded |
Alkali Tank | 100L | ||
Pump | 3T | ||
Control System | Control Cabinet | Manual/PLC/ HMI | Manual/Semi-automatic/Automatic |
Optional | Auger System | ||
Grain Case | |||
Grist Hydrator | |||
Piping flow panel for Brewhouse | |||
Brewhouse Separate PLC Controller | |||
Customized | |||
Technical Parameter | Power: |

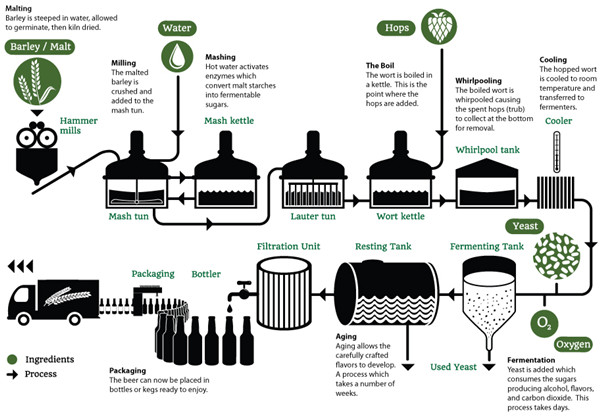

Brewing process |
Malt crushing - Mashing process - Fermentation process - Beer aging process - Beer filtration process - Beer distribution
Services |
Pre-sale service
1. Free of making offers, craft and technical guidance.
2. We can provide company’s qualification certification and the drawings.
3. We can also make customized products according to customer’s needs.
After-sale service
1. We provide long-term after-sale service.
2. Owing to the quotation of our equipment is FOB price.Thus, if necessary, we can appoint our technician to debug the machine with air ticket, visa, accommodation and labor cost provided by your party. Or you can send your technician to our company to learn techniques.
3. Meanwhile, you can call or e-mail to consult any relevant questions since we have a special line of after-sale service.

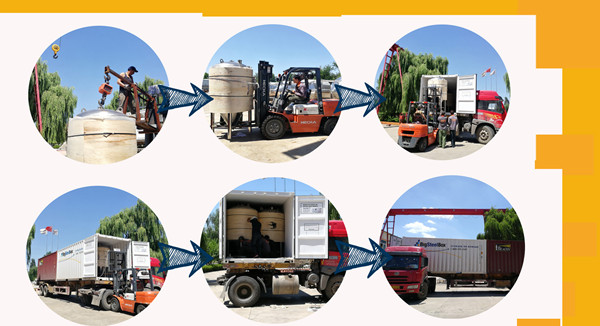

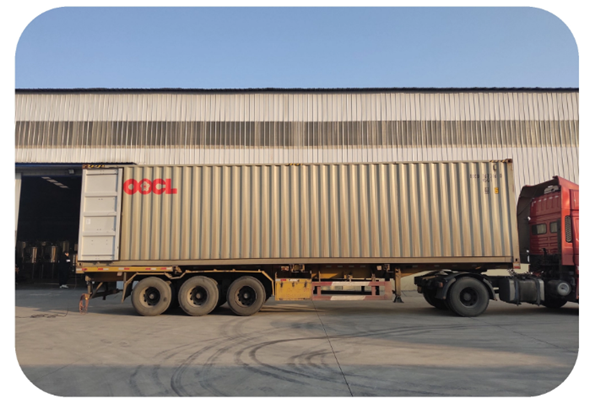

Logistics & packaging |
Packaging: Wooden case package and steel frame package, besides, any other package ways suitable for overseas transportation.
Shipping: Delivering from Qingdao port within 30-45 days after the deposit.
Certificates |
We are professional manufacturer for beer brewery equipment. We have attained ISO9001,CE,UL TUV certifications, and most of our customers chooce CE certification. We offer super quality, competitive price, and the best services.

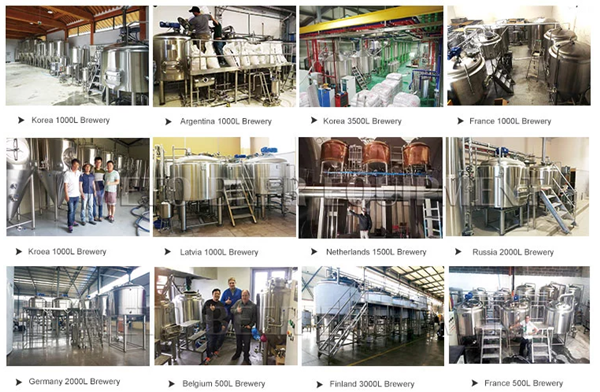

Customer show |
