1000L 2/3/4 vessel steam heated commercial beer brewing equipment for sale
Home » Brewery Equipment » Beer brewery equipment » 1000L 2/3/4 vessel steam heated commercial beer brewing equipment for sale

Product Detail

Share to:

1000L 2/3/4 vessel steam heated commercial beer brewing equipment for sale

The beer brewing equipment is widely used in pub, laboratory, home. The configuration is flexible depending on different working efficiency. So it can meet your needs perfectly.

Quantity:
  • DGET-1500L
  • DEGONGET
  • 8438400000

1000L micro beer brewery equipment contains malt miller, brewhouse, fermenter, maturation tank, CIP system, Chiller, glycol water tank, control box and spare parts. Brewhouse system is the heart of a set of brewery system. Our brewery equipment has been CE ISO TUV approved. It’s completely custom built so your questions and requirements are welcomed. With years of development, we have been focusing on optimizing our brewery equipment and thriving to be the leader in the industry.


A set of 1000L brewery system including brewhouse, hot water tank and fermenters.

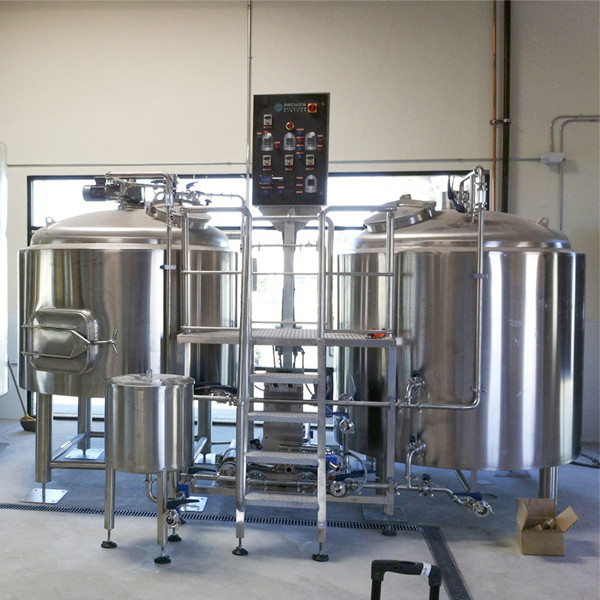

Brewhouse of 1000L brewery system



Mash/Lauter tun

  • stainless steel grist hydrator w/ hot & cold hydration inlet

  • Upper and lower jackets(hot water or steam)

  • Heavy duty false bottom with pillar support system

  • CIP spray nozzles under false bottom

  • Multiple wort drain locations

  • Fully insulated vessel

  • Food grade sanitary stainless steel

  • SS CIP high-low rotary spray ball with 360 degree of coverage

  • Interior light

  • Sparge  ring assembly

  • Top manhole (tempered glass)

  • Side manway for automatic spent grain out process

  • Automatic variable speed rake system and spent grain plow


Kettle/Whirlpool tank

  • Upper and lower steam jackets

  • Tangential whirlpool inlet

  • Fully insulated vessel

  • Stainless steel

  • SS CIP high-low rotary spray ball with 360 of coverage

  • Top manhole (Tempered glass)

  • Interior light


Wort pump

  • ABB food grade stainless steel wash-down pump

  • VFD speed control


Whirlpool pump

  • ABB food grade stainless steel wash-down pump

  • VFD speed control


Wort grant

  • Stainless steel cylinder

  • Total wort volume approx 11 gallons

  • Sight level glass

  • Isolation valve

  • Drain valve

  • All sanitary tri-clamp connection


Wort aeration assembly

  • Stainless steel pipe assembly

  • Aeration stone

  • Built in sight glass

  • Sanitary tri-clamp connections

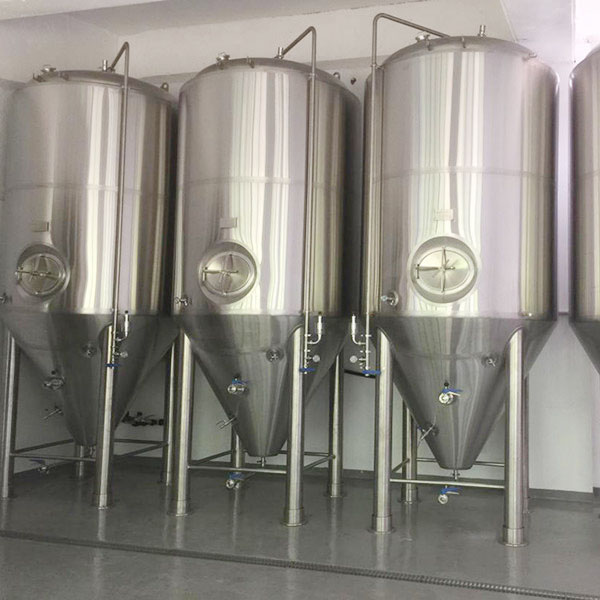

Fermentation system

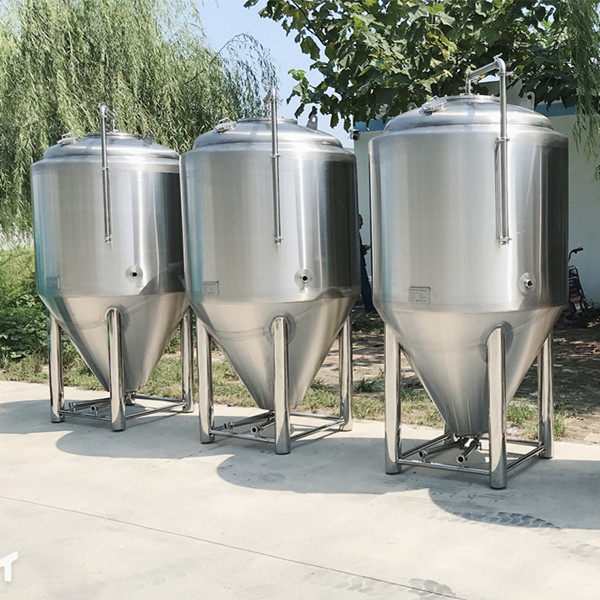

Fermenter

  • Stainless steel 304 sanitary construction

  • 100% TIG welded and sanitary polished

  • Design pressure: 1.5-2 bar, test pressure: 3bar

  • 4 heavy duty stainless steel legs with adjustable height and leveling footpads

  • Interior shell: 304 stainless steel , thickness is 3 mm

  • Interior is 2B and exterior finish bright polish, sanitary surface

  • Tri-clamp sanitary fitting

  • Vacuum & pressure relief valve

  • Pressure gauge

  • Thermometer gauge

  • Sample valve

  • Lifting lugs

  • Ladder hooks, also designed to hold brewers hose when not is use

  • Side manhole

  • CIP arm and rotary spray ball 360 degree of coverage

  • Dual zone cooling jacket with glycol inlet and outlet

  • Rotation racking arm

  • Dry hopping hole

  • Thermo-well (Temperature sensor is also included)

Accessories


More infomation of brewery equipment


1.Electric power: It can be customized according to customer’s local condition.Such as 220V,230V,380V,430V; 50HZ or 60HZ;3 phases or single phase.

2.Price: Every customer has different requirement,so we need to confirm your requirement first,then give you price.Such as some customer require steam heating,some customer require electric heating;Some customer require 2 vessels brewhouse and some customer require 3 vessels brewhouse;Some customer require top manhole for fermentation tank and some customer require side manhole.So even both 1000L equipment,there price are different.So we need to confirm your detailed requirement first.

3.Why is my company more professional?: We have sold many equipment to EURO.We can give you our customer’s contact information,you can listen to their advice or visit their brewery.

4. What should I do if I am a newer to the beer brewing industry?: We will dispatch engineer to install equipment and teach you how to brew beer freely.
