DEGT-1000L/10BBL
DEGT
8438400000
The fermentation system consists of multiple fermentation tanks.The inner and the outer are all made of stainless steel304,Tank interlayer is filled with polyurethane for insulation.According to different types of beer fermentation processes, the length of the fermentation cycle of craft beer in the fermentation section is also different, ranging from ten days to more than half a year.
1000L fermentation tanks
Material Inner (SUS304)thickness: 3.0mm; Outer(SUS304)thickness:2.0mm
External-Jacket(SUS304) thickness: 1.5mm;
Oval head cone bottom, thickness: 3.0mm;
Surface: Finish2B – cold-rolled, annealed, pickled;
Inner surface treatment: welds grind to Ra 0.6μm (attached 360 degree Omni cleaning ball);
Mirror surface finish inside;
100% TIG welding with pure argon gas shield;
Insulation: Polyurethane-thickness 100 mm;
Equipment with : cone 60°resist compression design,dripping 10.Temperature drop;
Cleaning System: All-round cleaning;
Control Method:temperature control,voltage-controlled and hand automatic control;
Vessel Pressure: test pressure 3 bar, working pressure 1.5 bar.

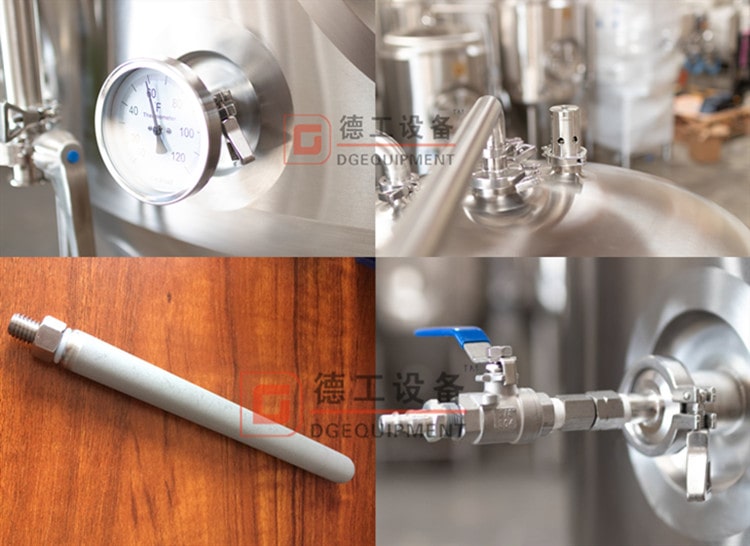

Fermentation tank details
Adopts SUS304 stainless steel fine polished process, outsider stainless steel polishing, have three connestion mouths. Adding yeast sight glasses, aseptic air mouth, and wort pipe connection mouth.
Yeast adding tank
Axial fan motor for low noide.low power.strong wind force.
Original host,large cooling capacity
Tight structure,convenient for package and transportation.
Glycol chiller
1. Our advantage
Own factory, Fine workmanship, Durable equipment, Beautiful appearance, Price concessions, Simple operation
2. Our certificate
Our equipment is coming with certifications of PED and our company is TUV approved. We use CE approved components for customers. The quality, specification and function all meet the treaty of contract.
3. Our service
We can provide engineers to help you install the equipment, and we can also provide winemakers to help you solve technical problems.
Standard packing:
1.Cord ,film membrane
2.Firm membrane, wood box for free fumigation
Transport: by sea
1.We put your order into our tight production schedule to ensure the punctual delivery time.
2.Production or inspection report before your order packed.
3.Shipping notice/ insurance to you as soon as your order is shipped.
If you have needs for craft brewing equipment, please feel free to contact us, we will be happy to assist you.
The fermentation system consists of multiple fermentation tanks.The inner and the outer are all made of stainless steel304,Tank interlayer is filled with polyurethane for insulation.According to different types of beer fermentation processes, the length of the fermentation cycle of craft beer in the fermentation section is also different, ranging from ten days to more than half a year.
1000L fermentation tanks
Material Inner (SUS304)thickness: 3.0mm; Outer(SUS304)thickness:2.0mm
External-Jacket(SUS304) thickness: 1.5mm;
Oval head cone bottom, thickness: 3.0mm;
Surface: Finish2B – cold-rolled, annealed, pickled;
Inner surface treatment: welds grind to Ra 0.6μm (attached 360 degree Omni cleaning ball);
Mirror surface finish inside;
100% TIG welding with pure argon gas shield;
Insulation: Polyurethane-thickness 100 mm;
Equipment with : cone 60°resist compression design,dripping 10.Temperature drop;
Cleaning System: All-round cleaning;
Control Method:temperature control,voltage-controlled and hand automatic control;
Vessel Pressure: test pressure 3 bar, working pressure 1.5 bar.
Fermentation tank details
Adopts SUS304 stainless steel fine polished process, outsider stainless steel polishing, have three connestion mouths. Adding yeast sight glasses, aseptic air mouth, and wort pipe connection mouth.
Yeast adding tank
Axial fan motor for low noide.low power.strong wind force.
Original host,large cooling capacity
Tight structure,convenient for package and transportation.
Glycol chiller
1. Our advantage
Own factory, Fine workmanship, Durable equipment, Beautiful appearance, Price concessions, Simple operation
2. Our certificate
Our equipment is coming with certifications of PED and our company is TUV approved. We use CE approved components for customers. The quality, specification and function all meet the treaty of contract.
3. Our service
We can provide engineers to help you install the equipment, and we can also provide winemakers to help you solve technical problems.
Standard packing:
1.Cord ,film membrane
2.Firm membrane, wood box for free fumigation
Transport: by sea
1.We put your order into our tight production schedule to ensure the punctual delivery time.
2.Production or inspection report before your order packed.
3.Shipping notice/ insurance to you as soon as your order is shipped.
If you have needs for craft brewing equipment, please feel free to contact us, we will be happy to assist you.
